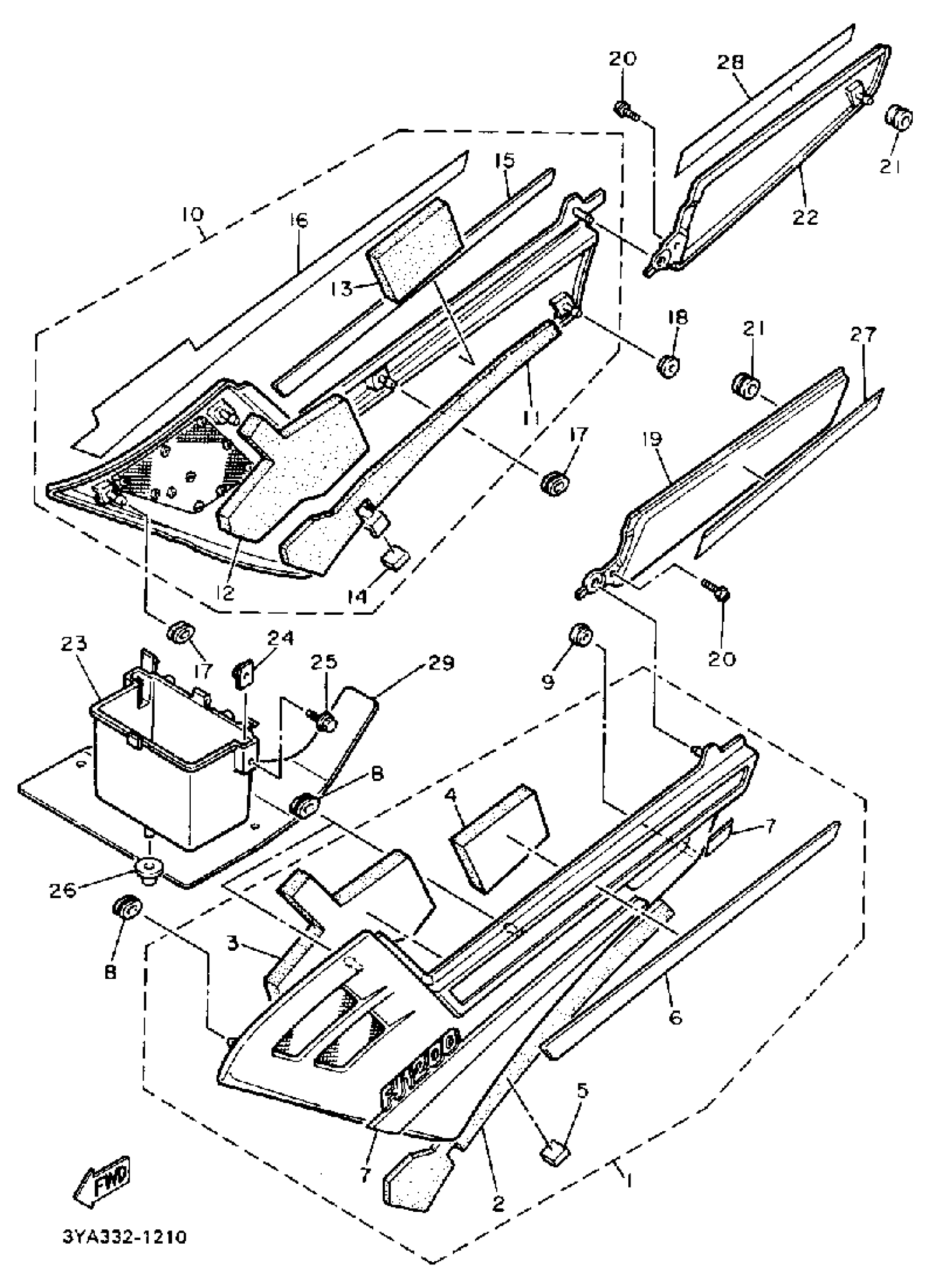

Yamaha FJ1200BC (FJ1200 CA) 1991 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3XW-Y2171-00-2X

Unavailable

2

. DAMPER

3XW-21746-00-00

Unavailable

3

. DAMPER, LOCATING 1

3XW-21778-00-00

Unavailable

4

. DAMPER, LOCATING

3XW-2177M-00-00

Unavailable

5

DAMPER 5

1AE-2837J-00-00

Unavailable

6

. MOLD, SIDE COVER 1

3XW-2171L-00-00

Unavailable

7

. GRAPHIC SET 1

3XW-2173L-00-00

Unavailable

8

GROMMET(41Y)

90480-01401-00

$8.49

9

GROMMET

90480-13014-00

$8.49

10

COVER, SIDE 2

3XW-Y2172-00-2X

Unavailable

11

. DAMPER

36Y-21747-01-00

Unavailable

12

. DAMPER, LOCATING 2

3XW-21779-00-00

Unavailable

13

. SEAL 2

3XW-21735-00-00

Unavailable

14

DAMPER 5

1AE-2837J-00-00

Unavailable

15

. MOLD, SIDE COVER 2

3XW-2171M-00-00

Unavailable

16

. GRAPHIC 5

3XW-2174J-00-00

Unavailable

17

GROMMET(41Y)

90480-01401-00

$8.49

18

GROMMET

90480-13014-00

$8.49

19

COVER, SIDE 3

36Y-21731-00-GE

Unavailable

20

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

21

GROMMET (1E5)

90480-13163-00

Unavailable

22

COVER, SIDE 4

36Y-21741-00-GE

Unavailable

23

BOX

3XW-21245-00-00

Unavailable

24

PLATE

31A-14477-10-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

GROMMET (31A)

90480-22362-00

Unavailable

27

GRAPHIC 3

3XW-2174G-00-00

Unavailable

28

GRAPHIC 4

3XW-2174H-00-00

Unavailable

29

PANEL 2

3XW-2172G-00-00

Unavailable
