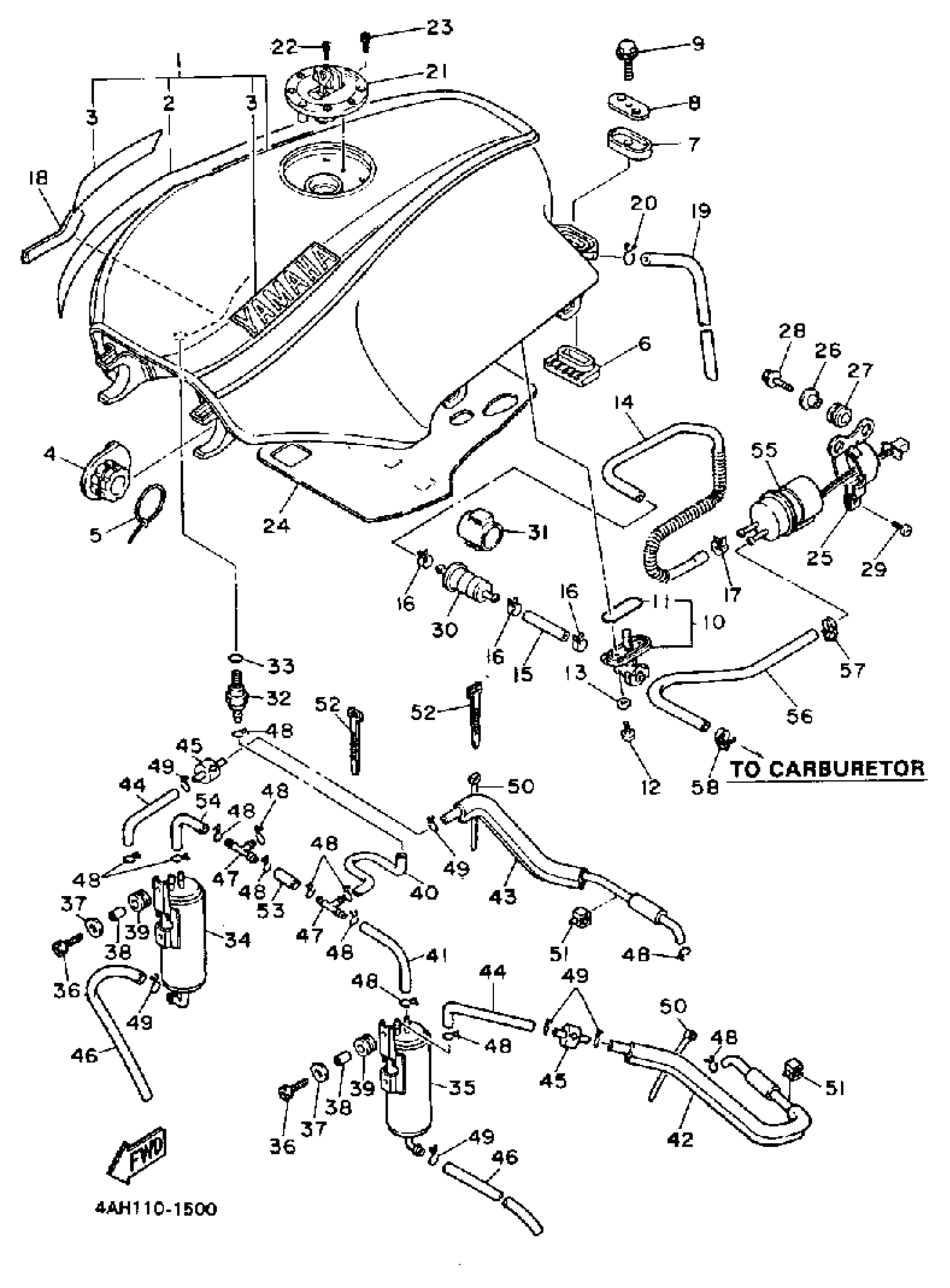

Yamaha FJ1200BC (FJ1200 CA) 1991 FUEL TANK CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

FUEL TANK

3SK-24110-00-07

Unavailable

2

. GRAPHIC, FUEL TNK 1

3XW-24244-00-00

Unavailable

3

EMBLEM, YAMAHA

99243-00160-00

$12.49

4

DAMPER, LOCATING 1

36Y-24181-01-00

Unavailable

5

BAND

1UA-82591-00-00

$4.78

6

DAMPER, LOCATING 2

36Y-24182-00-00

Unavailable

7

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

8

WASHER, SPECIAL

36Y-24186-00-00

Unavailable

9

BOLT, FLANGE

95817-06030-00

$4.29

10

FUEL COCK ASSY 1

26H-24500-00-00

Unavailable

11

GASKET, BODY

214-24512-00-00

$30.99

12

SCREW 256241430000

90149-06011-00

$5.60

13

WASHER, PLATE(3MB)

90202-05187-00

$1.38

14

FUEL PIPE ASSEMBLY

3CV-24310-00-00

Unavailable

15

HOSE (L83)

90445-136F8-00

$8.49

16

CLIP (7K7)

90467-11044-00

Unavailable

17

CLIP(42X)

90467-10091-00

Unavailable

18

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

19

HOSE (L730)

90445-105K7-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable

21

CAP ASSY

4HM-24602-01-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

23

BOLT, SOCKET

91314-05010-00

Unavailable

24

SEAL, AIR SHROUD 1

3CV-24125-00-00

Unavailable

25

BRACKET, FUEL PUMP

3CV-24491-10-00

Unavailable

26

COLLAR(42G)

90387-062L2-00

Unavailable

27

GROMMET (1E5)

90480-13163-00

Unavailable

28

BOLT, FLANGE

95817-06016-00

Unavailable

29

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

30

FILTER ASSY

1FK-24560-10-00

Unavailable

31

BRACKET, FILTER

1FK-24566-00-00

Unavailable

32

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

33

O-RING (4G0)

93210-11453-00

Unavailable

34

UNAVAILABLE IN PRICE BOOK

(1WJ-24170-00-00)

Unavailable

35

CANISTER ASSEMBLY

1WJ-24170-50-00

Unavailable

36

BOLT,SOCKET

91317-06016-00

Unavailable

37

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

38

COLLAR(47X)

90387-060G7-00

Unavailable

39

GROMMET

90480-12529-00

Unavailable

40

PIPE, FUEL 1

47M-24311-01-00

Unavailable

41

HOSE (L120)

90445-113E8-00

Unavailable

42

PIPE 2

1WJ-24312-01-00

Unavailable

43

PIPE 5

1WJ-24315-00-00

Unavailable

44

PIPE 3

1WJ-24313-01-00

Unavailable

45

VALVE, OUTER VENT CONTROL

1WJ-14895-00-00

Unavailable

46

HOSE (L370)

90445-112E1-00

Unavailable

47

PIPE, JOINT

3H3-24376-00-00

Unavailable

48

CLIP

90467-100A1-00

Unavailable

49

CLIP(1JH)

90467-11106-00

Unavailable

50

BAND

1UA-82591-00-00

$4.78

51

CLAMP (1A0)

90464-08020-00

Unavailable

52

CLAMP(MF1)

90464-15152-00

Unavailable

53

HOSE (L120)

90445-113E8-00

Unavailable

54

HOSE (L120)

90445-113E8-00

Unavailable

55

FUEL PUMP COMP.

3CV-13907-00-00

Unavailable

56

HOSE (L300)

90445-126E7-00

Unavailable

57

CLIP(3BM)

90467-10135-00

Unavailable

58

CLIP(3BM)

90467-10135-00

Unavailable
