- FJ1200BC (FJ1200 CA) 1991
FRONT FORK

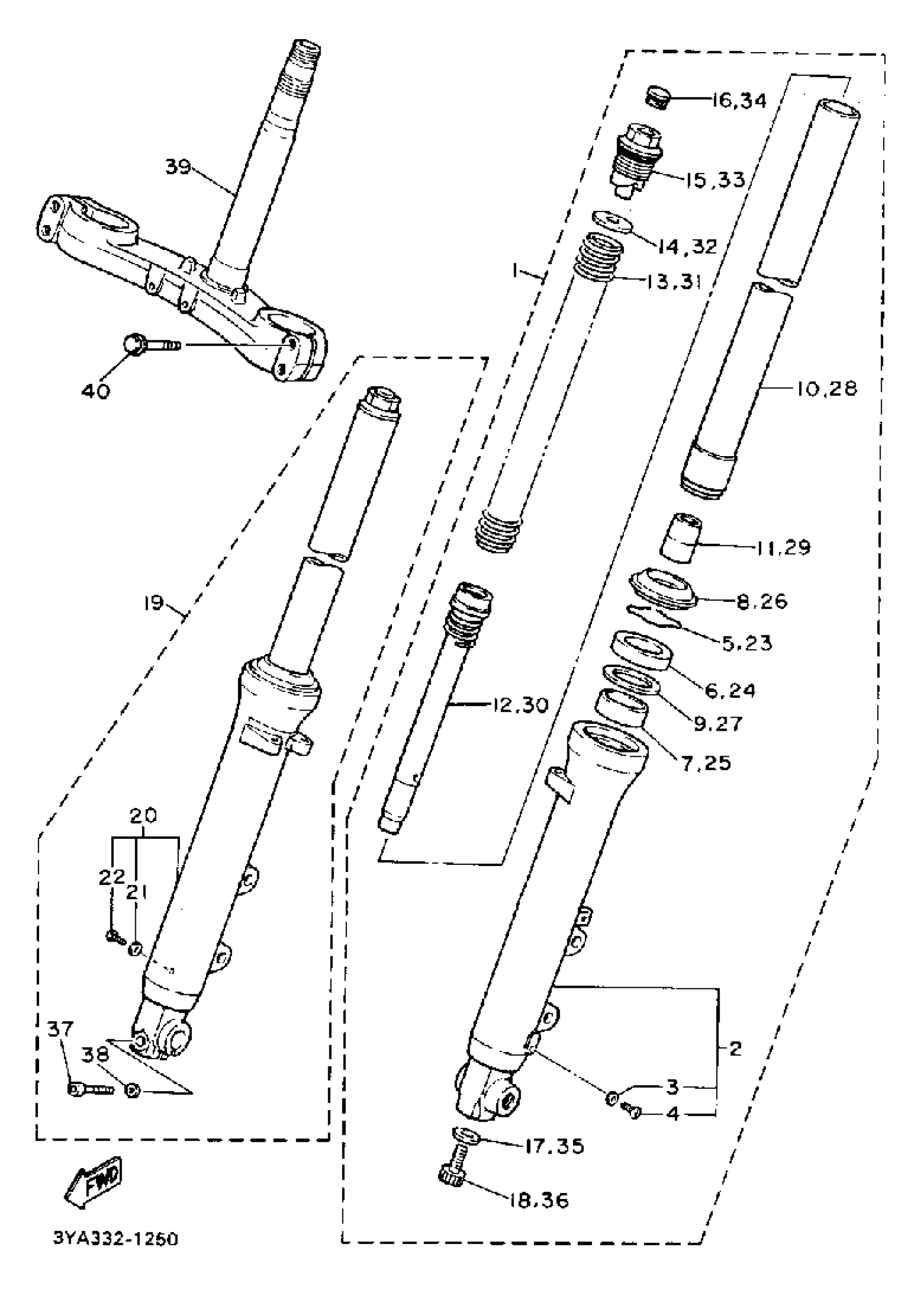

Yamaha FJ1200BC (FJ1200 CA) 1991 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
3XW-23102-01-00
Unavailable
2
. TUBE, OUTER 1
3XW-23126-00-00
Unavailable
3
TUBE, OUTER 1
(196-23126-40-81)
Unavailable
4
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
8
SEAL, DUST
3XV-23144-50-00
Unavailable
10
INNER TUBE 1
3XW-23110-01-00
Unavailable
11
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
12
. CYLINDER, FRTFRK FRONT FORK
3XW-23170-00-00
Unavailable
13
. SPRING, FRONT FORK
3XW-23141-00-00
Unavailable
14
. WASHER, SPRING UPR
3XW-23149-00-00
Unavailable
15
. BOLT, CAP
3XW-23111-00-00
Unavailable
16
. CAP, FRONT FORK
3GM-23168-00-00
Unavailable
17
GASKET
4V4-23158-L0-00
Unavailable
18
BOLT
4V4-23181-L0-00
Unavailable
19
FRONT FORK ASSY (R.H)
3XW-23103-01-00
Unavailable
20
. TUBE, OUTER 2
3XW-23136-00-00
Unavailable
21
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
22
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
26
SEAL, DUST
3XV-23144-50-00
Unavailable
28
INNER TUBE 1
3XW-23110-01-00
Unavailable
29
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
30
. CYLINDER, FRTFRK FRONT FORK
3XW-23170-00-00
Unavailable
31
. SPRING, FRONT FORK
3XW-23141-00-00
Unavailable
32
. WASHER, SPRING UPR
3XW-23149-00-00
Unavailable
33
. BOLT, CAP
3XW-23111-00-00
Unavailable
34
. CAP, FRONT FORK
3GM-23168-00-00
Unavailable
35
GASKET
4V4-23158-L0-00
Unavailable
36
BOLT
4V4-23181-L0-00
Unavailable
37
BOLT, SOCKET
91317-08045-00
Unavailable
38
WASHER PLATE 141181390000
90201-08085-00
Unavailable
39
UNDER BRACKET
3XW-23340-00-00
Unavailable
40
BOLT, FLANGE
95814-08040-00
Unavailable
