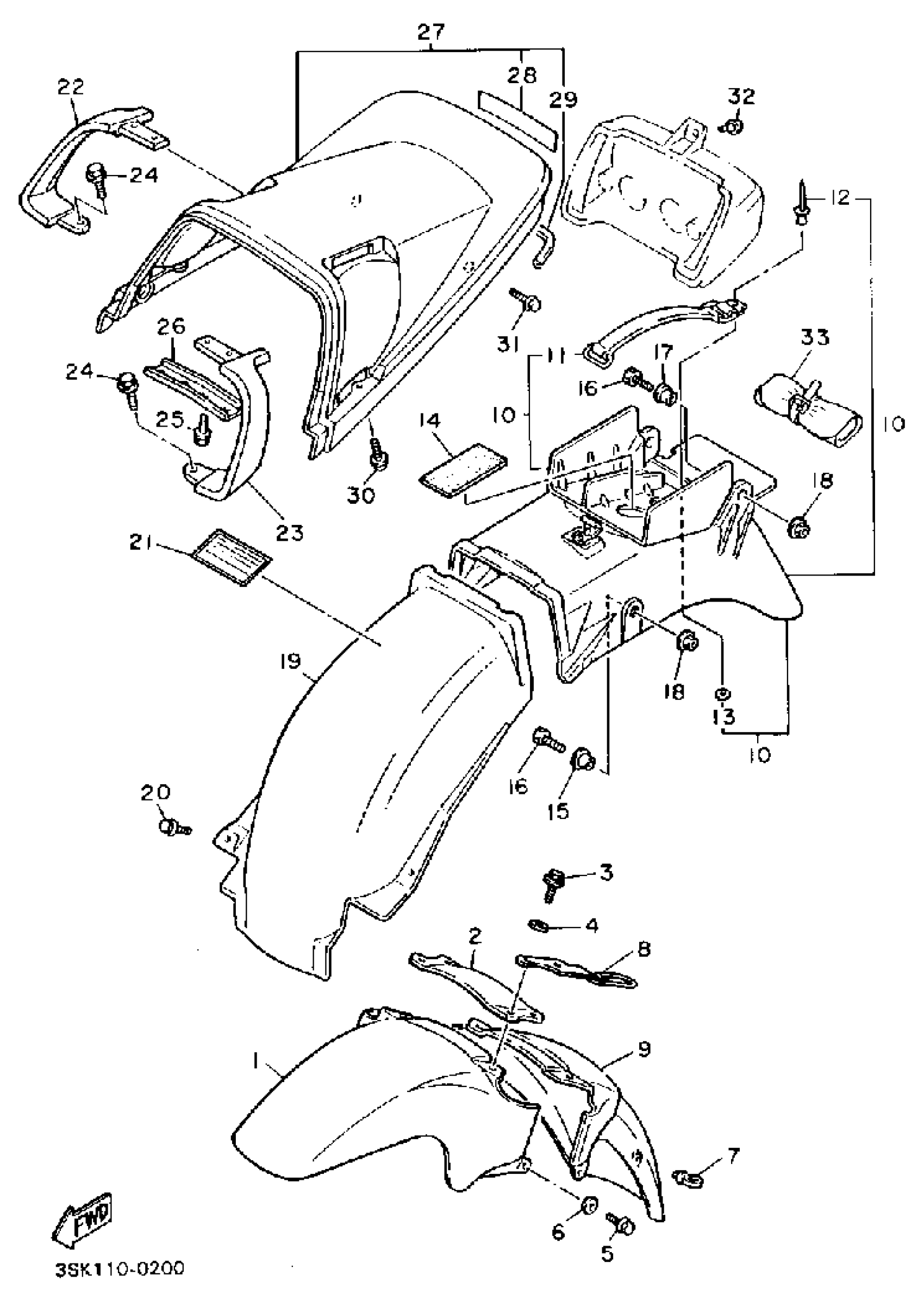

Yamaha FJ1200BC (FJ1200 CA) 1991 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

36Y-21511-01-P1

Unavailable

2

BRACKET, FENDER

36Y-21512-00-00

Unavailable

3

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

4

. WASHER, PLATE

90201-06050-00

Unavailable

5

. BOLT, FLANGE

95027-06020-00

Unavailable

6

WASHER, PLATE (4L0)

90201-062A8-00

$8.49

7

GUIDE, WIRE

1A8-21518-00-00

$7.99

8

HOLDER

3CV-21596-00-00

Unavailable

9

FENDER, FRONT 2

36Y-21556-01-P1

Unavailable

10

REAR FENDER

47M-W2161-01-00

Unavailable

11

BAND, TOOL

36Y-21376-00-00

Unavailable

12

RIVET, BLIND (8K1)

90267-40076-00

$8.49

13

WASHER, PLAIN (646)

92990-04600-00

$5.99

14

. SEAT 2

26H-2848K-00-00

Unavailable

15

COLLAR (8G8)

90387-06648-00

$8.49

16

BOLT, HEXAGON

97017-06020-00

Unavailable

17

COLLAR (8G8)

90387-06648-00

$8.49

18

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

19

GUARD, MUD

36Y-21629-00-00

Unavailable

20

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

21

PLATE, EPA CAL 2

4AH-2179R-00-00

Unavailable

21

PLATE, EPA U49

4AH-2179V-00-00

Unavailable

22

STAY, REAR

1TX-21645-00-00

Unavailable

23

STAY, REAR

1TX-21644-00-00

Unavailable

24

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

25

BOLT, FLANGE

95817-06014-00

Unavailable

26

STAY 1

1TX-2164F-00-00

Unavailable

27

COVER, REAR FENDER

1TX-Y2165-70-P1

Unavailable

28

EMBLEM, YAMAHA

99243-00080-00

Unavailable

29

MOLD 2

1TX-28346-00-00

Unavailable

30

SCREW, WITH WASHER

90159-05044-00

Unavailable

31

BOLT, WITH WASHER

90119-06242-00

Unavailable

32

DAMPER 2

36Y-21639-00-00

Unavailable

33

TOOL KIT

3XW-28100-00-00

Unavailable
