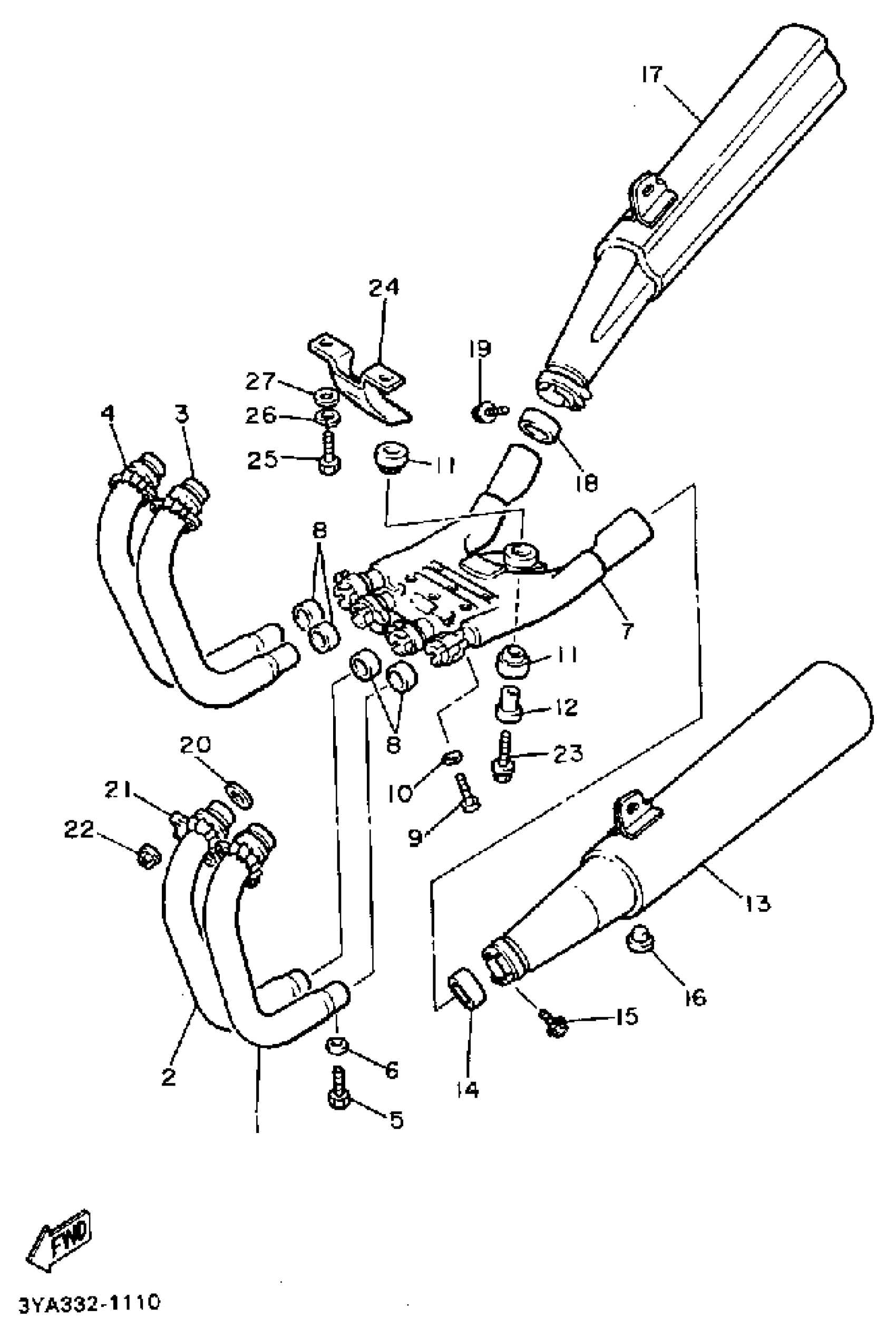

Yamaha FJ1200BC (FJ1200 CA) 1991 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
1TX-14611-00-00
Unavailable
2
PIPE, EXHAUST R
1TX-14621-00-00
Unavailable
3
PIPE, EXHAUST 3
1TX-14631-00-00
Unavailable
4
PIPE, EXHAUST 4
1TX-14641-00-00
Unavailable
7
JOINT, EXHAUST L
1TX-14615-10-00
Unavailable
8
GASKET, SILENCER
3XW-14755-00-00
Unavailable
10
.. WASHER, PLATE
92990-08600-00
Unavailable
13
MUFFLER L
4AH-14711-00-00
Unavailable
16
STOPPER, MAIN STAND
371-27114-00-00
Unavailable
17
MUFFLER R
4AH-14721-00-00
Unavailable
19
WASHER (1T1)
90201-08649-00
Unavailable
19
BOLT, HEXAGON
97017-08025-00
Unavailable
20
GASKET, EXHAUST PIPE
4BE-14613-00-00
Unavailable
21
NUT, RING
36Y-14612-00-00
Unavailable
22
NUT, SELF-LOCKING
90185-08169-00
Unavailable
23
BOLT, FLANGE
95814-10040-00
Unavailable
24
STAY, MUFFLER
36Y-14791-00-00
Unavailable
25
BOLT, HEXAGON
97017-08025-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
.. WASHER, PLATE
92990-08600-00
Unavailable
