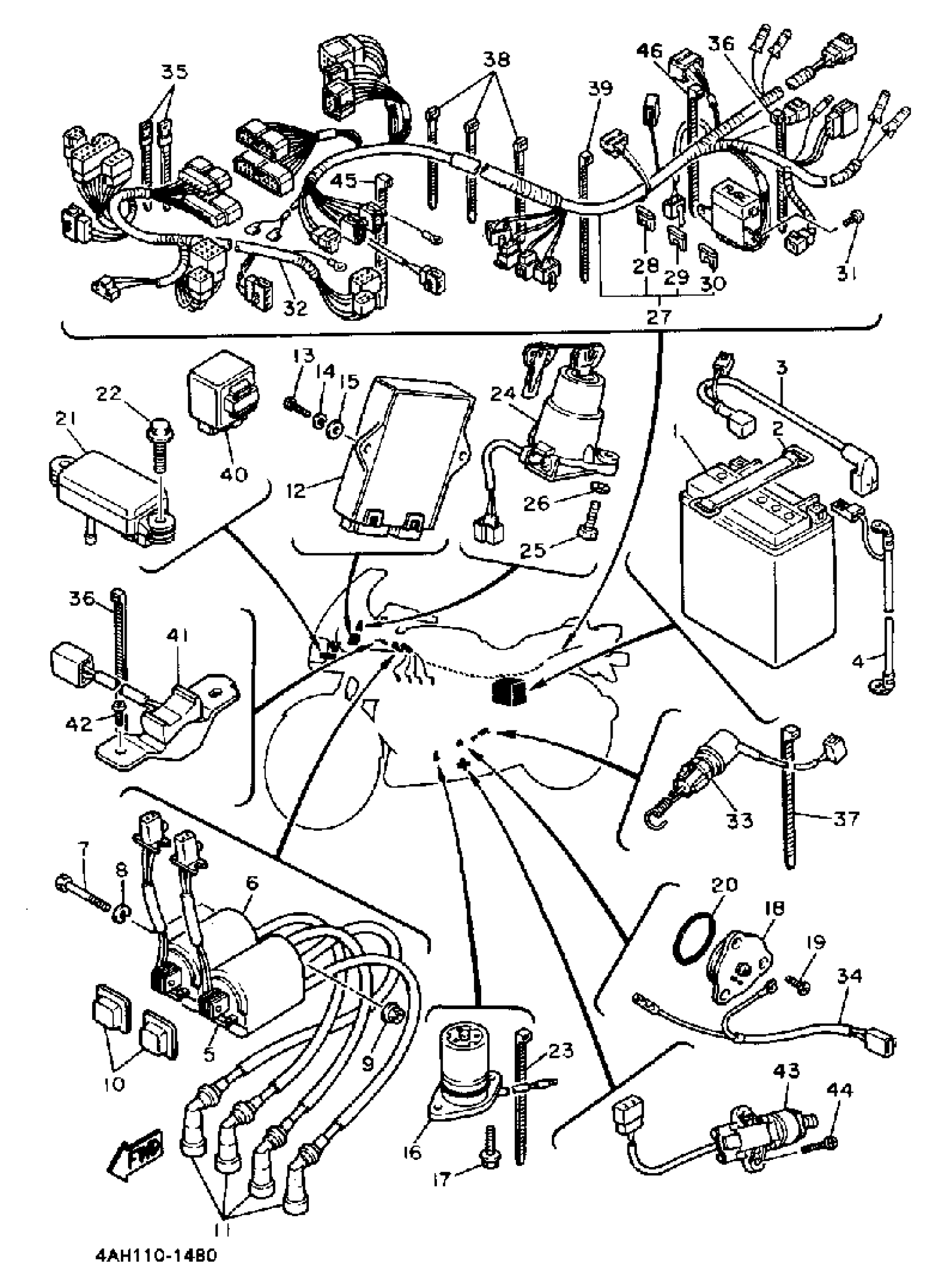

Yamaha FJ1200BC (FJ1200 CA) 1991 ELECTRICAL 2 Diagram

#

Description
Price

1

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

Unavailable

2

BAND, BATTERY

2T4-82131-00-00

$8.99

3

WIRE, PLUS LEAD

3XW-82115-00-00

Unavailable

4

WIRE,MINUS LEAD

3XW-82116-00-00

Unavailable

5

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

6

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

7

BOLT(62J)

97013-06070-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

DAMPER, IGNITION COIL

4U8-82317-00-00

Unavailable

11

PLUG CAP ASSY

3NS-82370-00-00

$37.99

12

IGNITOR UNIT ASSEMBLY 1

3SK-82305-01-00

Unavailable

13

SCREW, PAN

98507-06014-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

Unavailable

17

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

18

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

19

SCREW, FLAT

98707-05012-00

Unavailable

20

O-RING (371)

93210-29196-00

Unavailable

21

SENSOR, PRESSURE

22N-82380-10-00

Unavailable

22

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable

24

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

$2.80

27

WIRE HARNESS ASSEMBLY

4AH-82590-00-00

Unavailable

28

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

29

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

30

FUSE (10A)

42X-82151-00-00

Unavailable

31

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

32

WIRE HARNESS ASSEMBLY 2

4AH-82580-00-00

Unavailable

33

STOP SWITCH ASSEMBLY

3XW-82530-01-00

Unavailable

34

WIRE, SUB LEAD

3XW-82509-00-00

Unavailable

35

CLAMP

5Y9-12491-00-00

Unavailable

36

BAND

1UA-82591-00-00

Unavailable

37

CLAMP(3XW)

90464-35132-00

Unavailable

38

CLAMP(MF1)

90464-15152-00

Unavailable

39

CLAMP

90464-20258-00

Unavailable

40

CONTROL UNIT ASSY

42H-85740-00-00

Unavailable

41

SWITCH

3TJ-83964-10-00

Unavailable

42

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

43

SWITCH, SIDE STAND

3LD-82566-B1-00

Unavailable

44

SCREW, PAN HEAD

98507-05014-00

Unavailable

45

CLAMP(4FM)

90464-15195-00

Unavailable

46

CLAMP(4FM)

90464-15195-00

Unavailable
