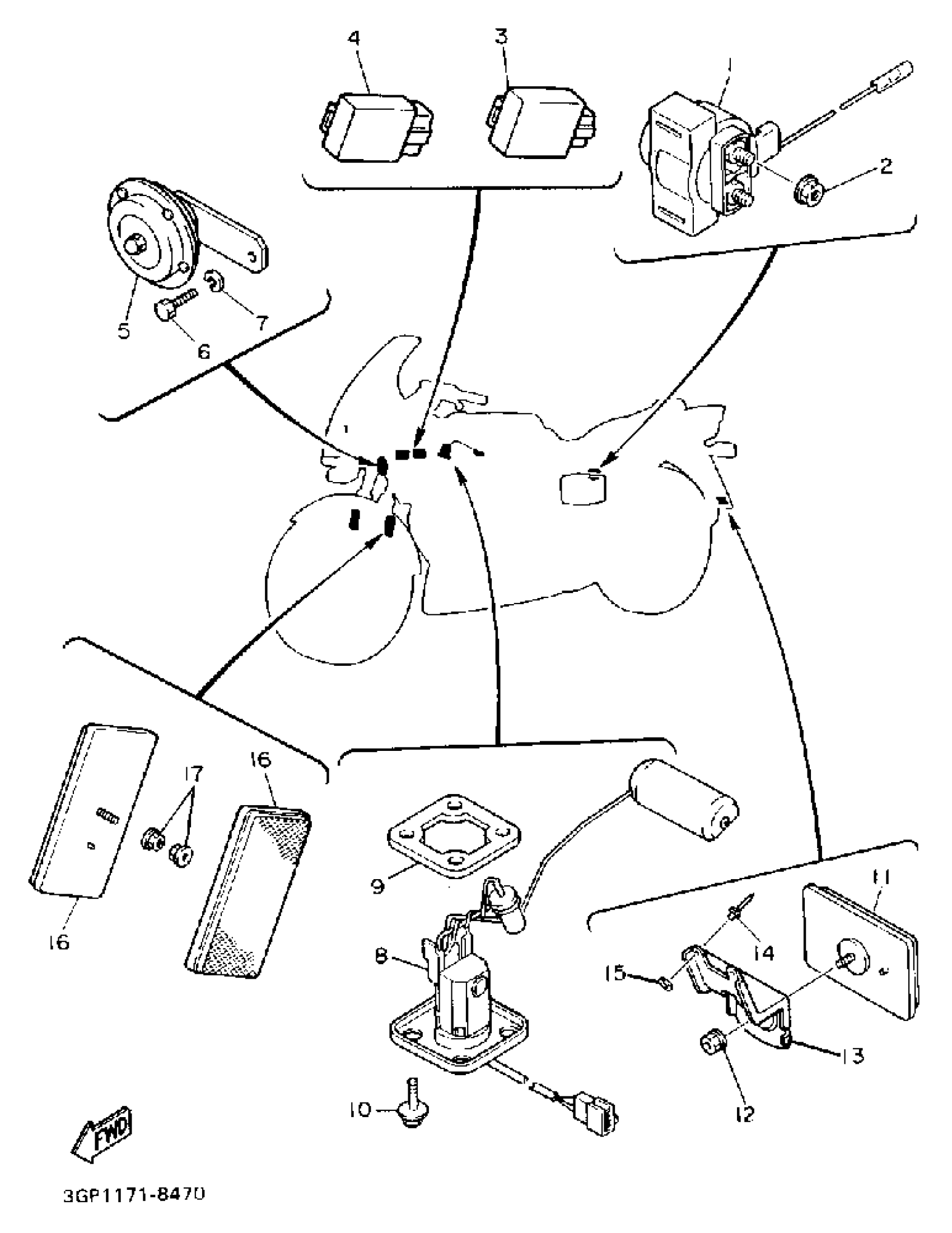

Yamaha FJ1200BC (FJ1200 CA) 1991 ELECTRICAL 1 Diagram

#

Description
Price

1

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

2

NUT, FLANGE(7NB)

95780-06500-00

$1.88

3

RELAY ASSY

2UJ-81950-02-00

$55.39

4

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

5

HORN

4V8-83371-20-00

Unavailable

6

BOLT, HEXAGON

97017-08016-00

$5.79

7

WASHER(JN5)

92907-08100-00

$5.59

8

SENDER UNIT ASSEMBLY, FUEL METER

36Y-85752-03-00

Unavailable

9

GASKET, SENDER UNIT

5G3-85753-00-00

$14.07

10

BOLT, WITH WASHER

90119-05071-00

$6.09

11

REAR REFLECTOR ASSY

4KM-85130-00-00

$18.99

12

NUT, FLANGE(3GM)

95707-05500-00

$5.76

13

BRACKET, REFLECTOR 1

47M-85132-00-00

Unavailable

14

RIVET (813)

90267-32070-00

$2.08

15

WASHER,PLAIN

92990-03200-00

$0.28

16

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

17

NUT, FLANGE(3GM)

95707-05500-00

$5.76
