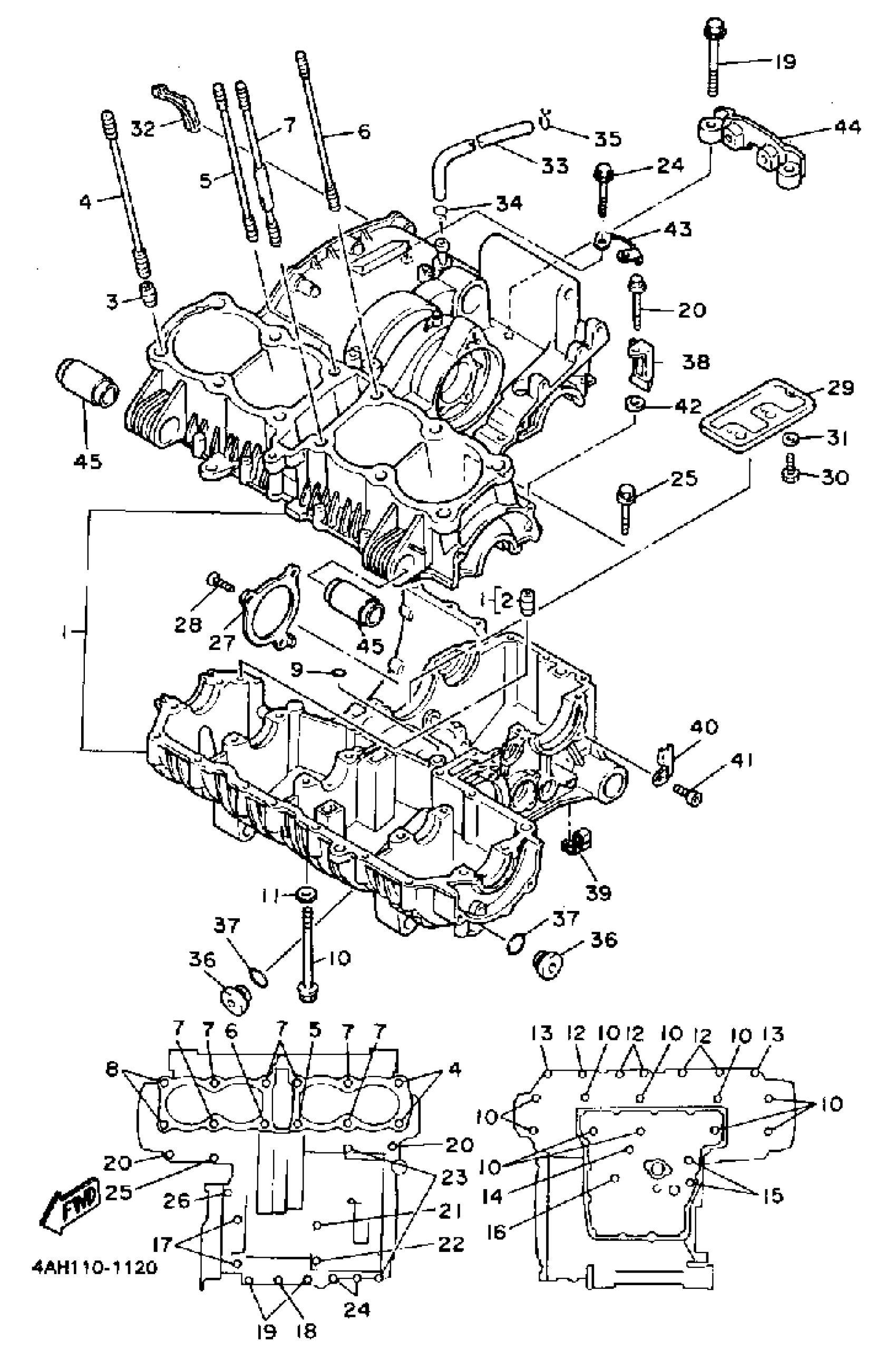

Yamaha FJ1200BC (FJ1200 CA) 1991 CRANKCASE Diagram

#

Description
Price

1

CRKCS, ASY

3XW-15100-09-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIN, DOWEL

99530-14016-00

$3.80

4

BOLT, STUD(3XW)

90116-10563-00

$21.99

5

BOLT, STUD(3BC)

90116-10516-00

$10.49

6

BOLT, STUD(3XW)

90116-10562-00

$11.49

7

BOLT, CYLINDER HOLDING 3

3XW-11363-01-00

$40.99

8

BOLT, CYLINDER HOLDING 4

3XW-11364-01-00

Unavailable

9

O-RING

93210-07438-00

$8.49

10

BOLT, FLANGE

95817-08100-00

$5.60

11

WASHER, PLATE (33N)

90201-094G1-00

$9.49

12

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

13

BOLT, FLANGE(8AB)

95817-10050-00

$7.49

14

BOLT, FLANGE

95816-06110-00

Unavailable

15

BOLT, FLANGE

95817-06095-00

$1.96

16

BOLT, FLANGE

95817-06040-00

Unavailable

17

BOLT, FLANGE

95817-08055-00

Unavailable

18

BOLT, FLANGE

95817-10060-00

Unavailable

19

BOLT, FLANGE

95816-10075-00

Unavailable

20

BOLT, FLANGE

95817-06050-00

Unavailable

21

BOLT, FLANGE

95817-06125-00

Unavailable

22

BOLT, FLANGE

95817-06070-00

Unavailable

23

BOLT, FLANGE

95817-06065-00

Unavailable

24

BOLT, FLANGE

95817-06055-00

Unavailable

25

BOLT, FLANGE

95817-06040-00

Unavailable

26

BOLT, FLANGE

95817-06030-00

Unavailable

27

PLATE, BEARING COVER

36Y-15383-01-00

Unavailable

28

SCREW, COUNTERSUNK (21V)

90151-06025-00

Unavailable

29

PLATE, OIL GUIDE

36Y-15412-00-00

Unavailable

30

BOLT (682)

97095-05010-00

Unavailable

31

WASHER, PLAIN (646)

92990-05600-00

Unavailable

32

GROMMET

1TX-15365-00-00

Unavailable

33

PIPE, BREATHER 1

36Y-11166-00-00

Unavailable

34

CLIP (371)

90467-14015-00

Unavailable

35

CLIP (371)

90467-14015-00

Unavailable

36

PLUG

4H7-15189-00-00

Unavailable

37

O-RING (25G)

93210-20573-00

Unavailable

38

CLAMP

90465-10027-00

Unavailable

39

CLAMP

(90465-08252-00)

Unavailable

40

CLAMP

90465-08056-00

Unavailable

41

BOLT,SOCKET

91317-06010-00

Unavailable

42

WASHER(6TA)

92907-06600-00

Unavailable

43

CLAMP

90462-10145-00

Unavailable

44

BRACKET

3XW-15199-00-00

Unavailable

45

COLLAR

90387-207W3-00

Unavailable
