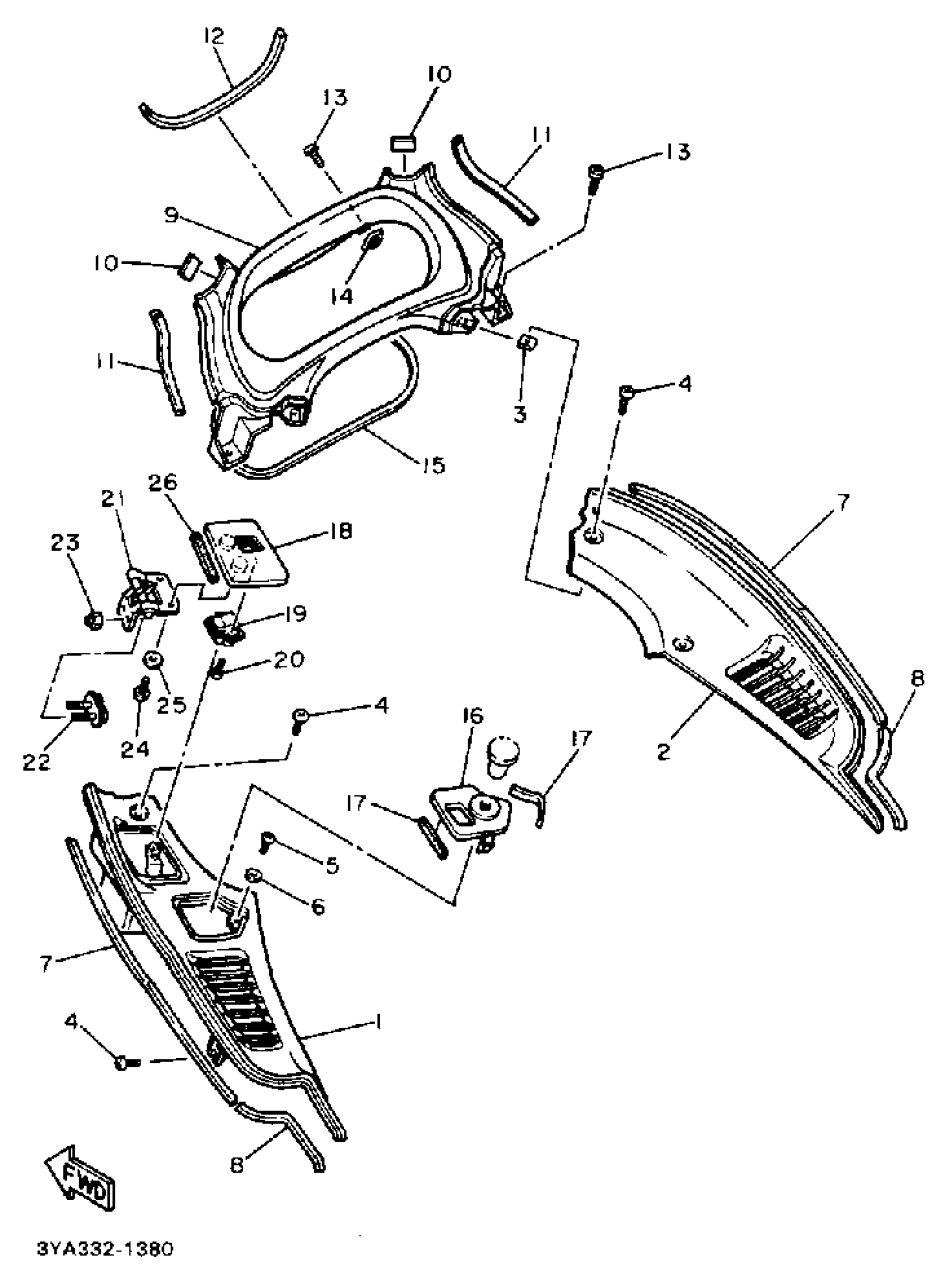

Yamaha FJ1200BC (FJ1200 CA) 1991 COWLING 2 Diagram

#

Description
Price

1

PANEL, INNER 1

3XW-2836K-00-00

Unavailable

2

PANEL, INNER 2

3XW-2836L-00-00

Unavailable

3

NUT, SPRING

90183-051A0-00

$3.81

4

SCREW, BINDING (10V)

90154-05013-00

$5.60

5

SCREW, PAN

98517-05012-00

$4.73

6

WASHER(1RW)

92907-05600-00

$3.78

7

MOULDING 10

1NL-2844U-00-00

Unavailable

8

TRIM

13X-28376-00-00

$15.49

9

PANEL, INNER 5

3XW-2836R-00-00

Unavailable

10

DAMPER 2

51Y-21639-00-00

$6.99

11

TRIM

13X-28376-00-00

$15.49

12

MOLD 6

3XW-2834H-00-00

Unavailable

13

SCREW, BINDING (10V)

90154-05013-00

$5.60

14

NUT, SPRING

90183-051A0-00

$3.81

15

MOLE 4

36Y-28348-00-00

$31.99

16

COVER

1TX-28365-00-00

Unavailable

17

DAMPER 2

1TX-28227-00-00

Unavailable

18

LID 1

3CV-2839K-00-00

Unavailable

19

LOCK ASSY

1HX-21780-01-00

Unavailable

20

SCREW, PAN TAP.2 SLIT

97707-40610-00

Unavailable

21

HINGE 4

3CV-2849E-00-00

Unavailable

22

BRACKET 1

3CV-2836A-00-00

Unavailable

23

NUT, S/L FLANGE

95607-05200-00

Unavailable

24

SCREW, TAPPING

97707-50610-00

Unavailable

25

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

26

DAMPER

3CV-28372-00-00

Unavailable
