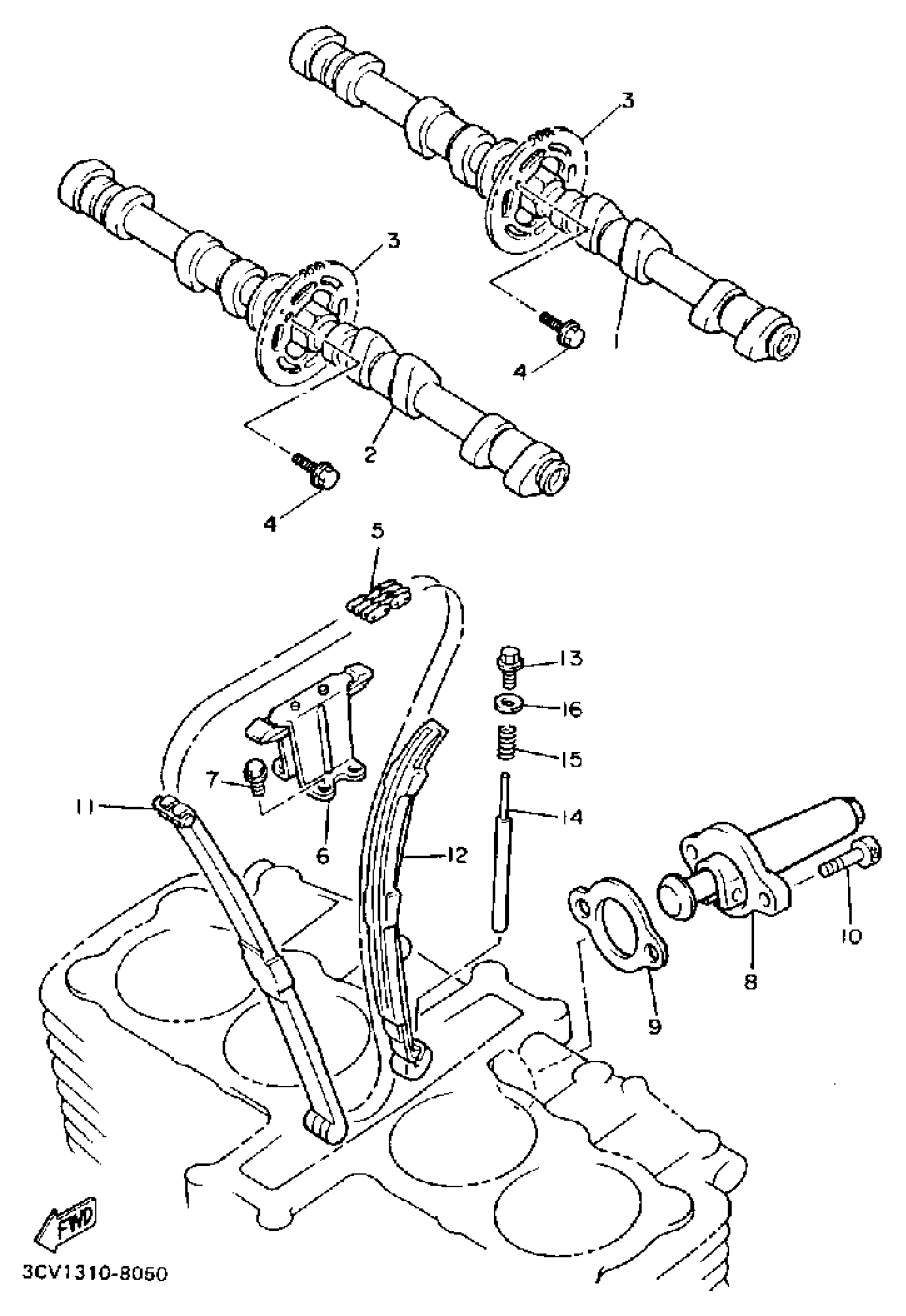

Yamaha FJ1200BC (FJ1200 CA) 1991 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5EA-12171-00-00

Unavailable

2

CAMSHAFT 2

5EA-12181-00-00

$269.99

3

SPROCKET, CAM CHAIN

36Y-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN. CAM (36Y)

94591-05156-00

Unavailable

6

GUIDE, STOPPER 2

5EA-12241-00-00

Unavailable

7

BOLT, WASHER BASED(1TX)

90105-06424-00

Unavailable

8

TENSIONER KIT,CAMCHAIN 1TX-00

99999-02899-00

Unavailable

9

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

10

BOLT,SOCKET

91317-06025-00

$5.60

11

DAMPER, CHAIN 1

36Y-12251-00-00

Unavailable

12

DAMPER, CHAIN 2

36Y-12252-03-00

Unavailable

13

PLUG, STRAIGHT SCREW(36Y)

90340-10108-00

Unavailable

14

PIN (36Y)

90249-04184-00

Unavailable

15

SPRING, COMPRESSION(36Y)

90501-153A2-00

$2.34

16

WASHER, PLATE(481)

90201-10118-00

Unavailable
