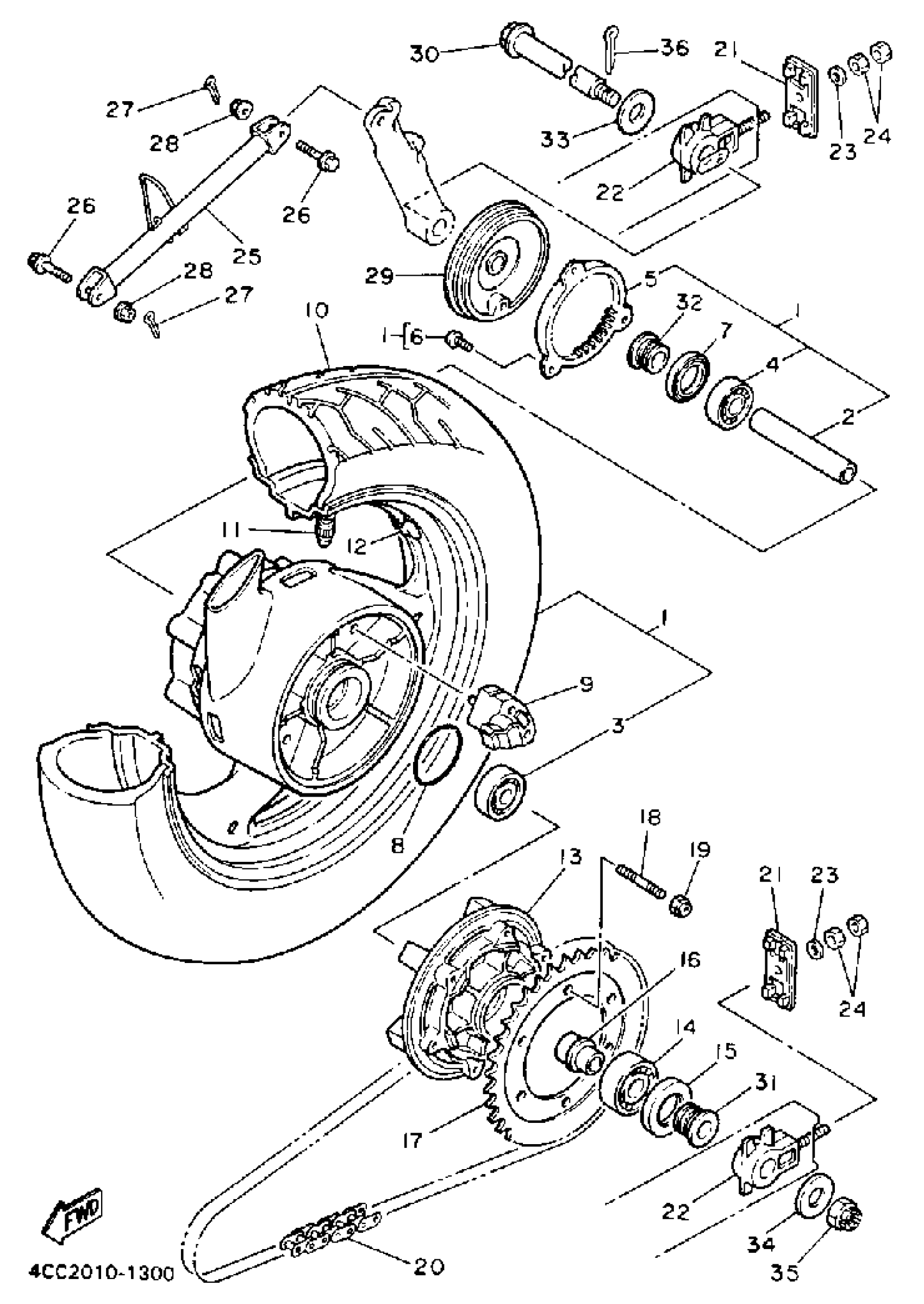

Yamaha FJ1200AEC (FJ1200 CA) 1993 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REARREAR

3YA-W2533-00-WG

Unavailable

2

. SPACER

90560-20373-00

Unavailable

3

BEARING(3BC)

93306-30437-00

$66.99

4

BEARING(3BC)

93306-30437-00

$66.99

5

. ROTOR, SENSOR

3YA-2517G-00-00

Unavailable

6

SCREW, WITH WASHER(2JA)

90159-05155-00

$1.07

7

OIL SEAL(3BC)

93106-30029-00

$15.99

8

O-RING(2HJ)

93210-65752-00

$21.99

9

DAMPER

2GH-25364-00-00

$44.99

10

150/80V16 DUN V250 K275

94115-165X7-00

Unavailable

11

VALVE, RIM(2GH)

93900-00030-00

$16.99

12

BALANCER, WHEEL

5MT-25398-00-00

$17.49

12

BALANCER, WHEEL

5MT-25398-10-00

$17.49

12

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

13

CLUTCH, HUB

36Y-25366-01-00

Unavailable

14

BEARING(3BC)

93306-30562-00

Unavailable

15

OIL SEAL(3BC)

93106-35030-00

Unavailable

16

COLLAR, WHEEL

36Y-25377-00-00

Unavailable

17

SPROCKET, DRIVN 40T

1TX-25440-20-00

Unavailable

18

BOLT, STUD(1TX)

90116-10485-00

Unavailable

19

NUT, SELF-LOCKING

90185-10170-00

Unavailable

20

CHAIN

94581-78110-00

Unavailable

21

END 1

4JH-22174-00-00

Unavailable

22

PULLER, CHAIN 1

3XW-25388-00-00

Unavailable

23

WASHER, PLAIN

92990-08200-00

Unavailable

24

NUT(6L2)

95333-08600-00

Unavailable

25

BAR, TENSION

3YA-25371-00-00

Unavailable

26

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

27

PIN, COTTER

91490-20025-00

Unavailable

28

NUT, FLANGE

95704-08500-00

Unavailable

29

HOUSING, SENSOR REAR

3YA-2537A-01-WG

Unavailable

30

AXLE, WHEEL

36Y-25381-00-00

Unavailable

31

COLLAR(3BC)

90387-203X0-00

Unavailable

32

COLLAR(3BC)

90387-202X9-00

Unavailable

33

WASHER, PLATE

90201-200P6-00

Unavailable

34

WASHER, PLATE

90201-180P5-00

Unavailable

35

NUT, CASTLE

90171-18043-00

Unavailable

36

PIN, COTTER

91490-40045-00

Unavailable
