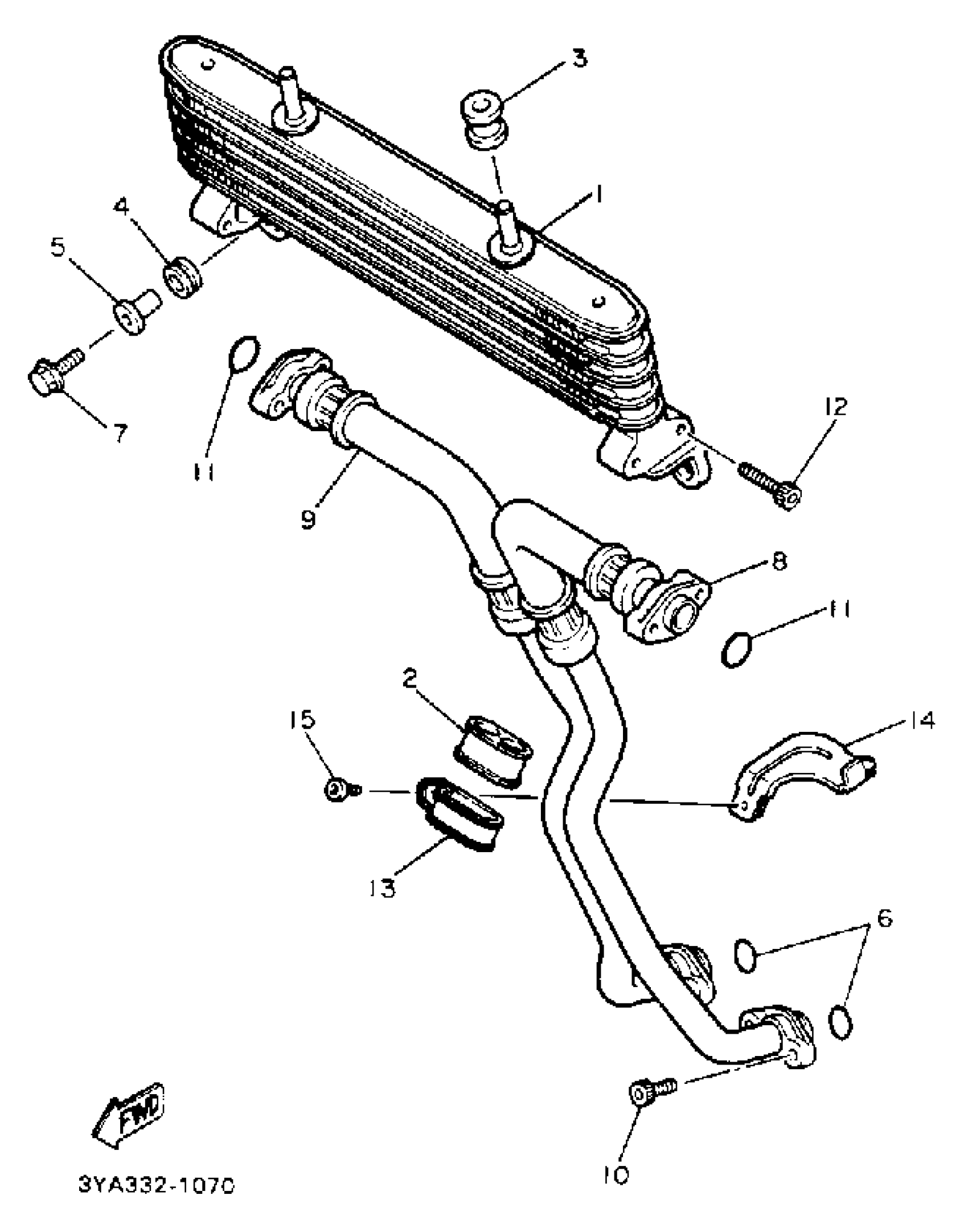

Yamaha FJ1200AEC (FJ1200 CA) 1993 OIL COOLER Diagram

#

Description
Price

1

OIL COOLER ASSY

3XW-13470-00-00

Unavailable

2

DAMPER

3XW-13159-00-00

Unavailable

3

GROMMET

90480-16284-00

$11.49

4

GROMMET(2GH)

90480-12475-00

$8.49

5

COLLAR(36Y)

90387-067K8-00

$7.49

6

O-RING(36Y)

93210-13657-00

$7.49

7

BOLT, FLANGE

95817-06020-00

$3.81

8

HOSE, OIL 1

3XW-13464-00-00

Unavailable

9

HOSE, OIL 2

3XW-13465-00-00

Unavailable

10

BOLT,SOCKET

91317-06020-00

Unavailable

11

O-RING (26H)

93210-16629-00

$7.49

12

BOLT,SOCKET

91317-06040-00

$3.76

13

STAY

3XW-13151-00-00

Unavailable

14

STAY 2

3XW-13152-00-00

Unavailable

15

BOLT,SOCKET

91317-06016-00

$1.25
