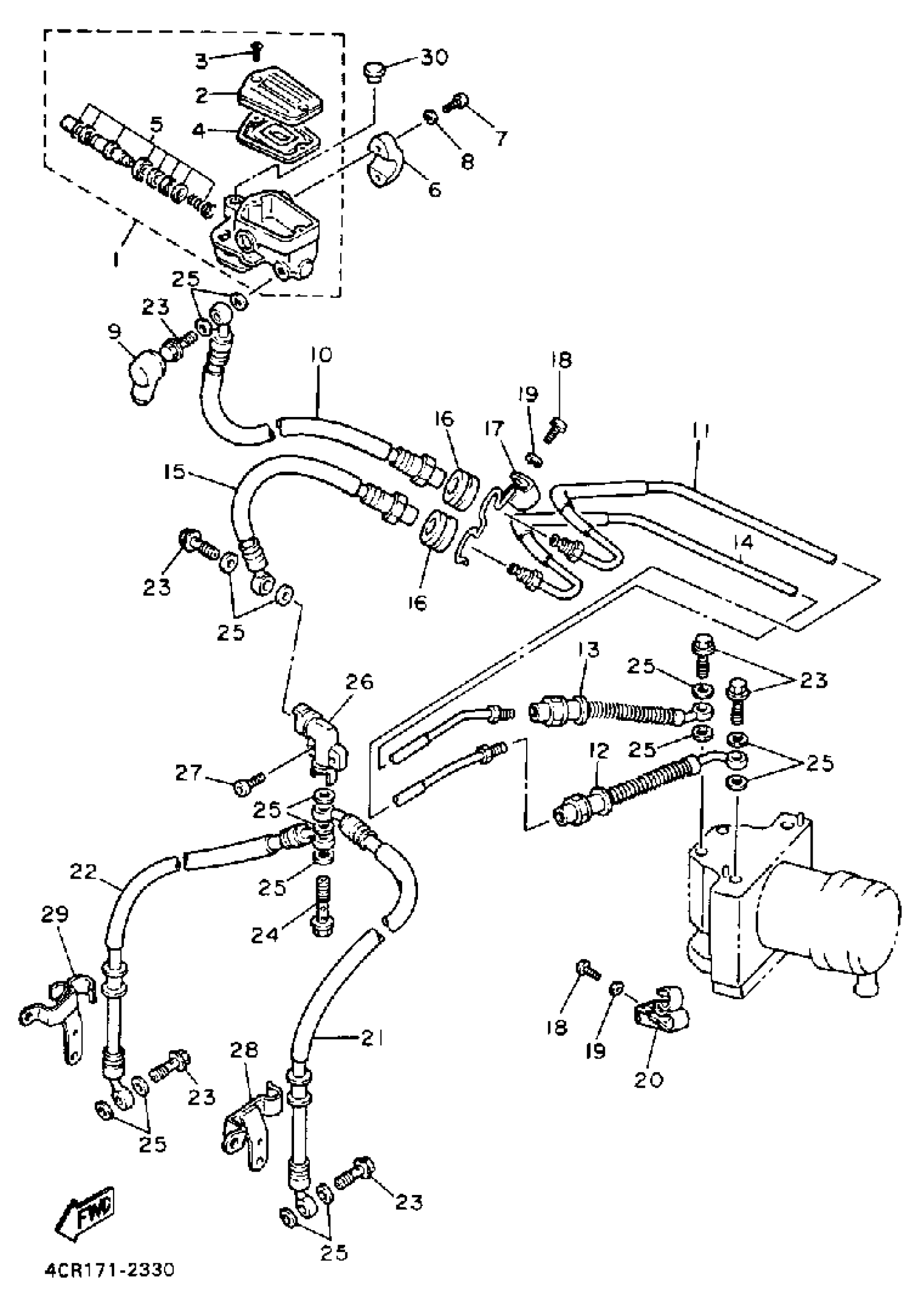

Yamaha FJ1200AEC (FJ1200 CA) 1993 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

2

CAP, RESERVOIR

3HE-25852-01-00

$29.99

3

SCREW, FLAT

98707-04012-00

$2.18

4

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$35.99

5

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

6

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$24.99

7

BOLT,SOCKET

91317-06025-00

$5.60

8

WASHER, SPRING

92907-06100-00

$4.25

9

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

10

BRAKE HOSE SET(3YA)

99999-02572-00

Unavailable

11

PIPE, BRAKE

3YA-25871-00-00

Unavailable

12

HOSE, BRAKE

3YA-25874-00-00

Unavailable

13

HOSE, BRAKE 4

3YA-2581J-00-00

Unavailable

14

PIPE, BRAKE 2

3YA-25882-00-00

Unavailable

15

BRAKE HOSE SET(3YA)

99999-02575-00

Unavailable

16

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

17

HOLDER, BRAKE HOSE

3YA-25886-00-00

Unavailable

17

HOLDER, BRAKE HOSE

4CR-25886-00-00

Unavailable

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

HOLDER, BRAKE HOSE

3YA-25887-00-00

Unavailable

21

BRAKE HOSE SET(3XW)

99999-02508-00

Unavailable

22

BRAKE HOSE SET(3XW)

99999-02516-00

Unavailable

23

BOLT, UNION(3GM)

90401-10159-00

Unavailable

24

BOLT, UNION

90401-10038-00

Unavailable

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

JOINT

11U-25885-00-00

Unavailable

27

BOLT,SOCKET

91317-06025-00

$5.60

28

HOLDER, BRKE HOSE 1

3CW-25875-00-00

Unavailable

29

HOLDER, BRKE HOSE 2

3YA-25876-10-00

Unavailable

30

PLUG (341-26329-00)

90338-09012-00

Unavailable
