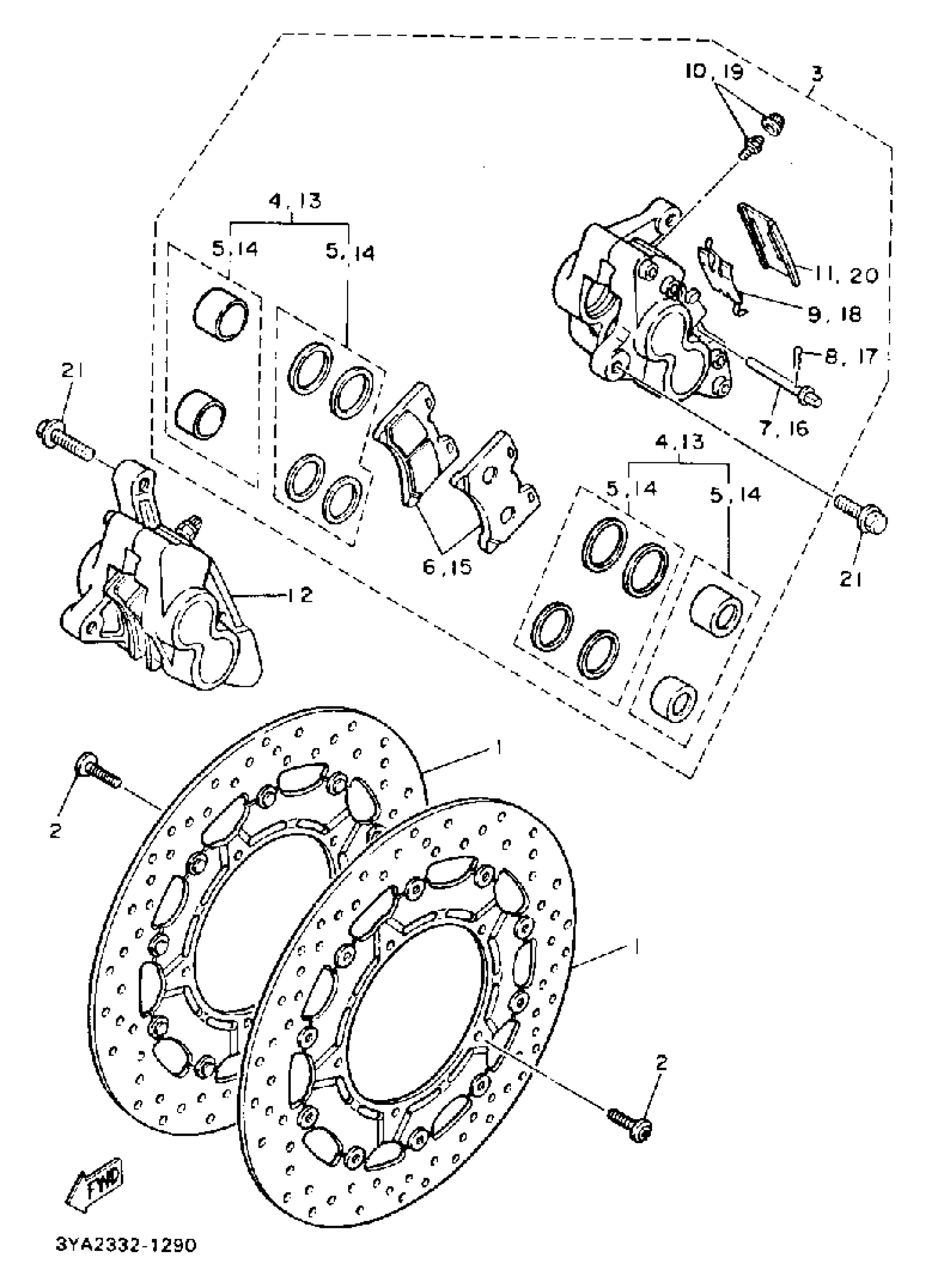

Yamaha FJ1200AEC (FJ1200 CA) 1993 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC BRAKE ASSEMBLYLEFT

3YA-2581T-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

CALIPER ASSY (LEFT)

3XW-2580T-01-00

Unavailable

4

PISTON ASSY, CALIPER

1NL-W0057-00-00

$210.99

5

CALIPER SEAL KIT

1NL-W0047-00-00

$69.99

6

BRAKE PAD KIT

4KG-25805-00-00

$49.99

7

PIN, PAD

3HE-25924-00-00

Unavailable

8

CLIP, PAD PIN

3GM-25925-00-00

$11.99

9

SUPPORT, PAD

2GH-25919-00-00

Unavailable

10

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

11

COVER, DUST

1KT-25836-01-00

$17.49

12

CALIPER ASSY RIGHT

3XW-2580U-01-00

Unavailable

13

PISTON ASSY, CALIPER

1NL-W0057-00-00

$210.99

14

CALIPER SEAL KIT

1NL-W0047-00-00

$69.99

15

BRAKE PAD KIT

4KG-25805-00-00

$49.99

16

PIN, PAD

3HE-25924-00-00

Unavailable

17

CLIP, PAD PIN

3GM-25925-00-00

$11.99

18

SUPPORT, PAD

2GH-25919-00-00

Unavailable

19

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

20

COVER, DUST

1KT-25836-01-00

$17.49

21

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
