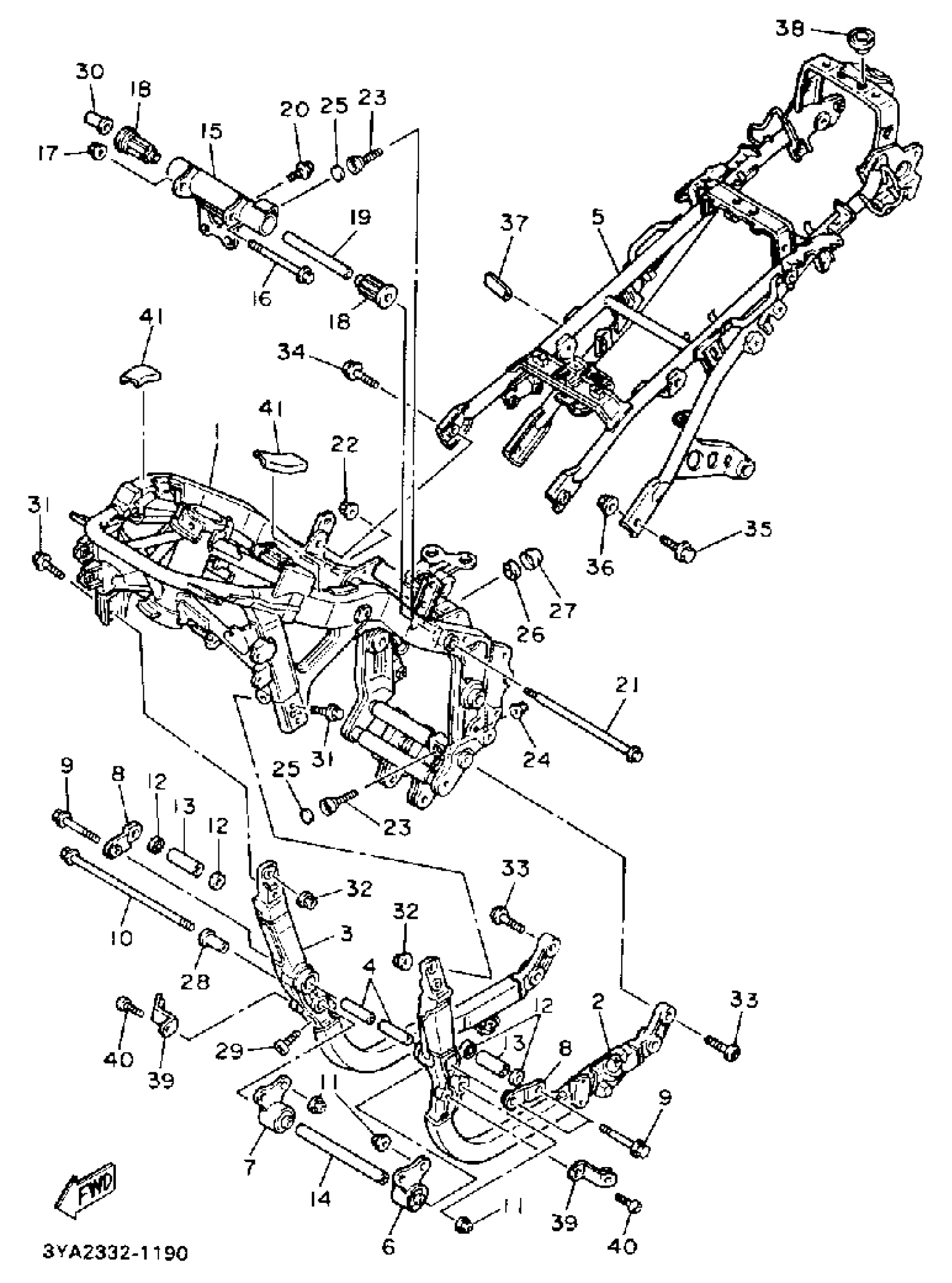

Yamaha FJ1200AEC (FJ1200 CA) 1993 FRAME Diagram
#
1
FRAME COMP.
4AY-21110-00-35
Unavailable
1
FRAME
4CR-21110-00-35
Unavailable
2
TUBE, DOWN
3XW-21140-00-35
Unavailable
2
TUBE, DOWN
4AH-21140-00-35
Unavailable
3
DOWN TUBE COMP.2
3XW-21150-00-35
Unavailable
3
DOWN TUBE COMP.2
4AH-21150-00-35
Unavailable
5
FRAME, REAR
3YA-21190-00-33
Unavailable
6
ENG BRKT SUB-COMP1SUB-COMP. 1
3XW-2140X-00-00
Unavailable
7
ENG BRKT SUB-COMP2SUB-COMP. 2
3XW-2140Y-00-00
Unavailable
8
STAY, ENGINE 3
3XW-21316-00-00
Unavailable
9
BOLT, WASHER BASED(3XW)
90105-12598-00
Unavailable
10
BOLT, FLANGE
90105-12047-00
Unavailable
12
COVER, DUST
3XW-2217H-00-00
Unavailable
13
COLLAR
90387-124X8-00
Unavailable
14
SPACER
90560-12374-00
Unavailable
15
STAY, ENGINE 4
3XW-21317-00-00
Unavailable
16
BOLT, WASHER BASED (5E3)
90105-10183-00
Unavailable
17
NUT, SELF-LOCKING
90185-10170-00
Unavailable
18
DAMPER
3XW-21488-00-00
Unavailable
19
SPACER, ENG MOUNT
36Y-15327-00-00
Unavailable
20
BOLT, FLANGE
95817-10020-00
Unavailable
21
BOLT, WASHER BASED(4EB)
90105-12787-00
Unavailable
23
WASHER, LOCKENGINE ADJUSTING
3XW-21495-00-00
Unavailable
24
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
25
DAMPER, STOPPER
3XW-2140A-00-00
Unavailable
26
NUT
3XW-21494-00-00
Unavailable
27
PLUG (3XW)
90331-32097-00
Unavailable
28
COLLAR
90387-123X4-00
Unavailable
29
BOLT,SOCKET
91314-10020-00
Unavailable
30
COLLAR (3XW)
90387-120Y4-00
Unavailable
31
BOLT, WASHER BASED
90105-10635-00
Unavailable
32
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
33
BOLT (3XF1)
90110-08220-00
Unavailable
34
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
35
BOLT, FLANGE
95817-10020-00
Unavailable
36
NUT, SELF-LOCKING
90185-10170-00
Unavailable
37
MOLD, SIDE COVER 1
1UF-2171L-01-00
Unavailable
38
PAD, SEAT
1L9-24741-00-00
Unavailable
39
BRACKET, BATT BOX
3XW-21149-00-00
Unavailable
40
BOLT,SOCKET
91317-06010-00
Unavailable
41
DAMPER 1
1VJ-14425-00-00
Unavailable
