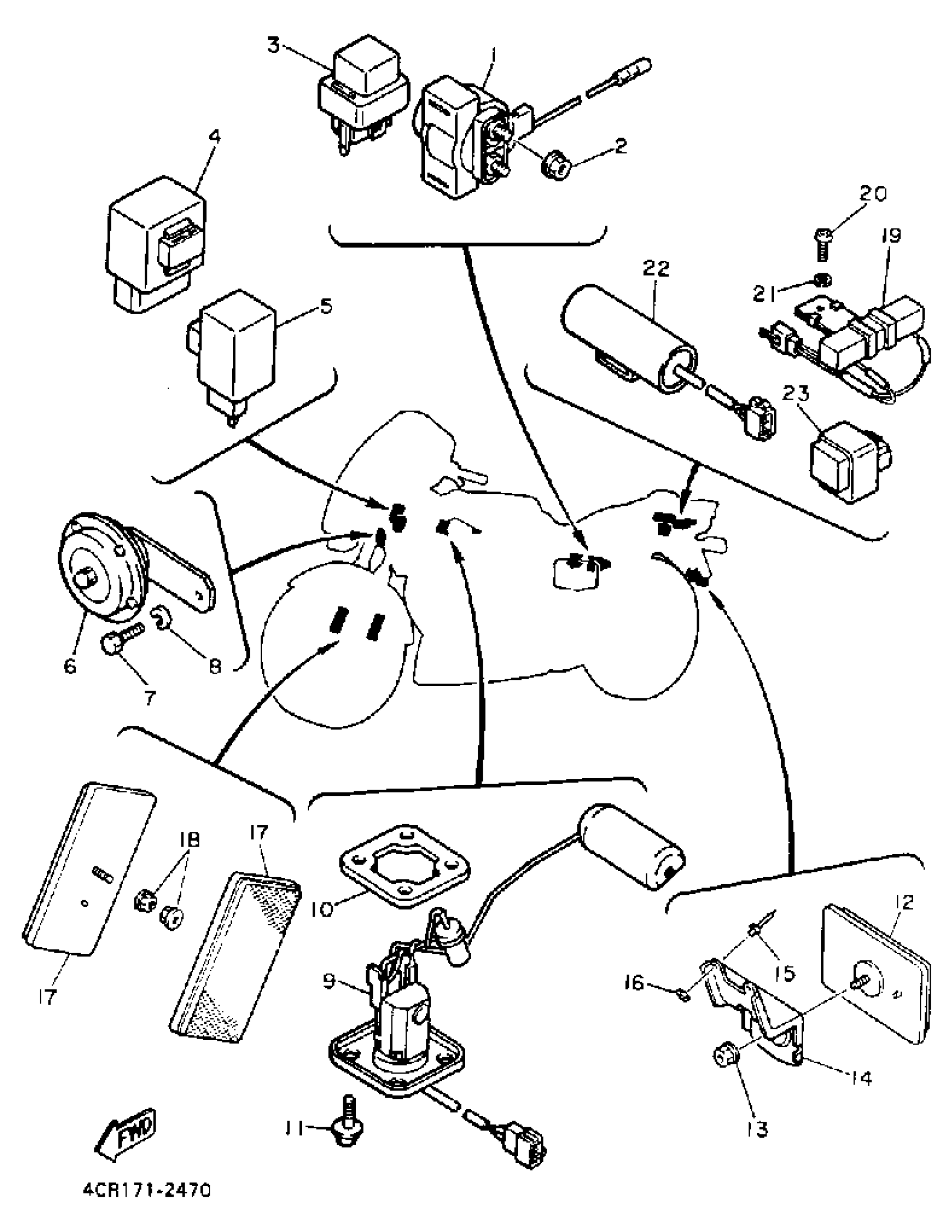

Yamaha FJ1200AEC (FJ1200 CA) 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

2

NUT, FLANGE(7NB)

95780-06500-00

$2.60

3

FUSE HOLDER ASSEMBLY

3YA-82150-00-00

Unavailable

4

RELAY ASSY

2UJ-81950-02-00

$65.99

5

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

5

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

6

HORN

4V8-83371-20-00

Unavailable

7

BOLT, HEXAGON

97017-08016-00

$8.49

8

WASHER(JN5)

92907-08100-00

$8.49

9

SENDER UNIT ASSEMBLY, FUEL METER

36Y-85752-03-00

Unavailable

10

GASKET, SENDER UNIT

5G3-85753-00-00

$17.49

11

BOLT, WITH WASHER

90119-05071-00

$8.49

12

REAR REFLECTOR ASSY

4KM-85130-00-00

$22.99

13

NUT, FLANGE(3GM)

95707-05500-00

$8.49

14

BRACKET, REFLECTOR 1

47M-85132-00-00

Unavailable

15

RIVET (813)

90267-32070-00

Unavailable

16

WASHER,PLAIN

92990-03200-00

Unavailable

17

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

18

NUT, FLANGE(3GM)

95707-05500-00

$8.49

19

RESISTOR ASSEMBLY

3KS-85370-00-00

Unavailable

20

SCREW PAN HEAD

98580-06010-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

23

RELAY ASSY

25G-81950-02-00

Unavailable
