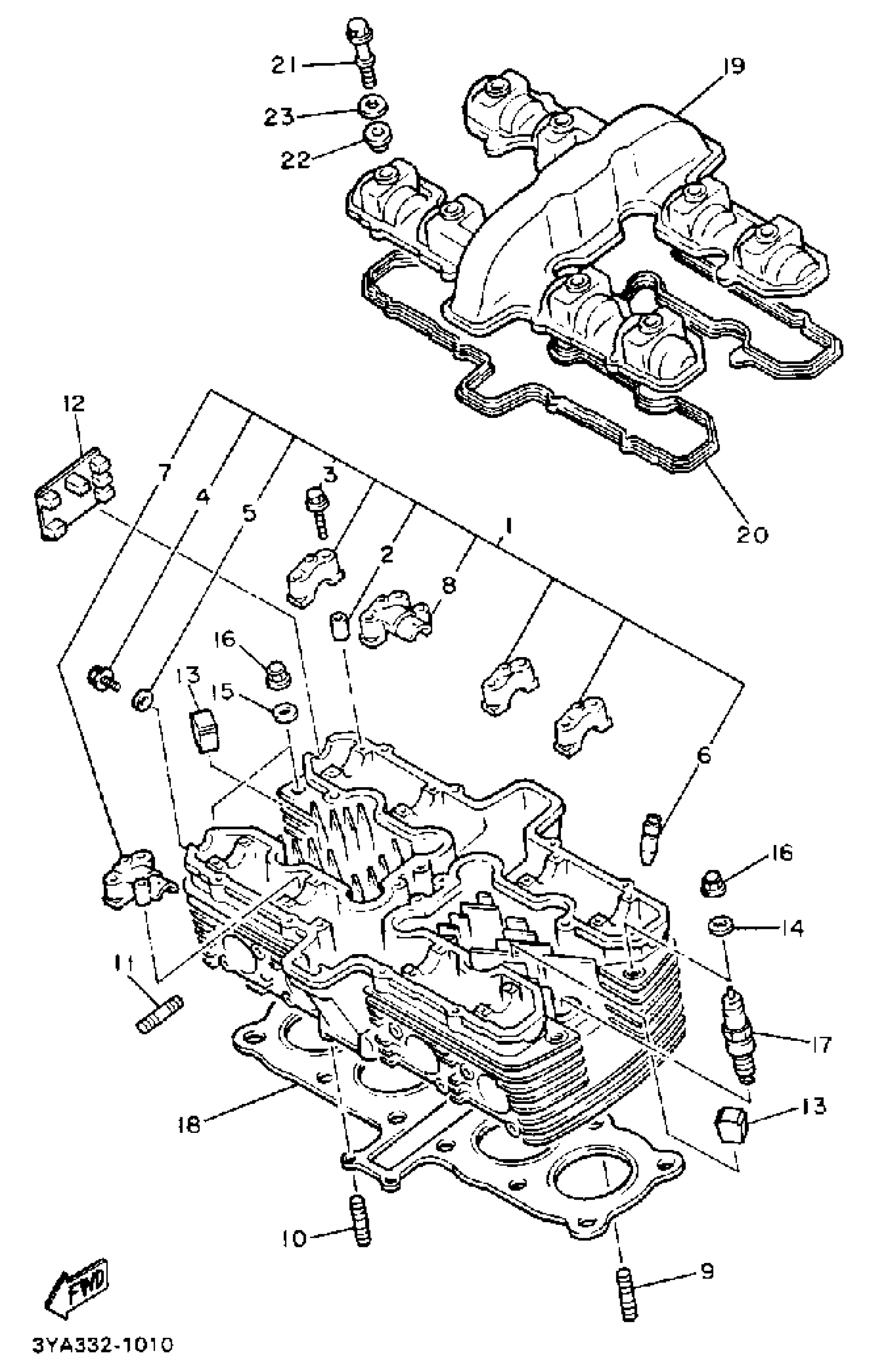

Yamaha FJ1200AEC (FJ1200 CA) 1993 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

36Y-11101-05-00

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

BOLT, WASHER BASED(36Y)

90105-06305-00

$1.54

4

SCREW

90153-06029-00

$10.49

5

GASKET 256113960000

90430-06014-00

Unavailable

6

GUIDE, INTAKE VALVE (1ST O/S)

36Y-11133-10-00

$48.99

7

CAP, CAMSHAFT 3

36Y-12193-10-00

Unavailable

8

CAP, CAMSHAFT 4

36Y-12178-10-00

Unavailable

9

BOLT, STUD 3

95617-06625-00

$8.49

10

BOLT, STUD(1FW)

90116-06466-00

$4.51

11

BOLT, STUD 3

95617-08640-00

$5.49

12

ABSORBER 1

3XW-11161-00-00

Unavailable

13

ABSORBER

434-11161-00-00

Unavailable

14

WASHER, PLATE (26H)

90201-102G9-00

$9.49

15

WASHER PLATE 341839090000

90201-10128-00

$4.82

16

NUT, CROWN(3XW)

90176-10078-00

Unavailable

17

DP8EA9 NGK SPLUG 10PK

DP8-EA900-00-00

Unavailable

18

GASKET, CYLINDER HEAD 1

1TX-11181-10-00

Unavailable

19

COVER, CYLINDER.HEAD 1

36Y-11191-01-00

Unavailable

20

GASKET, HEAD COVER 1

5WM-11193-00-00

Unavailable

21

BOLT(3TJ)

90109-064F0-00

Unavailable

22

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable

23

WASHER(46X)

90209-11262-00

Unavailable
