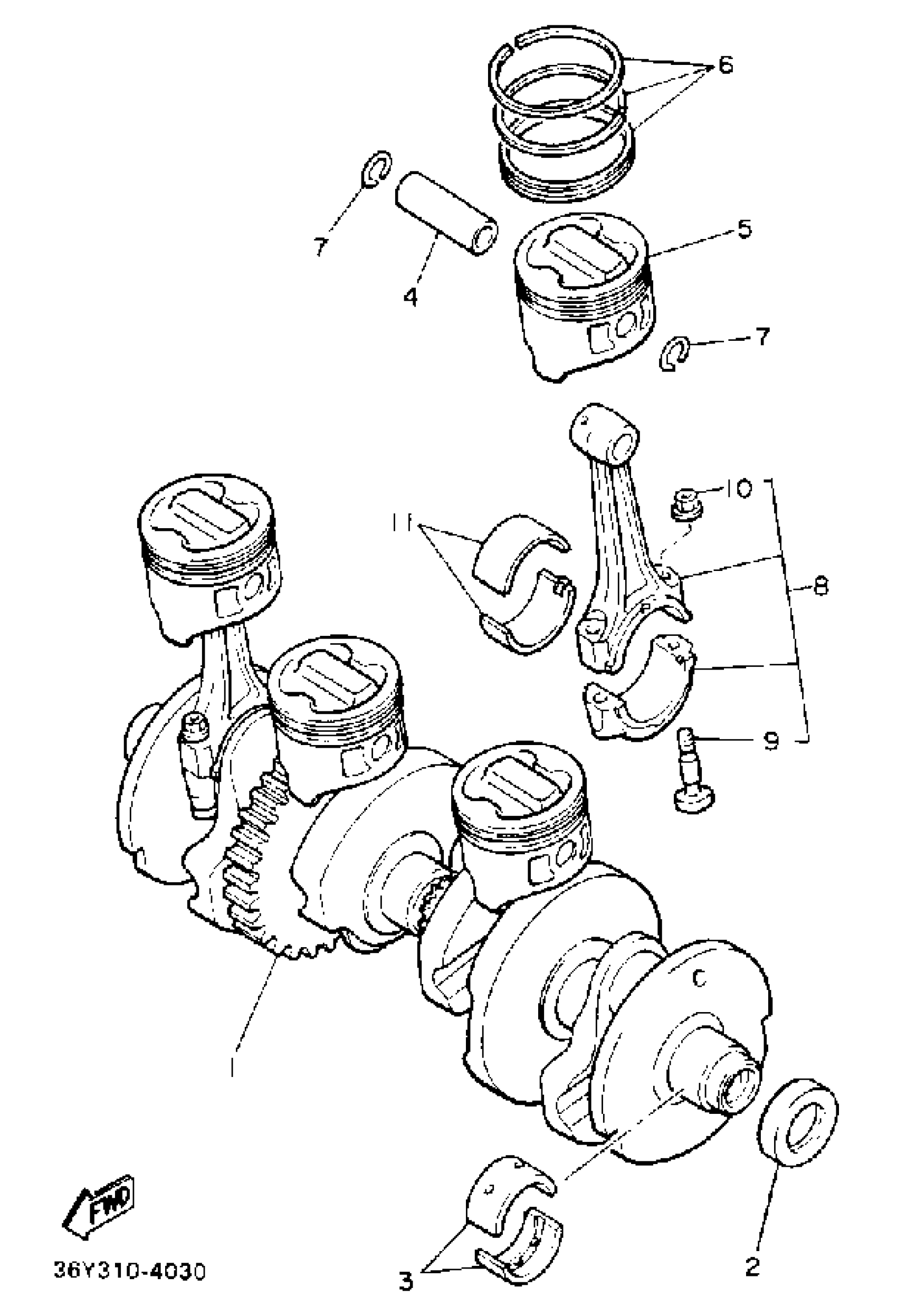

Yamaha FJ1200AEC (FJ1200 CA) 1993 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

36Y-11411-01-00

Unavailable

2

OIL SEAL

36Y-15389-09-00

$34.99

3

BEARING, PLAIN (CRANKSHAFT 1)

2H7-11416-01-00

$10.99

3

BEARING, PLAIN (CRANKSHAFT 2)

2H7-11416-11-00

$17.49

3

BEARING, PLAIN (CRANKSHAFT 3)

2H7-11416-21-00

$38.99

3

BEARING, PLAIN (CRANKSHAFT 4)

2H7-11416-31-00

$38.99

3

BEARING, PLAIN (CRANKSHAFT 5)

2H7-11416-41-00

$23.99

4

PIN, PISTON

30X-11633-03-00

$37.99

5

PISTON (STD)

4PU-11631-00-A0

Unavailable

5

PISTON (0.50MM O/S)

4PU-11636-00-00

Unavailable

6

PISTON RING SET (STD)

4PU-11603-00-00

$90.99

6

PISTON RING SET (0.50MM O/S)

4PU-11605-00-00

Unavailable

7

CIRCLIP (2F1)

93450-19052-00

$7.49

8

CONNECTING ROD ASY

36Y-11650-01-00

Unavailable

9

BOLT, CONNECTING ROD

36Y-11654-00-00

$6.99

10

NUT (11H)

90179-08327-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

36Y-11656-00-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

36Y-11656-10-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

36Y-11656-20-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

36Y-11656-30-00

Unavailable
