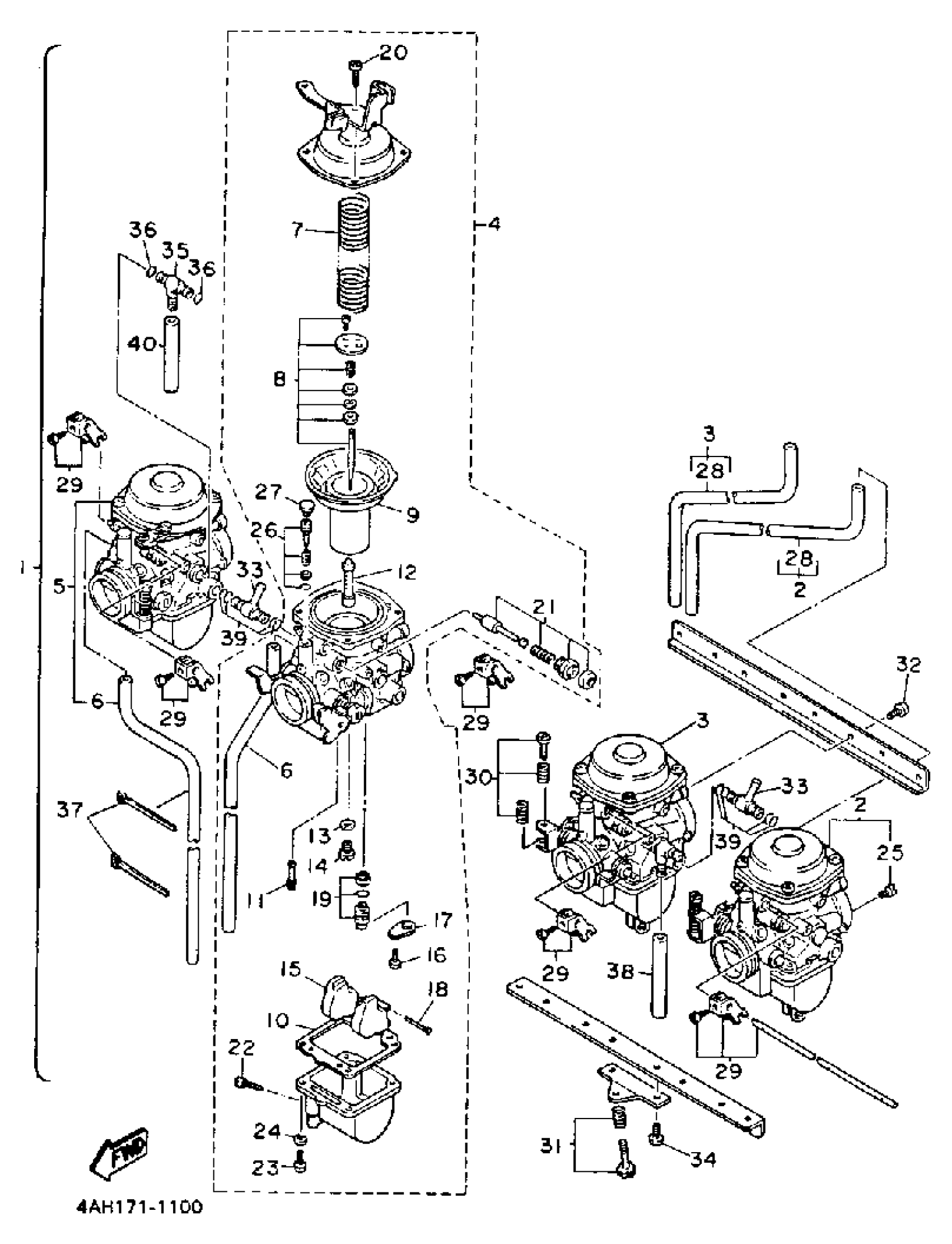

Yamaha FJ1200AEC (FJ1200 CA) 1993 CARBURETOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

[4A-H1490-00-00

Unavailable

1

UNAVAILABLE IN PRICE BOOK

[4A-H1491-00-00

Unavailable

2

CARBURETOR ASSEMBLY 1

4AH-14901-10-00

Unavailable

2

CARBURETOR ASSEMBLY 1

4AH-14901-10-00

Unavailable

3

CARBURETOR ASSEMBLY 2

4AH-14902-10-00

Unavailable

3

CARBURETOR ASSEMBLY 2

4AH-14902-10-00

Unavailable

4

CARBURETOR ASSEMBLY 3

4AH-14903-10-00

Unavailable

4

CARBURETOR ASSEMBLY 3

4AH-14903-10-00

Unavailable

5

CARBURETOR ASSEMBLY 4

4AH-14904-10-00

Unavailable

5

CARBURETOR ASSEMBLY 4

4AH-14904-10-00

Unavailable

6

PIPE

26H-14197-01-00

$38.99

7

SPRING, DIAPHRAGM

3Y6-14933-00-00

Unavailable

8

. NEEDLE SET

1TX-1490J-00-00

Unavailable

9

DIAPHRAGM ASSY

50H-14940-00-00

Unavailable

10

GASKET, FLOAT CHAMBER

3XW-14984-00-00

$25.99

11

JET, PILOT (# 37.5)

4G0-14142-37-A0

Unavailable

12

NOZZLE, MAIN

50H-14941-92-00

Unavailable

13

WASHER,MAIN JET

137-14153-00-00

Unavailable

14

JET, MAIN (#110)

620-14231-22-A0

Unavailable

15

FLOAT

3H5-14985-00-00

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

. PLATE

2H0-14146-00-00

Unavailable

18

PIN, FLOAT

537-14186-00-00

Unavailable

19

NEEDLE VALVE SET

3CF-14107-15-00

Unavailable

20

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

21

. STARTER SET

36Y-1410A-00-00

Unavailable

22

PLUG, DRAIN

12R-14191-00-00

Unavailable

23

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

JET, MAIN (#155)

3G2-14231-31-00

Unavailable

26

PILOT SCREW SET

12R-14105-00-00

Unavailable

27

CAP

3F9-14118-00-00

Unavailable

28

HOSE (L1500)

90445-084J0-00

Unavailable

29

STARTER LEVER SET

36Y-1490L-00-00

Unavailable

30

STOP SCREW SET

36Y-1490K-00-00

Unavailable

31

THROTTLE SCREW SET

36Y-14103-00-00

Unavailable

32

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

33

PIPE, STARTER CON

16H-14988-00-00

Unavailable

34

SCREW, PAN

98507-06014-00

Unavailable

35

NIPPLE

17A-14251-00-00

Unavailable

36

O-RING

36Y-14147-00-00

Unavailable

37

CLIP, PIPE

35H-14139-00-00

Unavailable

38

HOSE

1WJ-14987-00-00

Unavailable

38

HOSE

(50H-14987-00-00)

Unavailable

39

O-RING

36Y-14147-00-00

Unavailable

40

PIPE

1WJ-14197-00-00

Unavailable

40

HOSE

50H-14987-00-00

Unavailable
