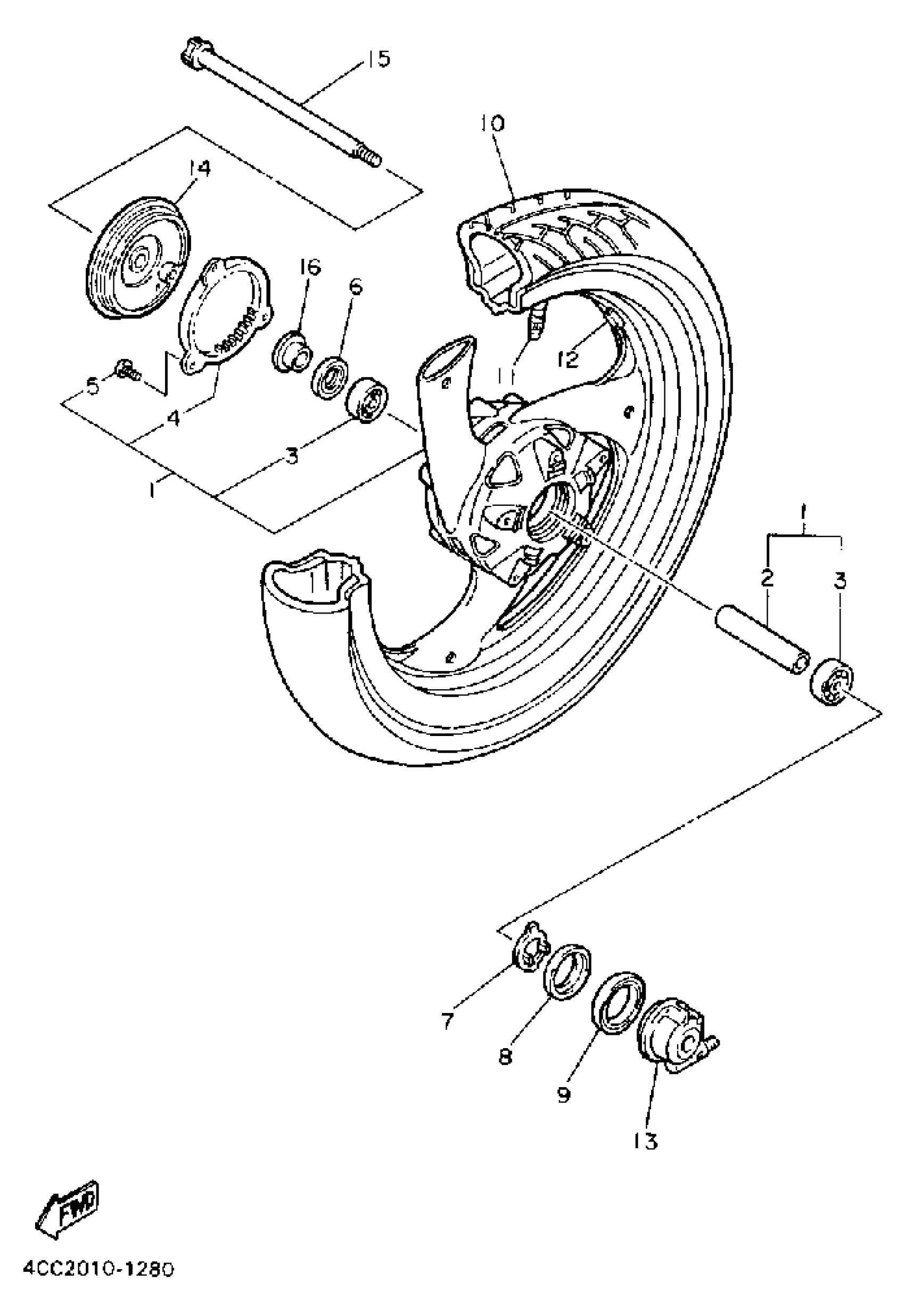

Yamaha FJ1200ADC (FJ1200 CA) 1992 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

3YA-W2513-00-WG

Unavailable

2

SPACER

90560-15314-00

Unavailable

3

BEARING

93306-30212-00

$32.68

4

. ROTOR, SENSOR

3YA-2517G-00-00

Unavailable

5

SCREW, WITH WASHER(2JA)

90159-05155-00

$1.49

6

OIL SEAL (22X42X7)

93102-22014-00

$10.20

7

CLUTCH, METER (371,447)

341-25149-00-00

$6.28

8

RETAINER, CLUTCH (371,447)

341-25846-00-00

$6.94

9

OIL SEAL (45X56X6)

93105-45017-00

$10.97

10

120/70V17 DUN V250 K275

94112-175X8-00

Unavailable

11

VALVE, RIM(2GH)

93900-00030-00

$13.78

12

BALANCER, WHEEL

5MT-25398-00-00

$14.81

12

BALANCER, WHEEL

5MT-25398-10-00

$14.65

12

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

13

GEAR UNIT ASSY

4X8-25190-10-00

Unavailable

14

HOUSING, SENSOR FRTSENSOR FRONT

3YA-2517A-00-WG

Unavailable

15

AXLE, WHEEL

18G-25381-00-00

Unavailable

16

COLLAR(1KT)

90387-153N7-00

Unavailable
