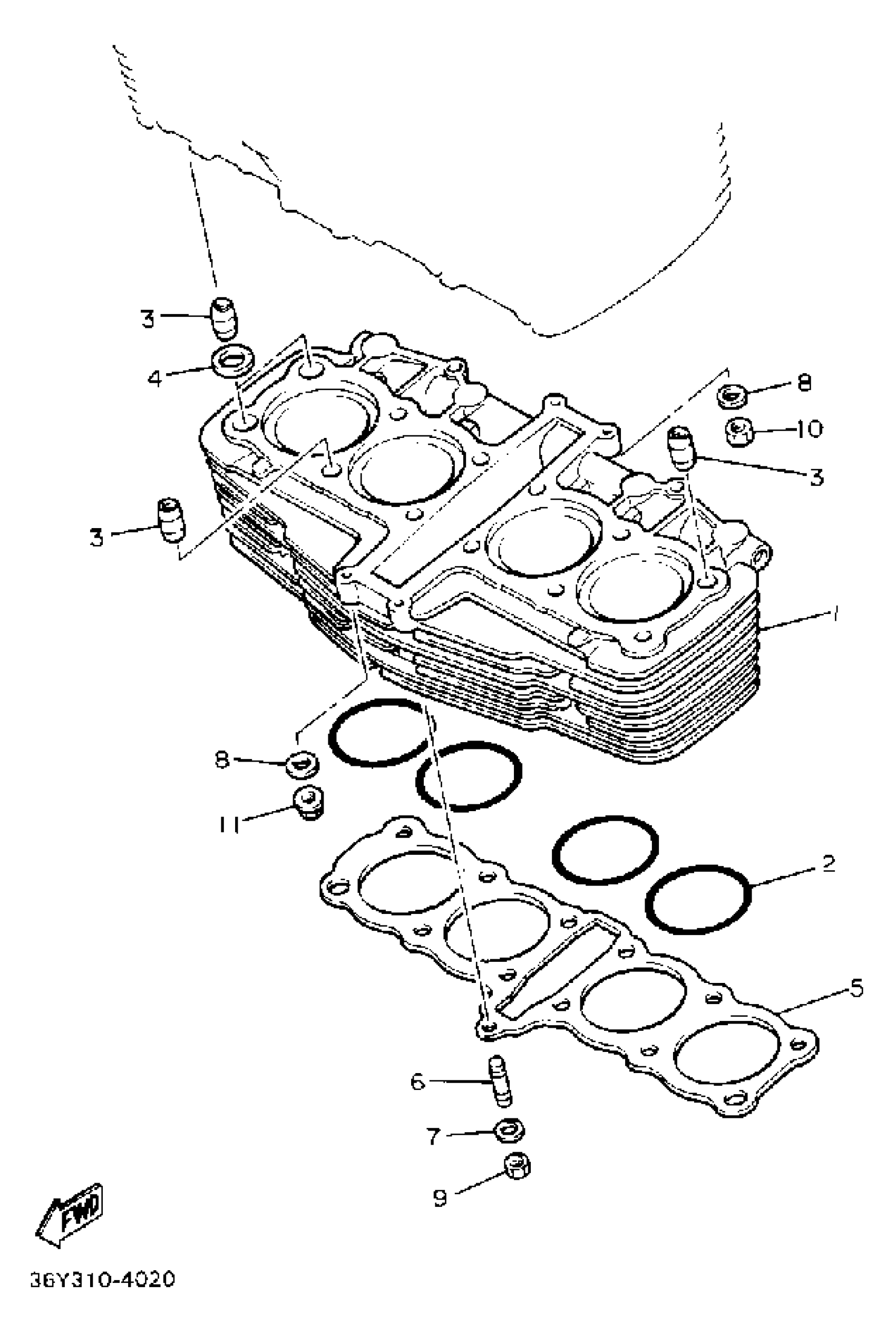

Yamaha FJ1200ADC (FJ1200 CA) 1992 CYLINDER Diagram

#

Description
Price

1

CYLINDER

1TX-11310-02-00

Unavailable

2

O-RING(1UX)

93210-81731-00

$17.02

3

PIN, DOWEL

99530-14016-00

$3.05

4

GASKET (1L9)

90430-14131-00

$5.06

5

GASKET, CYLINDER

4CR-11351-00-00

$32.89

6

BOLT, STUD 2

95617-08330-00

$9.09

7

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.43

9

NUT(6L2)

95333-08600-00

$3.15

10

NUT(6TA)

95317-06600-00

$2.57

11

NUT (1AE)

90179-06500-00

$3.80
