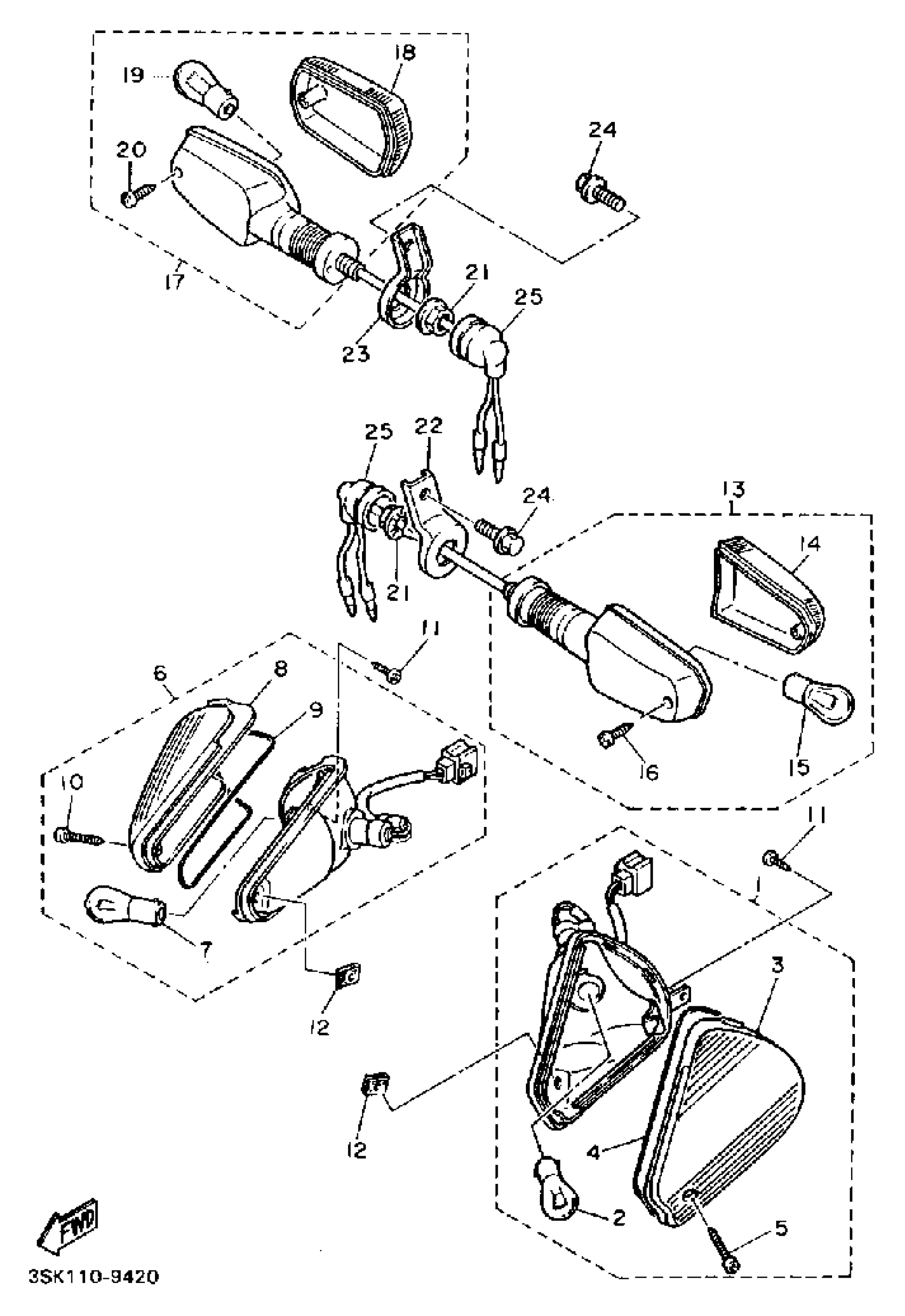

Yamaha FJ1200AC (FJ1200 CA) 1990 TURNSIGNAL Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

3GP-83310-00-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. LENS, FLASHER

3CV-83312-00-00

Unavailable

4

. GASKET, FLSHR LENS

3CV-83313-00-00

Unavailable

5

SCREW, TAPPING(7G6)

97780-40525-00

$9.49

6

FRT FLSHR LITE ASSEMBLY

3GP-83320-00-00

Unavailable

7

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

8

. LENS, FLASHER 2

3CV-83322-00-00

Unavailable

9

. GASKET, FLSHR LENS

3CV-83313-00-00

Unavailable

10

SCREW, TAPPING(7G6)

97780-40525-00

$9.49

11

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

12

NUT, SPRING (26H)

90183-04027-00

$2.39

13

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

14

LENS, FLASHER 2

51L-83342-01-00

$11.99

15

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

16

SCREW, PAN TAP.2

97707-40520-00

Unavailable

17

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

Unavailable

18

LENS, FLASHER

51L-83332-01-00

Unavailable

19

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

TOOL

UNA-VAILA-BL-EI

Unavailable

20

SCREW, PAN TAP.2

97707-40520-00

Unavailable

21

NUT(3GG)

90179-12588-00

Unavailable

22

STAY, FLASHER

36Y-83368-00-00

Unavailable

23

STAY, FLASHER

36Y-83369-00-00

Unavailable

24

BOLT, FLANGE

95817-08012-00

Unavailable

25

CAP

18G-83365-00-00

Unavailable
