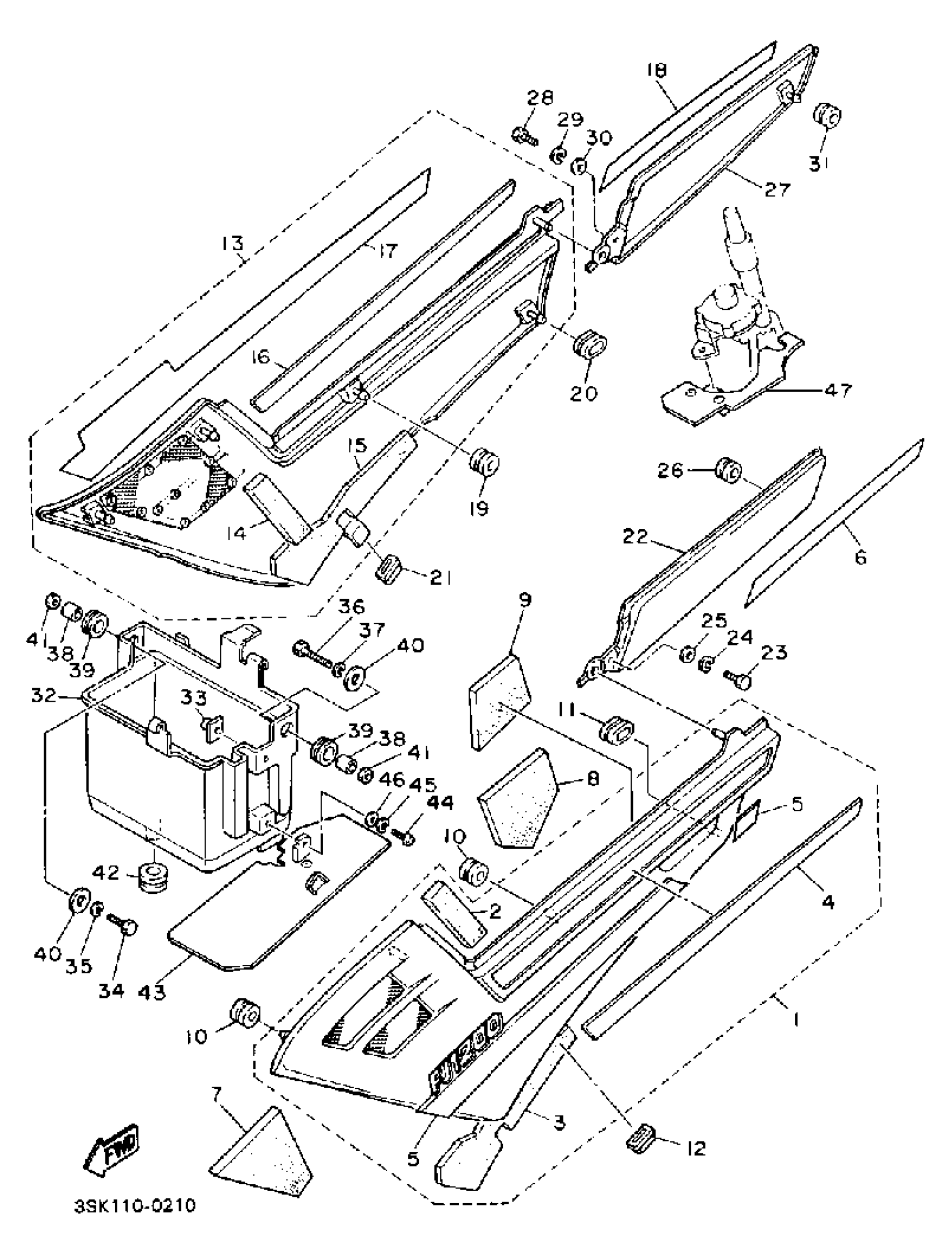

Yamaha FJ1200AC (FJ1200 CA) 1990 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

36Y-Y2171-20-0Y

Unavailable

1

COVER, SIDE 1 (3BC-Y2171-10-8X)

36Y-Y2171-31-1Y

Unavailable

2

. SEAL 2

36Y-21735-00-00

Unavailable

3

. DAMPER

36Y-21746-01-00

Unavailable

4

. MOLD, SIDE COVER 1

1TX-2171L-00-00

Unavailable

4

. MOLD, SIDE COVER 1 (SILKY WHITE)

3CV-2171L-20-00

Unavailable

5

. GRAPHIC SET 1 (SILKY WHITE)

3CV-2173L-20-00

Unavailable

5

. GRAPHIC SET 1 (YAMAHA BLACK)

3CV-2173L-30-00

Unavailable

6

. GRAPHIC 3 (SILKY WHITE)

3CV-2174G-20-00

Unavailable

6

. GRAPHIC 3 (YAMAHA BLACK)

3CV-2174G-30-00

Unavailable

7

. DAMPER, LOCATING 1

3BC-21778-00-00

Unavailable

8

. DAMPER, LOCATING 2

3BC-21779-00-00

Unavailable

9

. DAMPER, LOCATING

3BC-2177M-00-00

Unavailable

10

GROMMET(41Y)

90480-01401-00

$8.49

11

GROMMET

90480-13014-00

$8.49

12

GROMMET

90480-01390-00

Unavailable

13

COVER, SIDE 2

36Y-Y2172-20-0Y

Unavailable

13

COVER, SIDE 2 (3CV-Y2172-11-8X)

36Y-Y2172-31-1Y

Unavailable

14

. SEAL 2

36Y-21735-00-00

Unavailable

15

. DAMPER

36Y-21747-01-00

Unavailable

16

. MOLD, SIDE COVER 2

1TX-2171M-00-00

Unavailable

16

. MOLD, SIDE COVER 2 (SILKY WHITE)

3CV-2171M-20-00

Unavailable

17

. GRAPHIC 5 (SILKY WHITE)

3CV-2174J-20-00

Unavailable

17

. GRAPHIC 5 (YAMAHA BLACK)

3CV-2174J-30-00

Unavailable

18

GRAPHIC 4 (SILKY WHITE)

3CV-2174H-20-00

Unavailable

18

GRAPHIC 4 (YAMAHA BLACK)

3CV-2174H-30-00

Unavailable

19

GROMMET(41Y)

90480-01401-00

$8.49

20

GROMMET

90480-13014-00

$8.49

21

GROMMET

90480-01390-00

Unavailable

22

COVER, SIDE 3

36Y-21731-00-33

Unavailable

22

COVER, SIDE 3

36Y-21731-00-GE

Unavailable

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLATE

90201-06049-00

Unavailable

26

GROMMET (1E5)

90480-13163-00

Unavailable

27

COVER, SIDE 4

36Y-21741-00-33

Unavailable

27

COVER, SIDE 4

36Y-21741-00-GE

Unavailable

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

WASHER, PLATE

90201-06049-00

Unavailable

31

GROMMET (1E5)

90480-13163-00

Unavailable

32

BOX

36Y-21245-00-00

Unavailable

33

PLATE

31A-14477-10-00

Unavailable

34

BOLT, HEXAGON

97017-06020-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

BOLT, HEXAGON

97017-06025-00

Unavailable

37

WASHER, SPRING

92995-06100-00

Unavailable

38

COLLAR

90387-06113-00

Unavailable

39

GROMMET (2N3)

90480-16233-00

Unavailable

40

WASHER, PLATE

90201-06747-00

Unavailable

41

NUT(6TA)

95317-06600-00

Unavailable

42

GROMMET

90480-23192-00

Unavailable

43

UNAVAILABLE IN PRICE BOOK

(36Y-2172G-00-00)

Unavailable

44

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

45

WASHER, SPRING

92907-06100-00

Unavailable

46

WASHER(6TA)

92907-06600-00

Unavailable

47

PANEL 1

3CV-2172H-00-00

Unavailable
