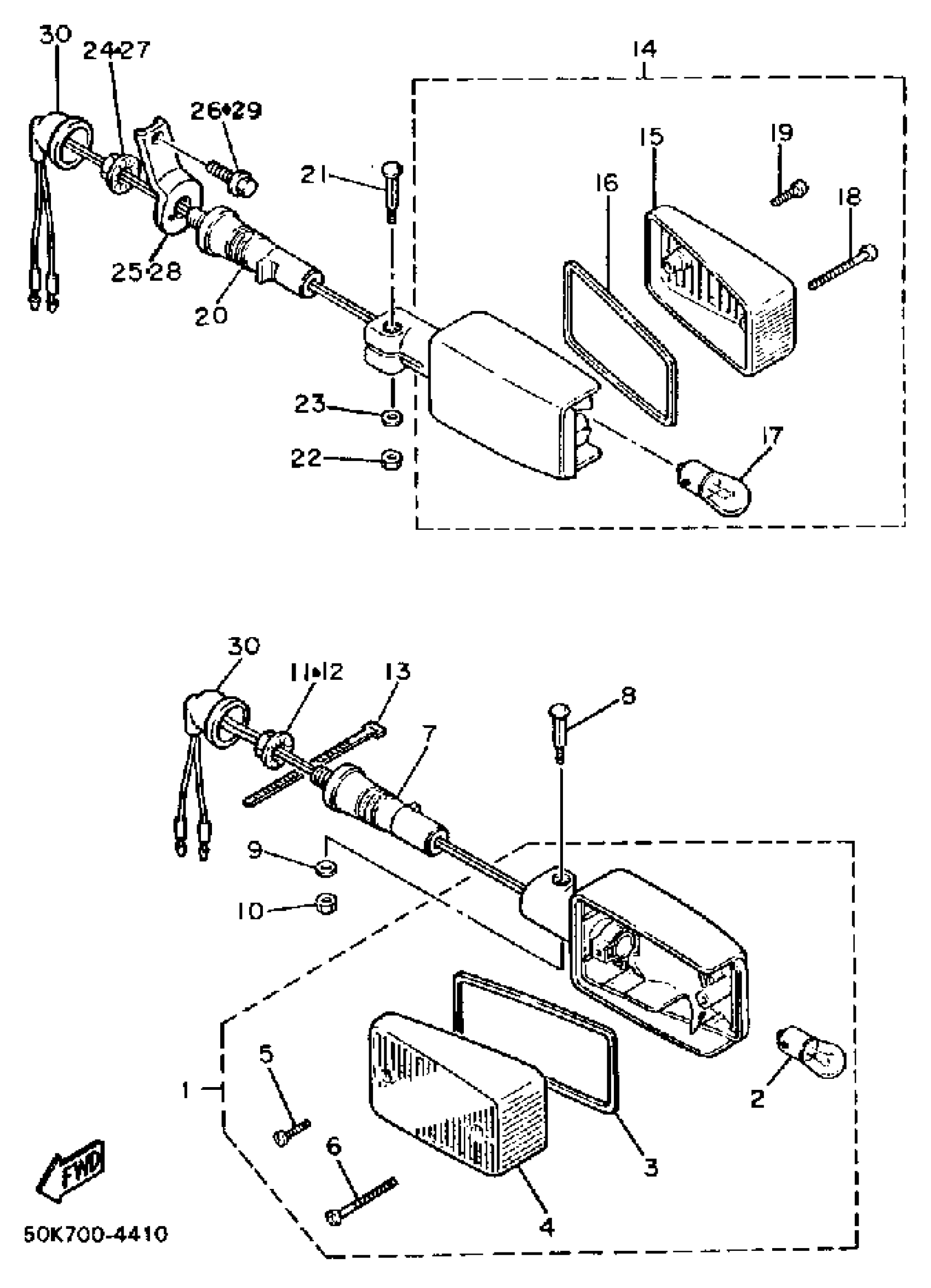

Yamaha FJ1100LC (FJ1100 CA) 1984 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASS''Y (11H-83301-70)

5G2-83310-70-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

. GASKET, FLASHER LENS

5G2-83313-00-00

Unavailable

4

LENS, FLASHER

5G2-83312-00-00

$15.49

5

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

6

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

7

STAY, FLASHER 1

4G0-83318-00-00

Unavailable

8

BOLT, flasher 1

5G2-83317-00-00

Unavailable

9

WASHER(1RW)

92907-05600-00

$3.78

10

NUT, HEXAGON

95317-05600-00

$2.34

11

NUT(3GG)

90179-12588-00

$7.49

12

NUT(3GG)

90179-12588-00

$7.49

13

BAND

341-26397-01-00

Unavailable

14

REAR FLASHER LIGHT ASS''Y

5G2-83303-70-00

Unavailable

15

LENS, FLASHER

5G2-83312-00-00

$15.49

16

. GASKET, FLASHER LENS

5G2-83313-00-00

Unavailable

17

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

18

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

19

SCREW, PAN HEAD

98507-04018-00

Unavailable

20

STAY, FLASHER 1

4G0-83318-00-00

Unavailable

21

BOLT, flasher 1

5G2-83317-00-00

Unavailable

22

NUT, HEXAGON

95317-05600-00

$2.34

23

WASHER(1RW)

92907-05600-00

$3.78

24

NUT(3GG)

90179-12588-00

$7.49

25

STAY, FLASHER

36Y-83368-00-00

Unavailable

26

BOLT, FLANGE

95817-08012-00

Unavailable

27

NUT(3GG)

90179-12588-00

$7.49

28

STAY, FLASHER

36Y-83369-00-00

Unavailable

29

BOLT, FLANGE

95817-08012-00

Unavailable

30

CAP

18G-83365-00-00

Unavailable
