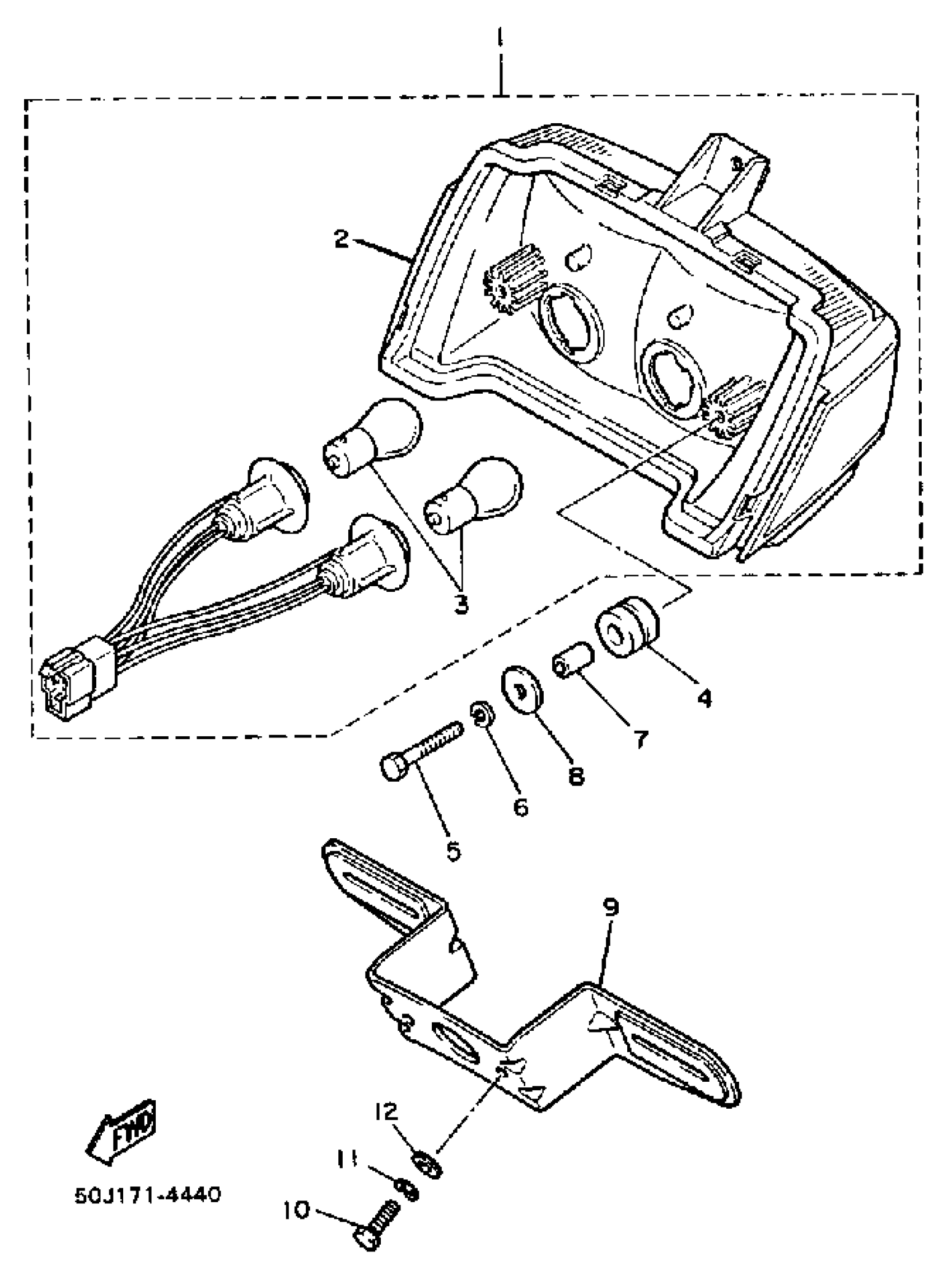

Yamaha FJ1100LC (FJ1100 CA) 1984 TAILLIGHT Diagram

#

Description
Price

1

. TAILLIGHT UNIT ASSEMBLY

47M-84710-60-00

Unavailable

2

. TAILLIGHT UNIT ASSEMBLY

47M-84710-60-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

GROMMET

90480-14412-00

Unavailable

5

BOLT, HEXAGON

97017-06030-00

$3.61

6

WASHER, SPRING

92995-06100-00

Unavailable

7

COLLAR 260845570000

90387-06028-00

Unavailable

8

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

9

BRACKET, LICENSE

26H-84751-00-98

Unavailable

10

BOLT, HEXAGON

97017-06016-00

$8.49

11

WASHER, SPRING

92907-06100-00

$4.25

12

WASHER, PLATE

90201-06380-00

$0.60
