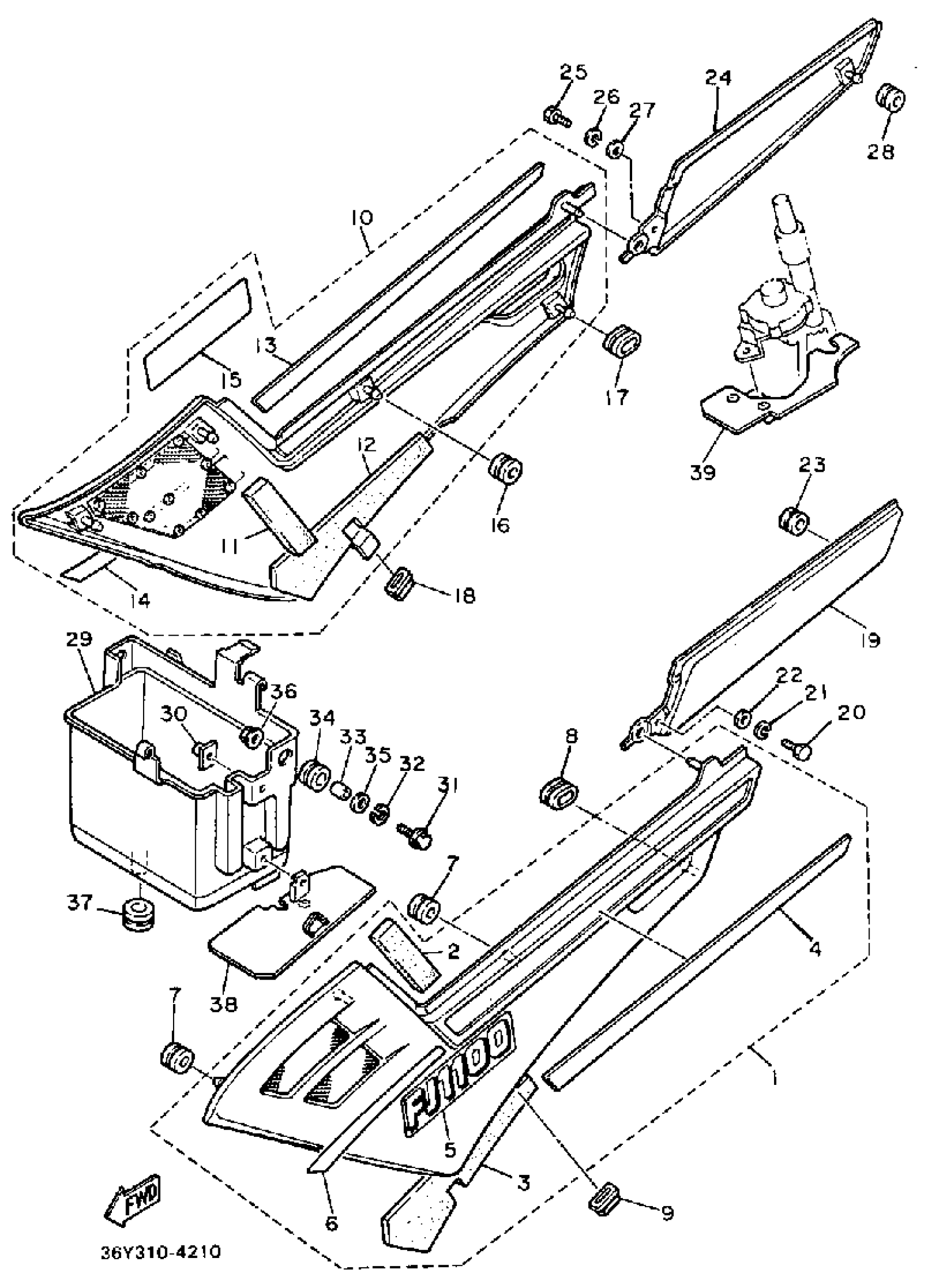

Yamaha FJ1100LC (FJ1100 CA) 1984 SIDE COVER Diagram

#

Description

Price

1

COVER SIDE 1

36Y-Y2171-01-1X

Unavailable

1

COVER SIDE 1

47M-Y2171-00-3X

Unavailable

2

. SEAL 2

36Y-21735-00-00

Unavailable

3

DAMPER

(36Y-21746-00-00)

Unavailable

4

. MOLD, SIDE COVER 1

1TX-2171L-00-00

Unavailable

4

. MOLE, SIDE COVER 1

36Y-2171L-00-00

Unavailable

5

. GRAPHIC 1

36Y-2173E-00-00

Unavailable

5

. GRAPHIC

36Y-2173E-10-00

Unavailable

6

. GRAPHIC 2

36Y-2173F-00-00

Unavailable

6

. GRAPHIC

47M-2173F-00-00

Unavailable

7

GROMMET(41Y)

90480-01401-00

$8.49

8

GROMMET

90480-13014-00

$8.49

9

GROMMET

90480-01390-00

Unavailable

10

. COVER SIDE 2

36Y-Y2172-01-1X

Unavailable

10

SIDE COVER 3

47M-W2173-01-3X

Unavailable

11

. SEAL 2

36Y-21735-00-00

Unavailable

12

. DAMPER

36Y-21747-01-00

Unavailable

13

. MOLD, SIDE COVER 2

1TX-2171M-00-00

Unavailable

13

. MOLE, SIDE COVER 2

36Y-2171M-00-00

Unavailable

14

. GRAPHIC 3

36Y-2174G-00-00

Unavailable

14

. GRAPHIC 3

47M-2174G-00-00

Unavailable

15

. GRAPHIC 1

36Y-2173E-00-00

Unavailable

15

. GRAPHIC

36Y-2173E-10-00

Unavailable

16

GROMMET(41Y)

90480-01401-00

$8.49

17

GROMMET

90480-13014-00

$8.49

18

GROMMET

90480-01390-00

Unavailable

19

COVER, SIDE 3

36Y-21731-00-AJ

Unavailable

19

COVER, SIDE 3

36Y-21731-00-GE

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE

90201-06049-00

Unavailable

23

GROMMET (1E5)

90480-13163-00

Unavailable

24

COVER, SIDE 4

36Y-21741-00-AJ

Unavailable

24

COVER, SIDE 4

36Y-21741-00-GE

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

WASHER, PLATE

90201-06049-00

Unavailable

28

GROMMET (1E5)

90480-13163-00

Unavailable

29

BOX

36Y-21245-00-00

Unavailable

30

PLATE

31A-14477-10-00

Unavailable

31

BOLT, HEXAGON

97017-06020-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

COLLAR

90387-06113-00

Unavailable

34

GROMMET (2N3)

90480-16233-00

Unavailable

35

WASHER, PLATE

90201-06747-00

Unavailable

36

NUT(6TA)

95317-06600-00

Unavailable

37

GROMMET

90480-23192-00

Unavailable

38

UNAVAILABLE IN PRICE BOOK

(36Y-2172G-00-00)

Unavailable

39

PANEL 1

(36Y-2172H-00-00)

Unavailable
