Description

Price

1

PEDAL,BRAKE

3XW-27211-01-00

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SHAFT, BRAKE PEDAL

36Y-27212-00-00

Unavailable

5

JOINT

31A-27222-00-00

$43.99

6

PIN W/HOLE 307181180000

90240-08013-00

$8.49

7

WASHER, PLATE 1562722600

90201-08083-00

$9.49

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, TENSION (2X4)

90506-20192-00

$7.49

10

MSTR CYLINDER ASSEMBLY

36Y-25850-51-00

Unavailable

11

CYLINDER KIT, MASTER

2YK-W0042-50-00

$99.99

12

. NUT

95380-08700-00

Unavailable

13

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

14

TANK, RESERVOIR

31A-25894-01-00

$19.49

15

DIAPHRAGM, RESERVER

360-25854-01-00

$23.99

16

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

17

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

HOSE, RESERVOIR

36Y-25895-00-00

Unavailable

22

BAND, HOSE 15

90601-11525-00

Unavailable

23

HOSE,BRAKE 1

99999-02515-00

Unavailable

24

BOLT, UNION(3GM)

90401-10159-00

Unavailable

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

HOLDER, BRKE HOSE 1

(36Y-25875-50-00)

Unavailable

27

SCREW PAN HEAD

98580-06020-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

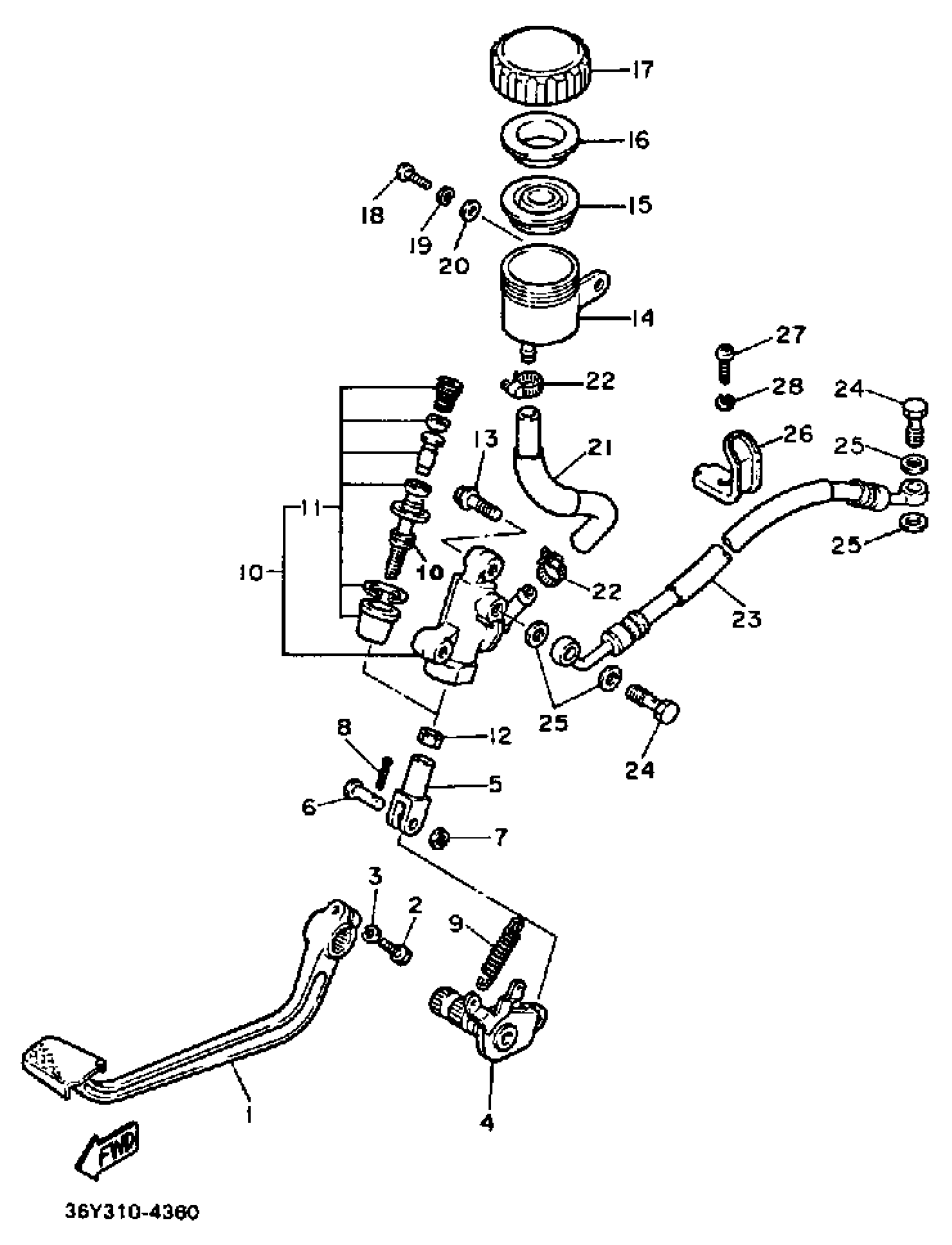

Yamaha FJ1100LC (FJ1100 CA) 1984 REAR MASTER CYLINDER Diagram

PEDAL,BRAKE

BOLT (1J7)

WASHER, SPRING

SHAFT, BRAKE PEDAL

JOINT

PIN W/HOLE 307181180000

WASHER, PLATE 1562722600

PIN, COTTER

SPRING, TENSION (2X4)

MSTR CYLINDER ASSEMBLY

CYLINDER KIT, MASTER

. NUT

BOLT, FLANGE (3JPE)

TANK, RESERVOIR

DIAPHRAGM, RESERVER

BUSH,DIAPHRAGM

CAP, RESERVOIR

SCREW PAN HEAD

WASHER, SPRING

YBS66-6 WASHER, PLAIN

HOSE, RESERVOIR

BAND, HOSE 15

HOSE,BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRKE HOSE 1

SCREW PAN HEAD

WASHER, SPRING
