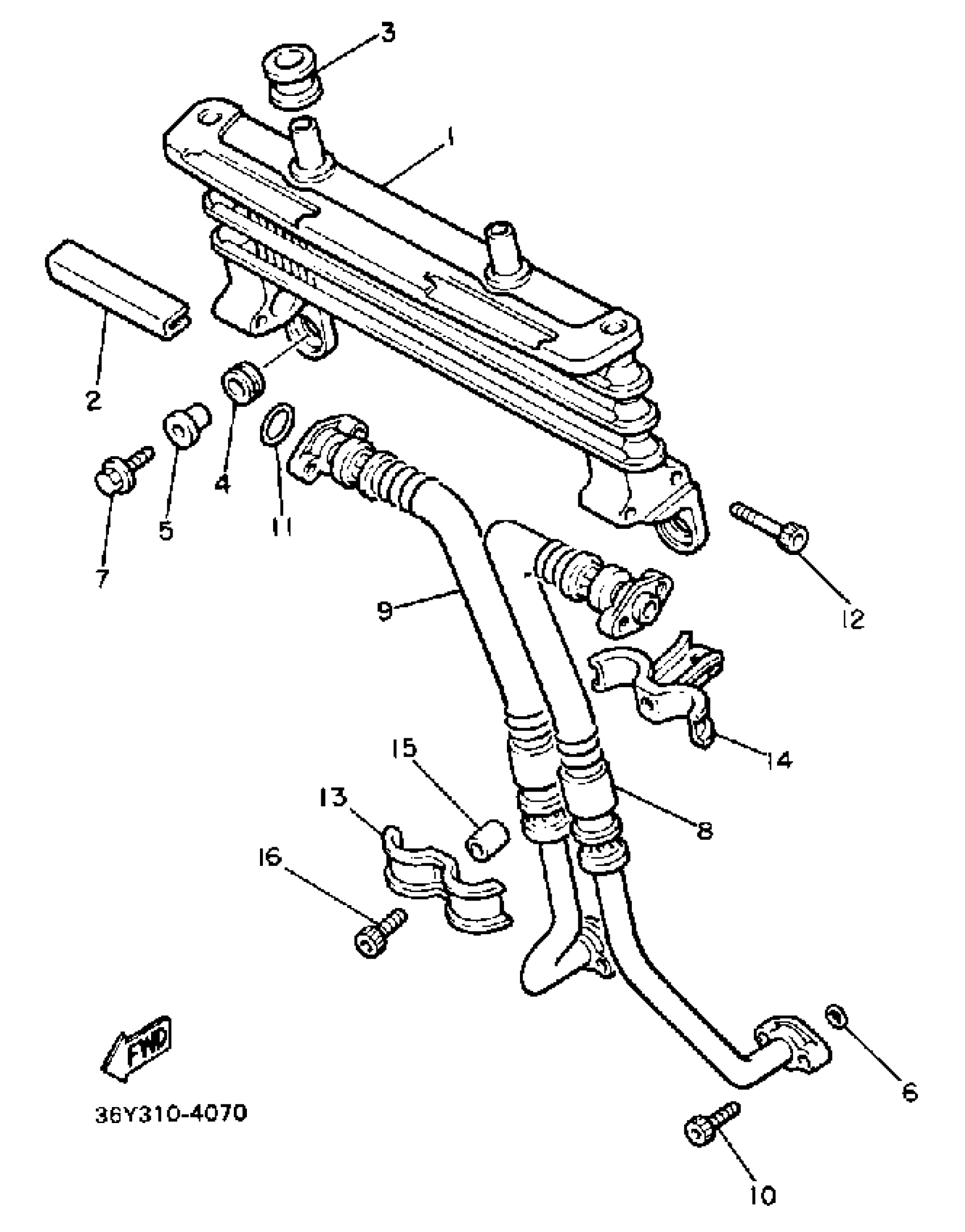

Yamaha FJ1100LC (FJ1100 CA) 1984 OIL COOLER Diagram

#

Description
Price

1

OIL COOLER ASSY

36Y-13470-01-00

Unavailable

2

DAMPER

36Y-13159-00-00

Unavailable

3

GROMMET

90480-16284-00

$11.49

4

GROMMET(2GH)

90480-12475-00

$8.49

5

COLLAR(36Y)

90387-067K8-00

$7.49

6

O-RING (26H)

93210-14579-00

$7.49

7

BOLT, FLANGE

95817-06020-00

$3.81

8

HOSE, OIL 1

36Y-13464-03-00

Unavailable

9

HOSE, OIL 2

36Y-13465-03-00

Unavailable

10

BOLT,SOCKET

91317-06020-00

Unavailable

11

O-RING (26H)

93210-16629-00

$7.49

12

BOLT,SOCKET

91317-06040-00

$3.76

13

CLAMP

90465-08250-00

Unavailable

14

CLAMP

90465-08249-00

Unavailable

15

COLLAR

90387-06088-00

$1.22

16

BOLT,SOCKET

91317-06025-00

Unavailable
