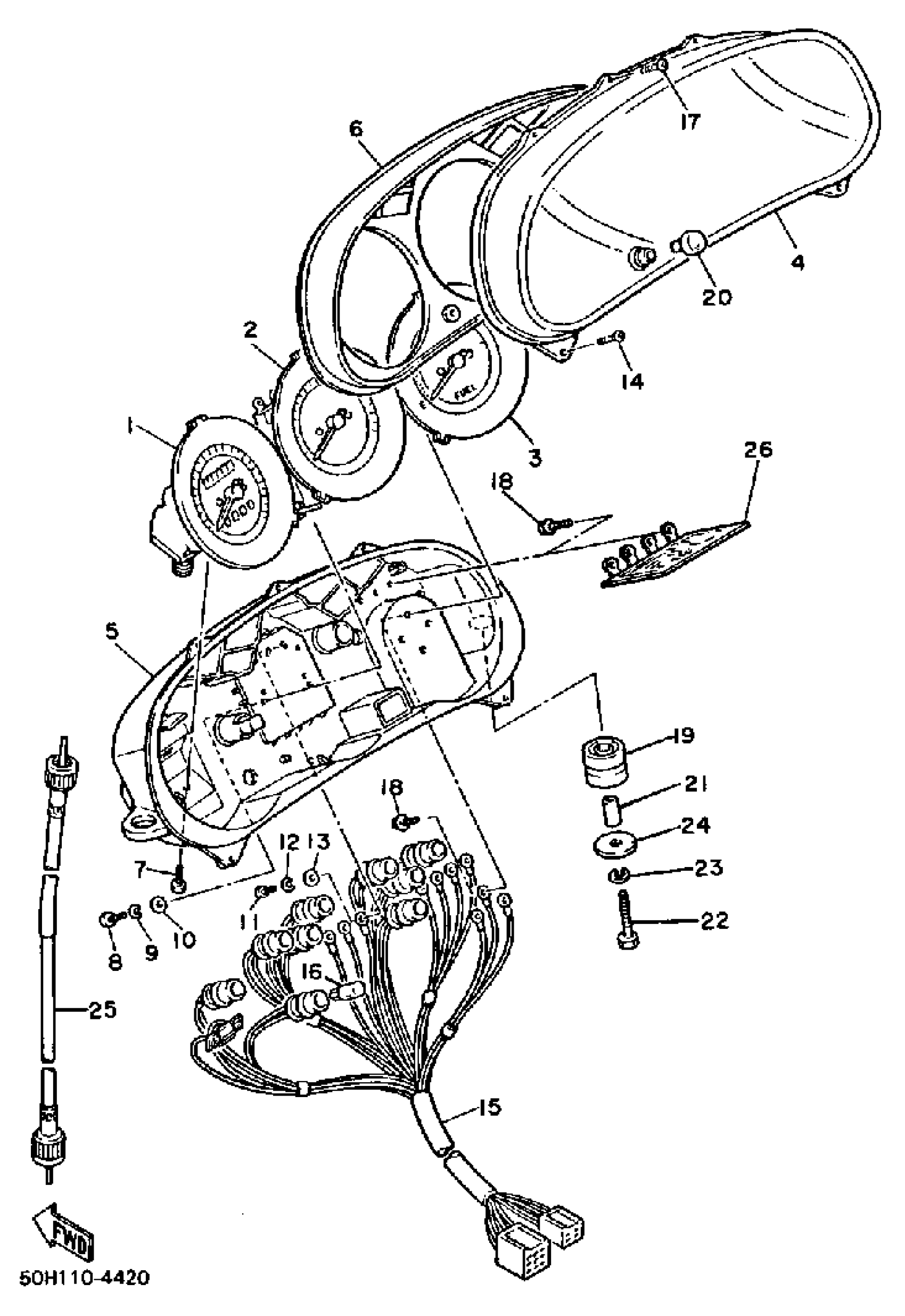

Yamaha FJ1100LC (FJ1100 CA) 1984 METER Diagram
#
Description
Price
1
SPEEDOMETER ASY
36Y-83570-G1-00
Unavailable
2
TACHOMETER ASSEMBLY
36Y-83540-01-00
Unavailable
3
FUEL METER ASSEMBLY
36Y-85750-02-00
Unavailable
4
LENS, SPEEDOMETER
36Y-83511-00-00
Unavailable
5
CASE, INNER
36Y-8353H-00-00
Unavailable
6
COVER, METER PANEL
36Y-83612-00-00
Unavailable
7
SCREW, PAN HEAD (31A)
90167-04021-00
Unavailable
8
SCREW, PAN HEAD
98511-04012-00
Unavailable
14
SCREW, TAPPING
90164-04005-00
Unavailable
15
SOCKET CORD ASSEMBLY
36Y-83509-00-00
Unavailable
16
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
17
SCREW, TAPPING(3NX)
97707-30514-00
Unavailable
18
SCREW, WITH WASHER(36Y)
90159-03102-00
Unavailable
19
DAMPER
36Y-83523-00-00
Unavailable
20
KNOB, TRIP METER
36Y-83578-00-00
Unavailable
21
COLLAR(36Y)
90387-060J4-00
Unavailable
22
BOLT (682)
97095-06040-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
WASHER, PLATE
90201-06086-00
Unavailable
25
SPEEDOMETER CABLE ASSY
16M-83550-01-00
Unavailable
26
OVER-REV LIMITER
36Y-8359J-00-00
Unavailable
