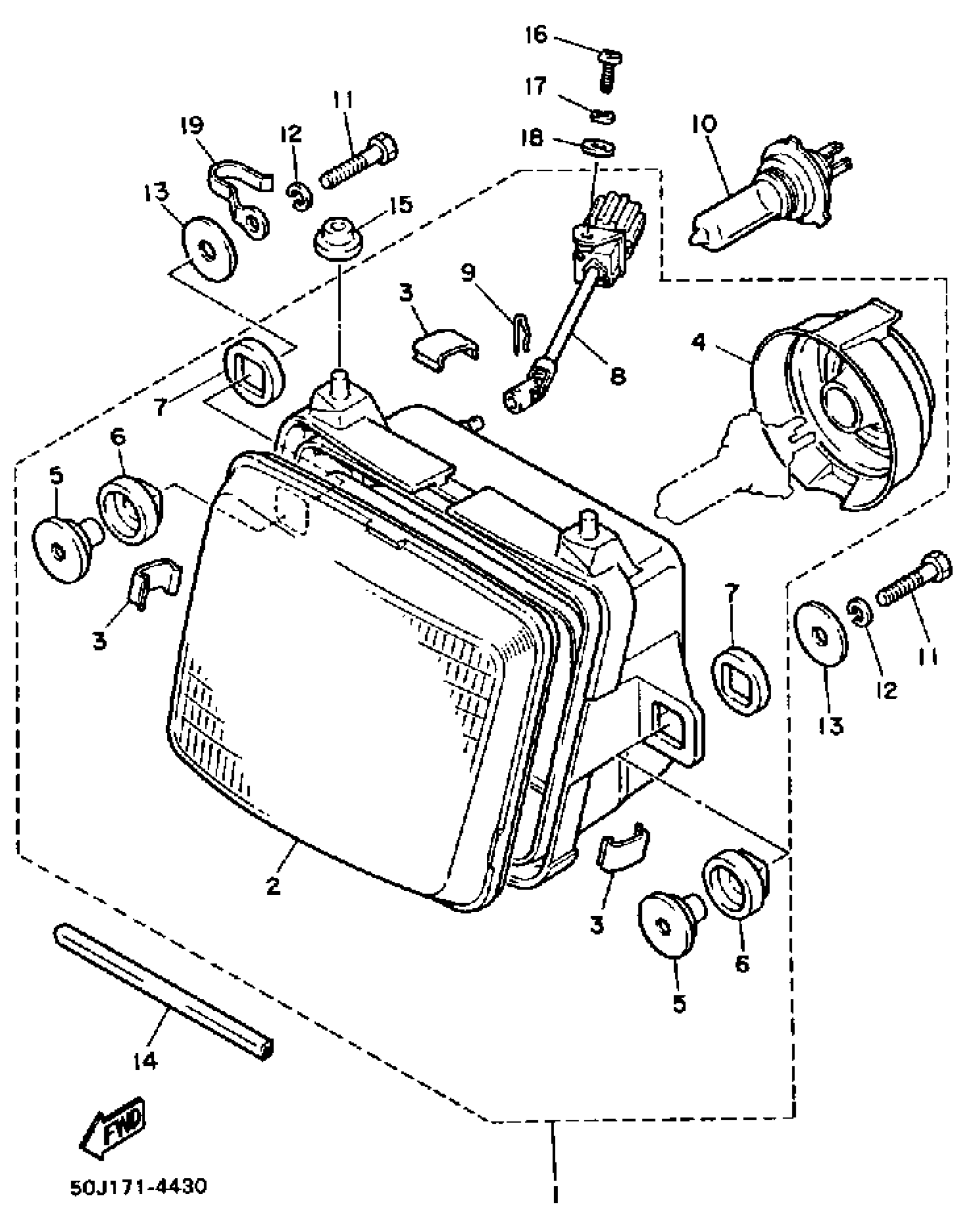

Yamaha FJ1100LC (FJ1100 CA) 1984 HEADLIGHT Diagram
#
Description
Price
1
. LENS ASSEMBLY
47M-84320-A0-00
Unavailable
2
. LENS ASSEMBLY
47M-84320-A0-00
Unavailable
3
. SPRING, REFLECTOR
36Y-84324-00-00
Unavailable
4
COVER, SOCKET
36Y-84397-00-00
Unavailable
8
. ROD ASSEMBLY
36Y-8431M-00-00
Unavailable
9
. PIN
36Y-8431V-00-00
Unavailable
14
MOLE, HEADLIGHT
36Y-84343-00-00
Unavailable
16
SCREW, PAN
98517-06012-00
Unavailable
17
WASHER, SPRING
92907-06100-00
Unavailable
18
WASHER(6TA)
92907-06200-00
Unavailable
19
CLAMP
(90462-12048-00)
Unavailable
