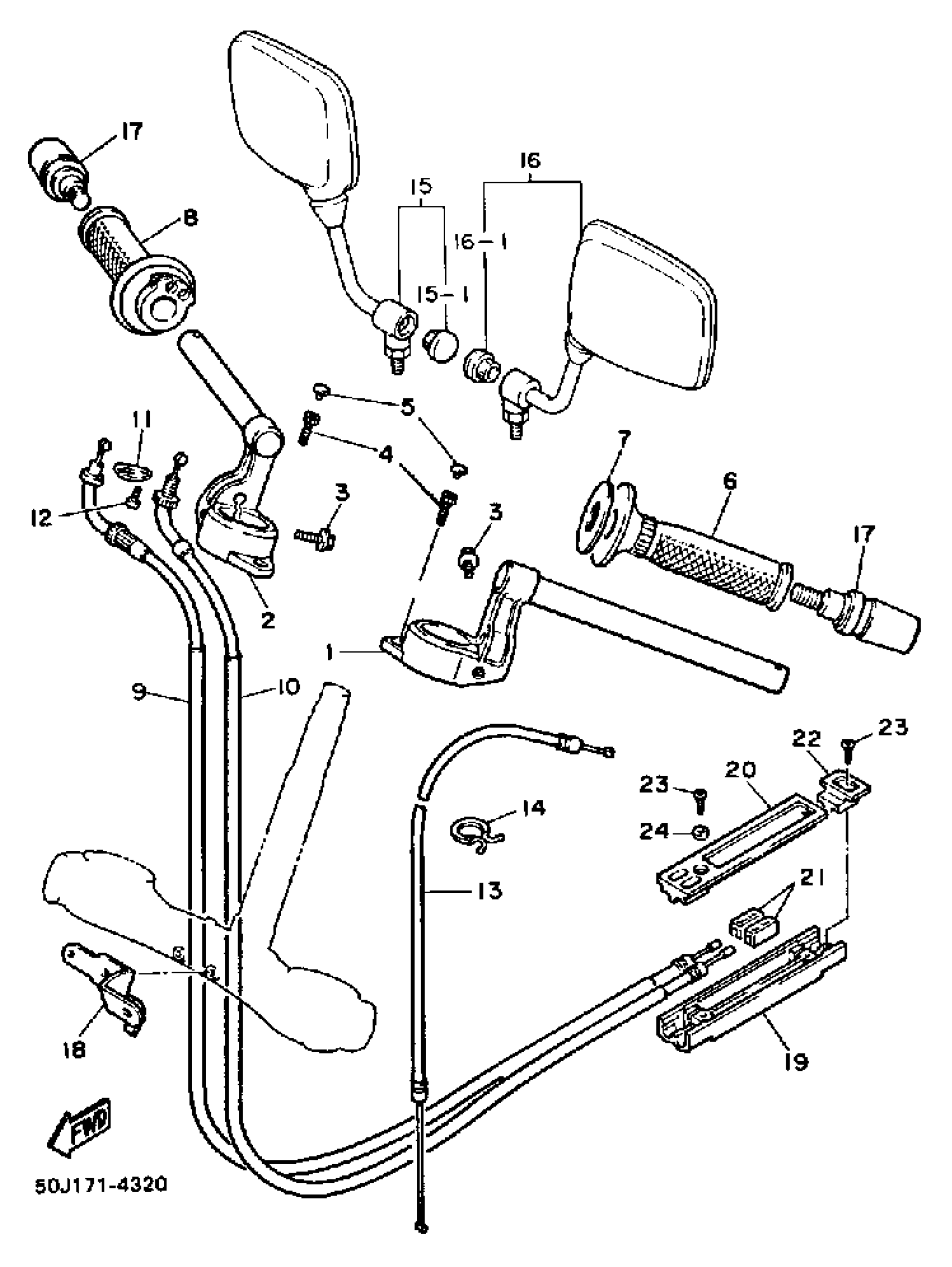

Yamaha FJ1100LC (FJ1100 CA) 1984 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR LH

36Y-26121-00-00

Unavailable

1

CAP, MIRROR

36Y-26133-00-00

Unavailable

2

HANDLEBAR RH

36Y-26122-00-00

Unavailable

3

BOLT, FLANGE(4MY)

95027-08035-00

$8.49

4

BOLT,SOCKET

91317-06016-00

$1.25

5

PLUG

90338-05010-00

$8.49

6

GRIP (L.H)

31A-26241-00-00

$37.99

7

RING, LEAF

31A-26249-00-00

Unavailable

8

GRIP ASSY

36Y-26240-00-00

Unavailable

9

CABLE, THROTTLE 1

36Y-26311-01-00

Unavailable

10

CABLE, THROTTLE 2

36Y-26312-01-00

Unavailable

11

HOLDER

5H0-26393-00-00

$7.99

12

GASKET, EXHAUST

98507-05008-00

$3.55

13

CABLE, STARTER 1

31A-26331-00-00

Unavailable

14

CLAMP

90464-25267-00

$7.49

15

REAR VIEW MIRROR ASSY(RIGHT)

36Y-26290-T0-00

Unavailable

16

MIRROR ASSEMBLY LHASSEMBLY (LEFT)

36Y-26290-G0-00

Unavailable

17

END, GRIP

36Y-26246-00-00

Unavailable

18

BRACKET, HORN

36Y-21343-00-00

Unavailable

19

CONNECTOR, CABLE

36Y-26261-00-00

Unavailable

20

CAP, CABLE CONNECTOR

36Y-26262-00-00

Unavailable

21

SLIDER, THROTTLE

26H-26244-01-00

Unavailable

22

CAP

36Y-26272-00-00

Unavailable

23

SCREW, PAN TAP.2

97707-30512-00

Unavailable

24

WASHER, PLAIN LARGE

92907-03200-00

Unavailable
