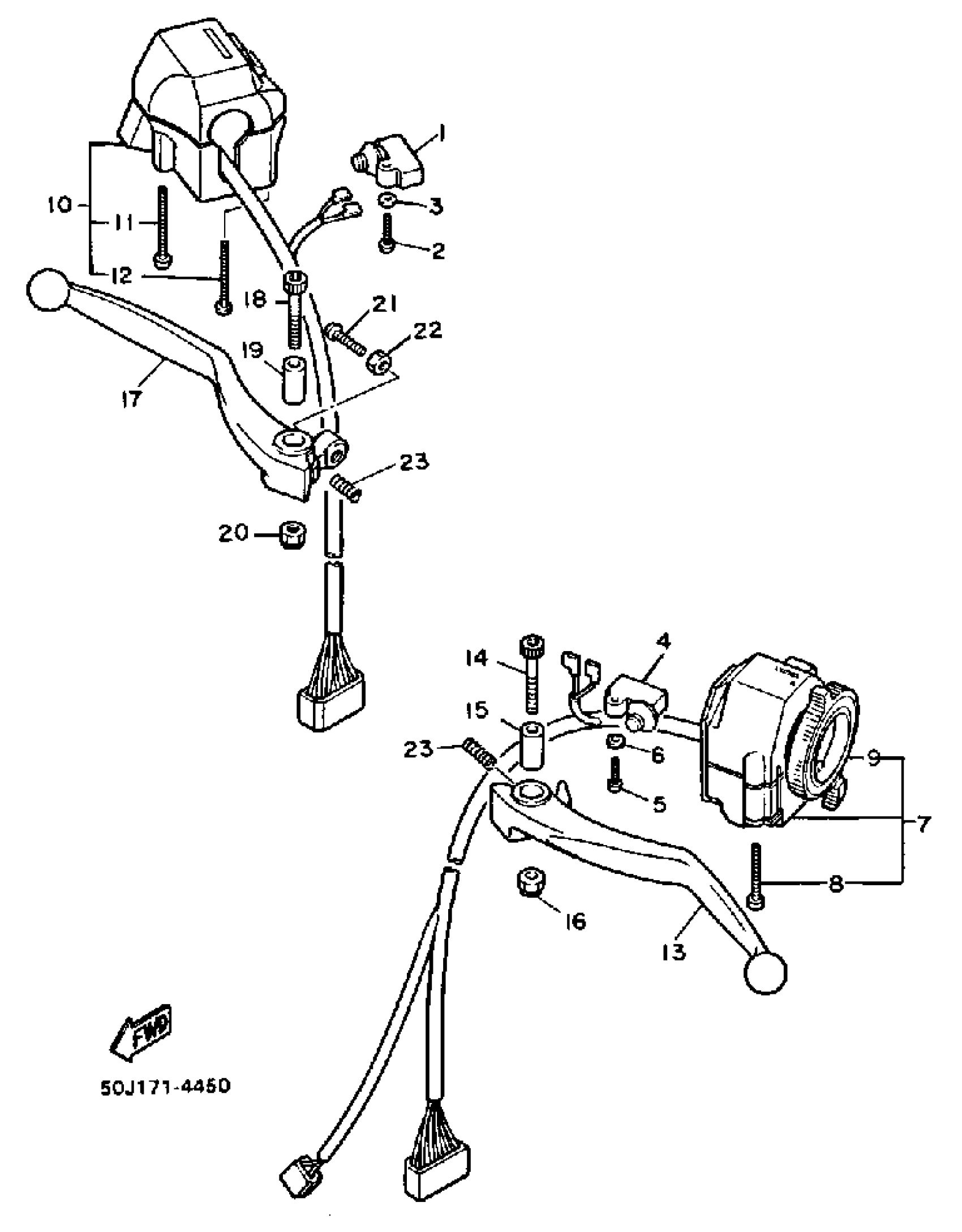

Yamaha FJ1100LC (FJ1100 CA) 1984 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, ALARM

J45-82503-01-00

Unavailable

2

SCREW, PAN HEAD

98507-04018-00

$2.19

3

WASHER(JF2)

92907-04600-00

$1.71

4

SWITCH

36Y-82917-00-00

$45.99

5

SCREW, PAN HEAD

98507-04018-00

$2.19

6

WASHER(JF2)

92907-04600-00

$1.71

7

SWITCH, HANDLE 33 (LEFT)

47M-83973-10-00

Unavailable

8

SCREW, PAN

98507-05035-00

$8.49

9

. CHOKE RING ASSEMBLY

58L-83960-00-00

Unavailable

10

SWITCH, HANDLE 2

47M-83975-01-00

Unavailable

11

SCREW, PAN

98507-05040-00

$8.49

12

SCREW, PAN

98507-05045-00

$9.49

13

LEVER L

36Y-83912-00-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD(36Y)

90110-06074-00

$8.49

15

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

16

NUT, SELF-LOCKING

95617-06100-00

Unavailable

17

LEVER 2

36Y-83922-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD(36Y)

90110-06074-00

$8.49

19

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

20

NUT, SELF-LOCKING

95617-06100-00

Unavailable

21

SCREW (2L0)

90149-06131-00

Unavailable

22

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

23

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable
