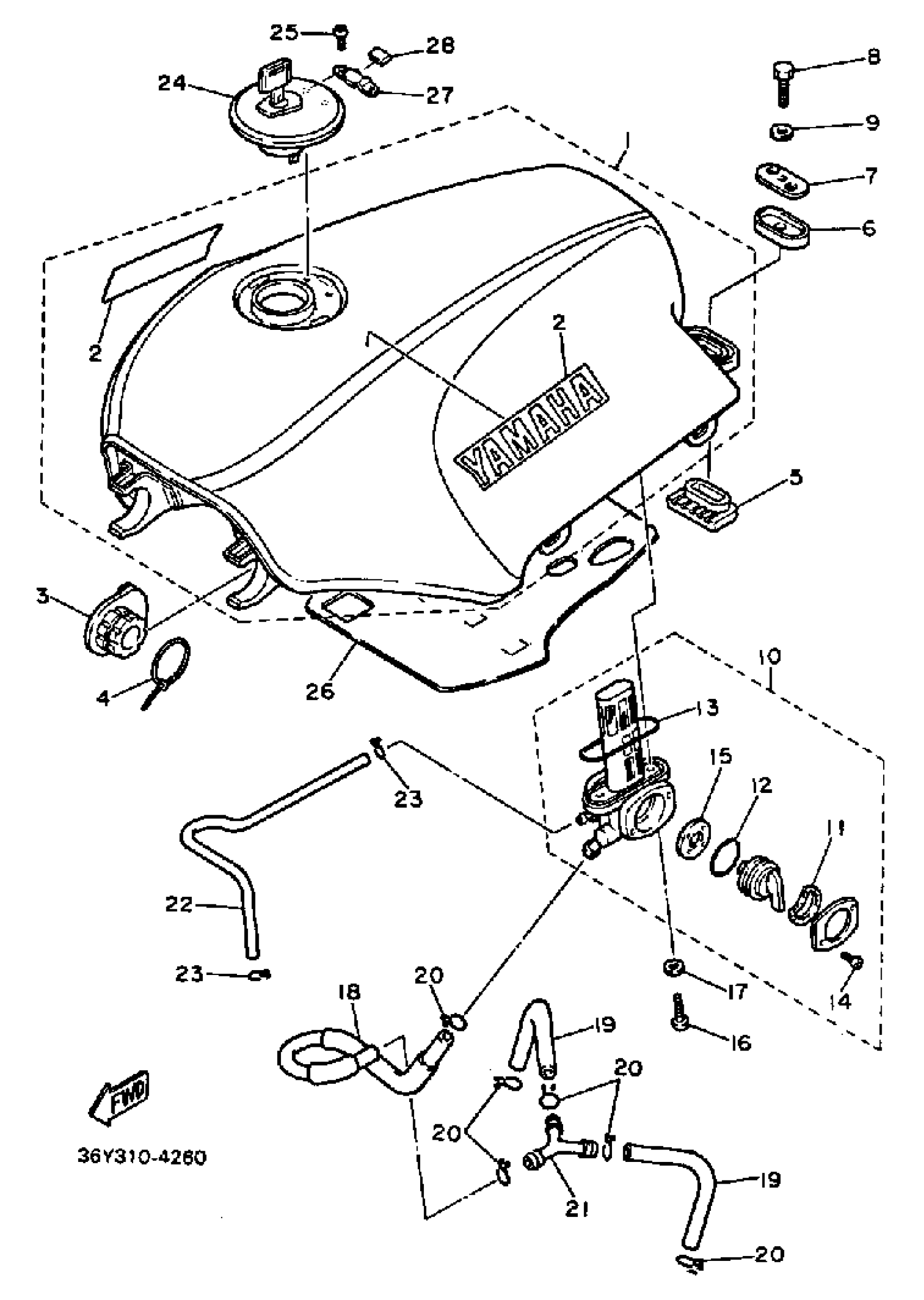

Yamaha FJ1100LC (FJ1100 CA) 1984 FUEL TANK FJ1100L N Diagram

FUEL TANK

36Y-24110-01-01

Unavailable

FUEL TANK (36Y-24110-00-03)

36Y-24110-01-03

Unavailable

EMBLEM,YAMAHA(2NA)

99243-00140-00

Unavailable

EMBLEM, YAMAHA(3XV)

99224-00160-00

$15.99

DAMPER, LOCATING 1

36Y-24181-01-00

Unavailable

CLAMP

5Y9-12491-00-00

$6.99

DAMPER, LOCATING 2

36Y-24182-00-00

Unavailable

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

WASHER, SPECIAL

36Y-24186-00-00

Unavailable

BOLT, HEXAGON

97017-06030-00

$3.61

WASHER(6TA)

92907-06600-00

$2.72

FUEL COCK ASSY 1

36Y-24500-01-00

Unavailable

. WASHER, WAVE

16G-24518-00-00

Unavailable

O-RING

2G2-24534-00-00

$8.99

O-RING

2G2-24512-00-00

$10.99

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

. VALVE

47X-24523-00-00

Unavailable

SCREW 366241430000

90149-06008-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

PIPE 2

36Y-24312-00-00

Unavailable

PIPE, FUEL 1

36Y-24311-00-00

Unavailable

CLIP (4X4)

90467-12052-00

Unavailable

PIPE, JOINT 1

36Y-24376-00-00

Unavailable

PIPE 3

36Y-24313-00-00

Unavailable

CLIP (16G)

90467-08021-00

Unavailable

CAP ASSEMBLY 001

50H-24602-03-00

Unavailable

CAP ASSEMBLY 001

50H-24602-03-00

Unavailable

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

SEAL, AIR SHROUD 1

3CV-24125-00-00

Unavailable

COVER,HINGE

36Y-24669-01-00

Unavailable

DAMPER

36Y-24665-00-00

Unavailable
