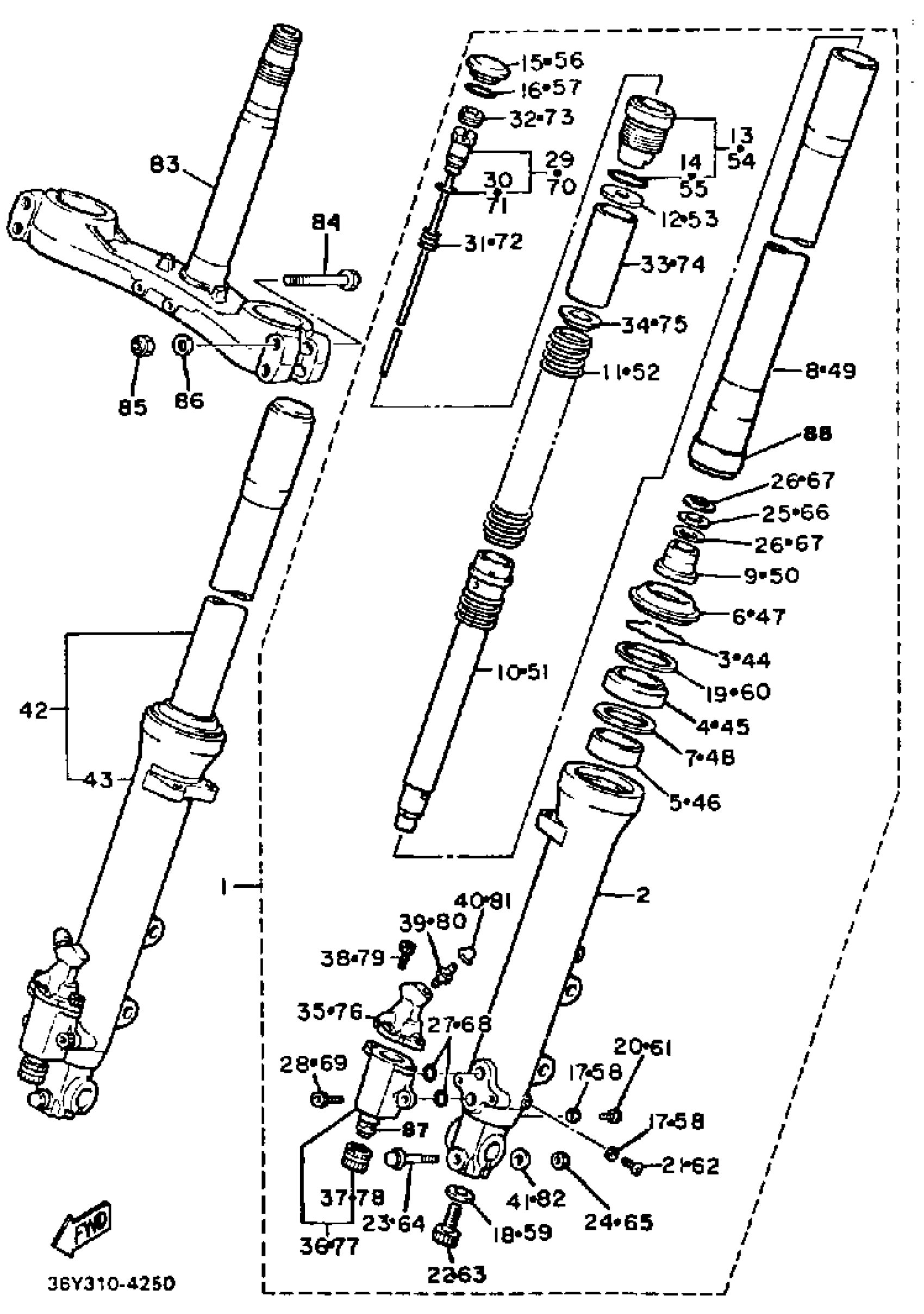

Yamaha FJ1100LC (FJ1100 CA) 1984 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L (L.H.)

36Y-23102-00-00

Unavailable

1

FRONT FORK ASSEMBLY L (LH) (36Y-23102-10)

36Y-23102-11-00

Unavailable

2

. TUBE, OUTER 1

36Y-23126-00-00

Unavailable

3

CLIP, OIL SEAL

26H-23156-00-00

$7.99

4

OIL SEAL

3SP-23145-L0-00

$29.99

5

METAL, SLIDE 1

4FM-23125-40-00

$33.99

6

SEAL, DUST

3XV-23144-50-00

Unavailable

7

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

8

. INNER TUBE 1

3CV-23110-00-00

Unavailable

9

. SPINDLE, TAPER

36Y-23173-00-00

Unavailable

10

. CYLINDER, FRTFRKFRONT FORK

36Y-23170-00-00

Unavailable

11

. SPRING, FRONT FORK

36Y-23141-00-00

Unavailable

11

. SPRING, FR FRK HARD

36Y-23141-10-00

Unavailable

12

. WASHER, SPRING UPR

36Y-23149-00-00

Unavailable

13

. CAP

36Y-2319U-00-00

Unavailable

14

.. O-RING

36Y-23147-00-00

Unavailable

15

CAP

36Y-2319W-00-00

Unavailable

16

. GASKET

36Y-23114-00-00

Unavailable

17

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

18

GASKET

4V4-23158-L0-00

Unavailable

19

. GASKET, UPPER CVR 1UPPER COVER 1

36Y-23137-00-00

Unavailable

20

. BOLT, HEX SCKT HEAD

1TX-23181-00-00

Unavailable

21

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

22

BOLT

4V4-23181-L0-00

Unavailable

23

. BOLT, AXLE HOLDER

36Y-23128-00-00

Unavailable

24

NUT, U

95617-08100-00

Unavailable

25

. WASHER

36Y-2319L-00-00

Unavailable

26

. SPRING, VALVE

36Y-2319M-00-00

Unavailable

27

O-RING

22N-23147-00-00

Unavailable

28

BOLT, SOCKET

91314-06016-00

Unavailable

29

. ROD

36Y-2330G-00-00

Unavailable

30

. O-RING

36Y-23147-10-00

Unavailable

31

. SPRING, SUB

36Y-23152-00-00

Unavailable

32

. NUT

36Y-23357-00-00

Unavailable

33

SPACER

(36Y-23118-00-00)

Unavailable

34

. SEAT, SPRING UPPER

36Y-23142-00-00

Unavailable

35

. BRAKE PLNGR ASSEMBLY 1ASSEMBLY 1

36Y-2319F-00-00

Unavailable

36

. DAMPER PISTON ASSEMBLYASSY

36Y-2319E-00-00

Unavailable

37

.. CAP, AIR VALVE

36Y-23184-00-00

Unavailable

38

BOLT, SOCKET

91314-05012-00

Unavailable

39

. BREATHER, AIR (26H-2319V-00-00)

1TX-2319V-00-00

Unavailable

40

. CAP

26H-2319W-00-00

Unavailable

41

.. WASHER, PLATE

92990-08600-00

Unavailable

42

FRONT FORK ASSEMBLY RASS''Y (R.H.)

36Y-23103-00-00

Unavailable

42

FRONT FORK ASSEMBLY R (RH) (36Y-23103-10)

36Y-23103-11-00

Unavailable

43

. TUBE, OUTER 2

36Y-23136-00-00

Unavailable

44

CLIP, OIL SEAL

26H-23156-00-00

$7.99

45

OIL SEAL

3SP-23145-L0-00

$29.99

46

METAL, SLIDE 1

4FM-23125-40-00

$33.99

47

SEAL, DUST

3XV-23144-50-00

Unavailable

48

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

49

. INNER TUBE 1

3CV-23110-00-00

Unavailable

50

. SPINDLE, TAPER

36Y-23173-00-00

Unavailable

51

. CYLINDER, FRTFRKFRONT FORK

36Y-23170-00-00

Unavailable

52

. SPRING, FRONT FORK

36Y-23141-00-00

Unavailable

52

. SPRING, FR FRK HARD

36Y-23141-10-00

Unavailable

53

. WASHER, SPRING UPR

36Y-23149-00-00

Unavailable

54

. CAP

36Y-2319U-00-00

Unavailable

55

.. O-RING

36Y-23147-00-00

Unavailable

56

CAP

36Y-2319W-00-00

Unavailable

57

. GASKET

36Y-23114-00-00

Unavailable

58

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

59

GASKET

4V4-23158-L0-00

Unavailable

60

. GASKET, UPPER CVR 1UPPER COVER 1

36Y-23137-00-00

Unavailable

61

. BOLT, HEX SCKT HEAD

1TX-23181-00-00

Unavailable

62

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

63

BOLT

4V4-23181-L0-00

Unavailable

64

. BOLT, AXLE HOLDER

36Y-23128-00-00

Unavailable

65

NUT, U

95617-08100-00

Unavailable

66

. WASHER

36Y-2319L-00-00

Unavailable

67

. SPRING, VALVE

36Y-2319M-00-00

Unavailable

68

O-RING

22N-23147-00-00

Unavailable

69

BOLT, SOCKET

91314-06016-00

Unavailable

70

. ROD

36Y-2330G-00-00

Unavailable

71

. O-RING

36Y-23147-10-00

Unavailable

72

. SPRING, SUB

36Y-23152-00-00

Unavailable

73

. NUT

36Y-23357-00-00

Unavailable

74

SPACER

(36Y-23118-00-00)

Unavailable

75

. SEAT, SPRING UPPER

36Y-23142-00-00

Unavailable

76

. BRAKE PLUNGER ASSEMBLY2ASSY 2

36Y-2319G-00-00

Unavailable

77

. DAMPER PISTON ASSEMBLYASSY

36Y-2319E-00-00

Unavailable

78

.. CAP, AIR VALVE

36Y-23184-00-00

Unavailable

79

BOLT, SOCKET

91314-05012-00

Unavailable

80

. BREATHER, AIR (26H-2319V-00-00)

1TX-2319V-00-00

Unavailable

81

. CAP

26H-2319W-00-00

Unavailable

82

.. WASHER, PLATE

92990-08600-00

Unavailable

83

UNDER BRACKET

36Y-23340-00-00

Unavailable

84

BOLT

97021-08065-00

Unavailable

85

NUT, U

95617-08100-00

Unavailable

86

.. WASHER, PLATE

92990-08600-00

Unavailable

87

.. SLEEV SET, DAMP FFK SET

36Y-W0009-00-00

Unavailable

88

BUSH

36Y-23171-00-00

Unavailable
