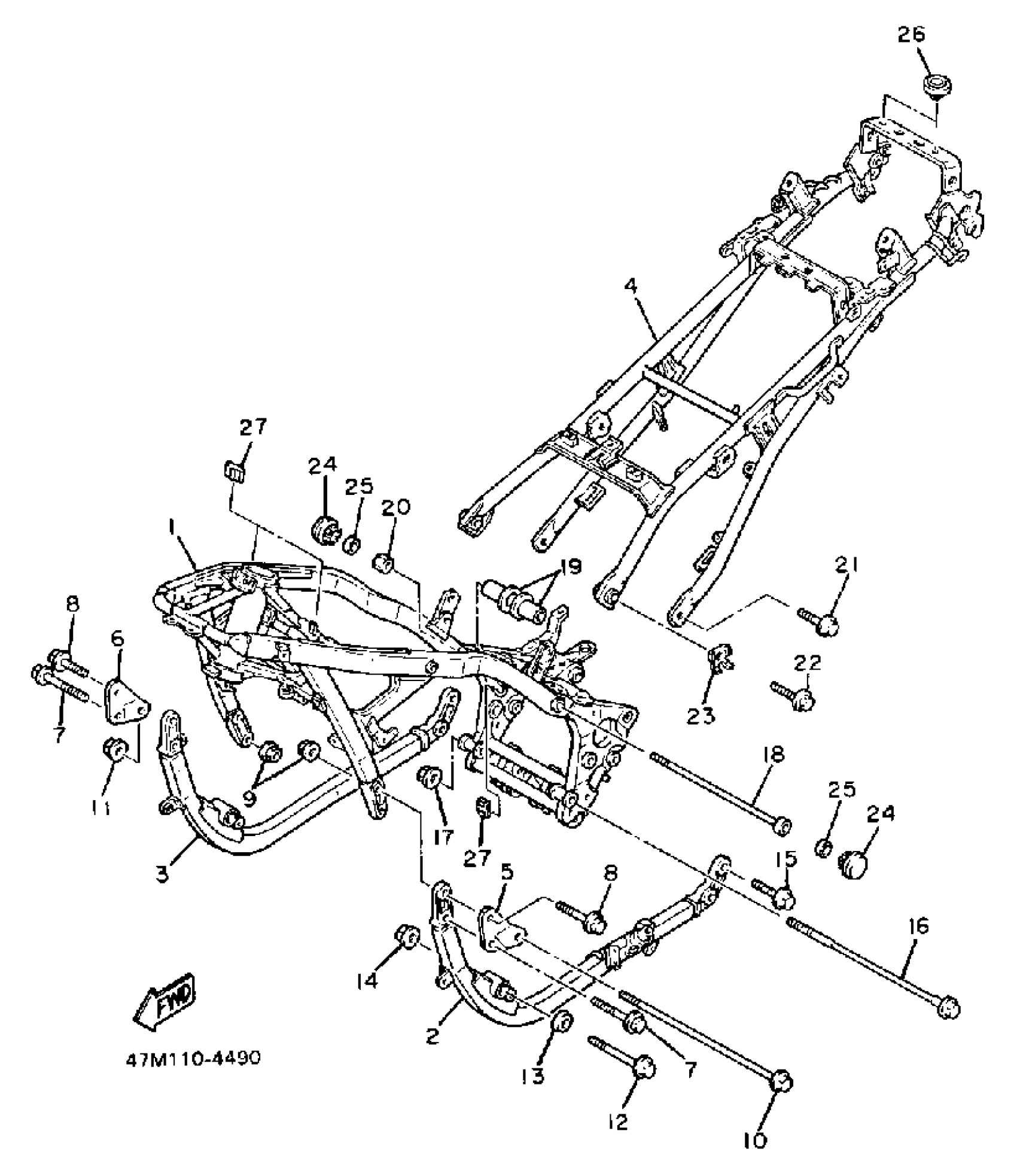

Yamaha FJ1100LC (FJ1100 CA) 1984 FRAME FJ1100LC NC Diagram

#

Description
Price

15

BOLT, FLANGE

95817-08035-00

$6.22

16

BOLT, WASHER BASED

90105-12314-00

Unavailable

17

NUT(3EF)

90179-12657-00

$4.96

18

BOLT, HEX SKT HEAD

90110-10073-00

Unavailable

19

COLLAR

90387-101V2-00

Unavailable

20

NUT

90179-10013-00

$7.64

21

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80

22

BOLT (583)

90101-10303-00

$5.81

23

WASHER, LOCK

36Y-21491-00-00

Unavailable

24

CAP ASSEMBLY

36Y-21470-00-00

Unavailable

25

DAMPER, RUBBER 1

36Y-21485-00-00

Unavailable

26

PAD, SEAT

1L9-24741-00-00

$8.31

27

DAMPER, SIDE COVER

15A-21717-00-00

$6.36
