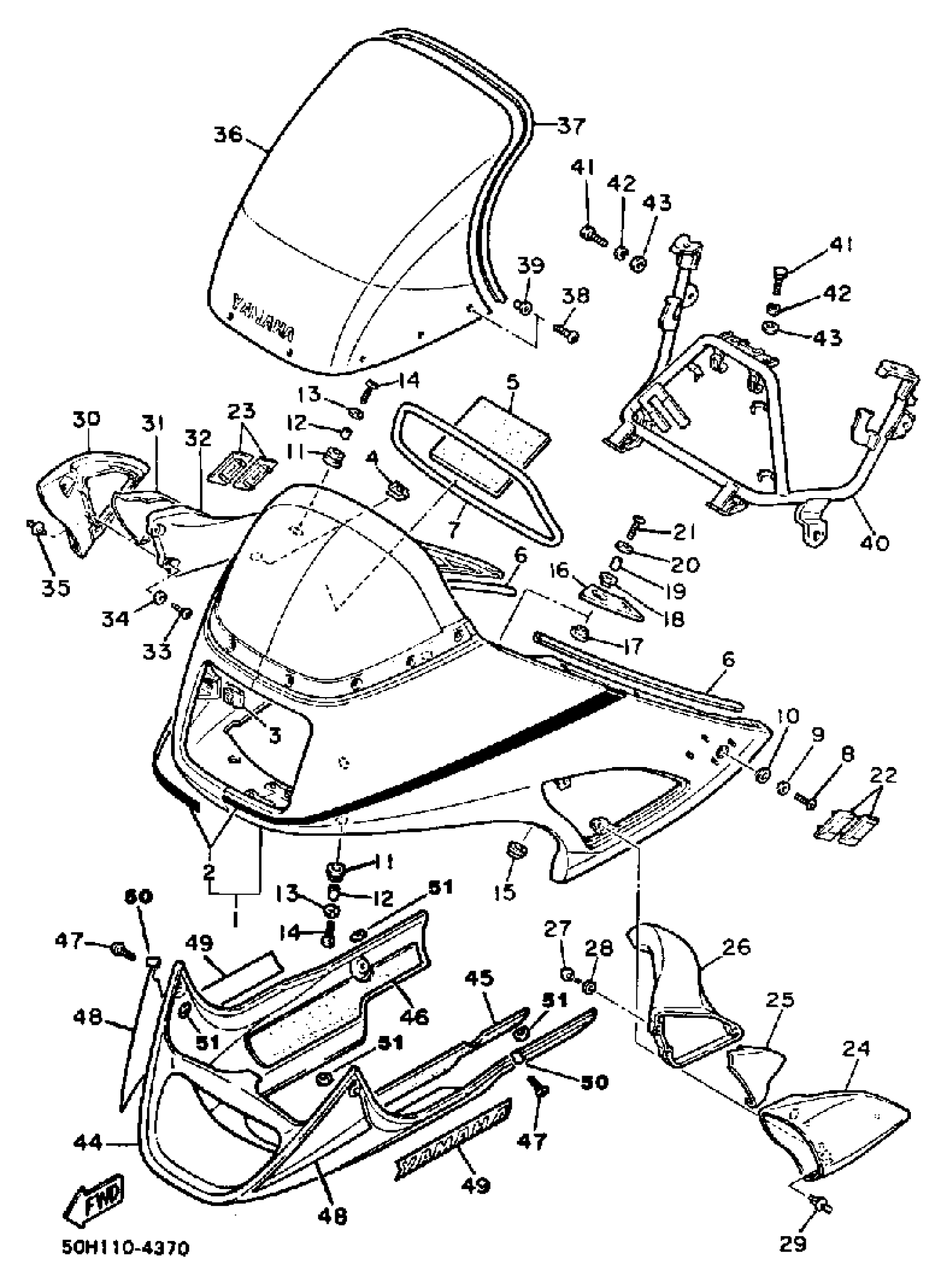

Yamaha FJ1100LC (FJ1100 CA) 1984 FAIRING 1 Diagram
#
1
COWLING
50H-Y2835-00-3X
Unavailable
1
COWLING ASSEMBLY
50H-Y2835-10-1X
Unavailable
2
. GRPHC SET, COWLING COWLING
47M-28390-00-00
Unavailable
2
. GRAPHICSET, COWLING COWLING
47M-28390-10-00
Unavailable
3
NUT
36Y-28363-00-00
Unavailable
4
NUT
36Y-28364-00-00
Unavailable
5
DAMPER
36Y-28371-00-00
Unavailable
6
MOLD 2
36Y-28346-00-00
Unavailable
9
WASHER, PLATE
90201-06M08-00
Unavailable
10
WASHER, LEG SHIELD
36Y-28323-00-00
Unavailable
14
SCREW, ROUND HEAD(3JM)
90150-06037-00
Unavailable
15
GROMMET
90480-01405-00
Unavailable
16
LID 1
36Y-2839K-00-00
Unavailable
17
GROMMET
90480-16402-00
Unavailable
18
GROMMET
90480-16403-00
Unavailable
21
SCREW, ROUND HEAD(3JM)
90150-06037-00
Unavailable
22
PROTECTOR 1
36Y-2832M-00-00
Unavailable
23
PROTECTOR 2
36Y-2832N-00-00
Unavailable
24
GRILL, AIR INTAKE 1
36Y-2837N-00-1U
Unavailable
24
GRILL, AIR INTAKE
36Y-2837N-00-AJ
Unavailable
25
DUCT 3
36Y-2838T-00-00
Unavailable
26
DUCT 1
36Y-2838N-00-00
Unavailable
27
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
28
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
29
RIVET (36Y)
36Y-28387-00-00
Unavailable
30
GRILL, AIR INTAKE 2
36Y-2837R-00-1U
Unavailable
30
GRILL, AIR INTAKE 2
36Y-2837R-00-AJ
Unavailable
31
DUCT 4
36Y-2838U-00-00
Unavailable
32
DUCT 2
36Y-2838R-00-00
Unavailable
33
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
34
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
35
RIVET (36Y)
36Y-28387-00-00
Unavailable
36
WINDSHIELD
50J-28381-00-00
Unavailable
37
TRIM
29L-28376-00-00
Unavailable
38
SCREW, SPEC''L SHAPE
90149-05199-00
Unavailable
39
NUT(1UX)
90179-05525-00
Unavailable
40
STAY 2
36Y-28359-00-00
Unavailable
41
BOLT (661)
97013-06012-00
Unavailable
42
WASHER, SPRING
92995-06100-00
Unavailable
43
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
44
COVER, LOWER
36Y-28385-00-AJ
Unavailable
44
COVER, LOWER
36Y-28385-00-GE
Unavailable
45
SEAT 2
36Y-2848K-00-00
Unavailable
46
SEAT 3
36Y-2848L-00-00
Unavailable
47
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
48
GRAPHICSET, LWR-CVR
36Y-28301-00-00
Unavailable
48
GRAHIC SET, LWR CVR
47M-28301-00-00
Unavailable
49
GRAPHIC 5
36Y-28398-00-00
Unavailable
49
GRAPHIC 5
47M-28398-00-00
Unavailable
50
COLLAR
90387-06701-00
Unavailable
51
WASHER, PLATE(31K)
90202-11161-00
Unavailable
