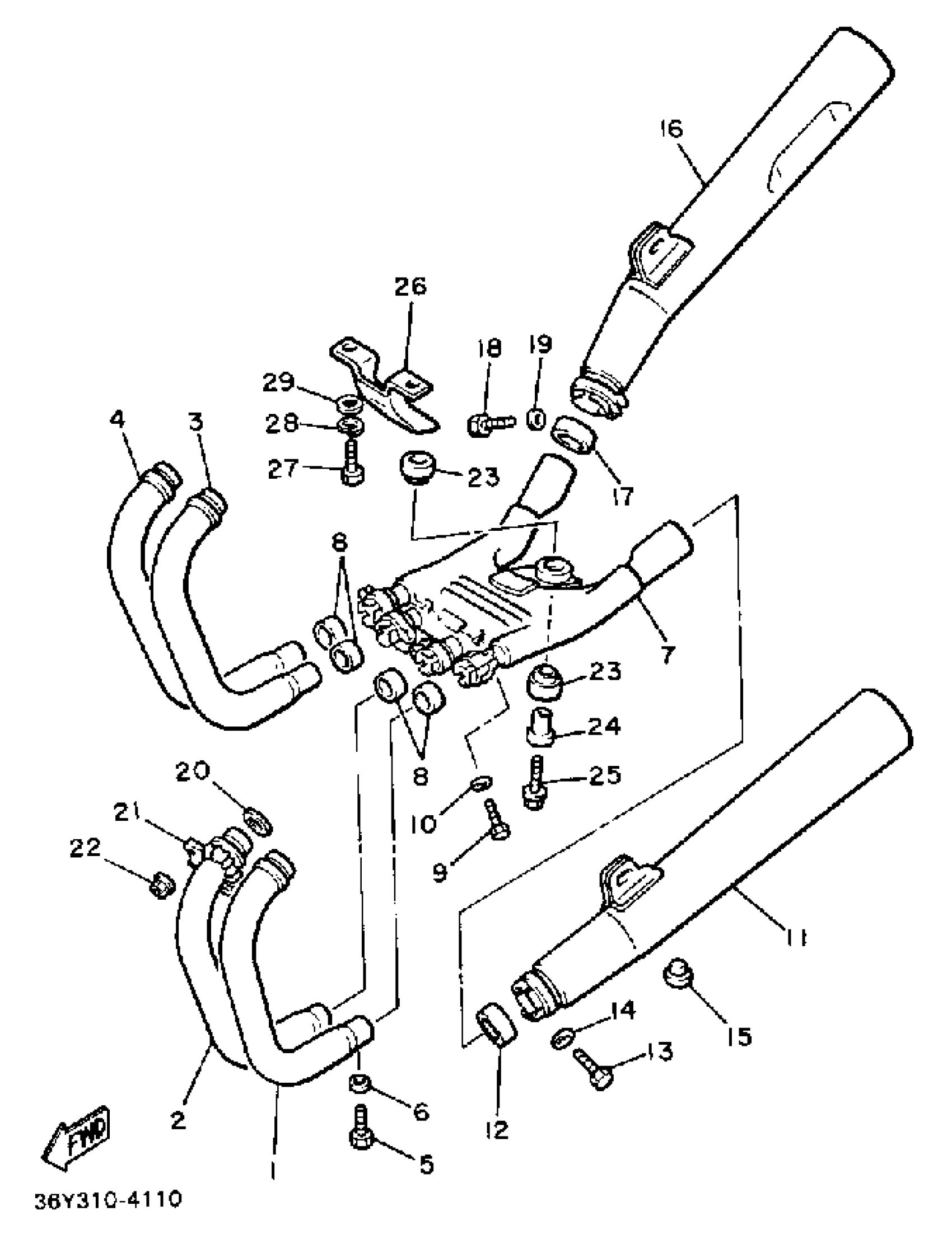

Yamaha FJ1100LC (FJ1100 CA) 1984 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

36Y-14611-00-00

Unavailable

2

PIPE, EXHAUST R

36Y-14621-00-00

Unavailable

3

PIPE, EXHAUST 3

36Y-14631-00-00

Unavailable

4

PIPE, EXHAUST 4

36Y-14641-00-00

Unavailable

5

BOLT (11T)

90101-06576-00

$8.49

6

WASHER(6TA)

92907-06600-00

$2.72

7

JOINT, EXHAUST L

36Y-14615-00-00

Unavailable

8

GASKET, SILENCER

3XW-14755-00-00

Unavailable

9

BOLT, HEXAGON

97013-08020-00

$1.16

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

MUFFLER L

47M-14711-00-00

Unavailable

12

GASKET, MUFFLER

3XW-14714-00-00

$37.99

13

BOLT, HEXAGON

97017-08025-00

$10.49

14

WASHER(6TA)

92907-08600-00

$3.03

15

STOPPER, MAIN STAND

371-27114-00-00

$7.99

16

MUFFLER R

47M-14721-00-00

Unavailable

17

GASKET, MUFFLER

3XW-14714-00-00

$37.99

18

BOLT, HEXAGON

97017-08025-00

$10.49

19

WASHER(6TA)

92907-08600-00

$3.03

20

GASKET, EXHAUST PIPE

4BE-14613-00-00

Unavailable

21

NUT, RING

36Y-14612-00-00

Unavailable

22

NUT, SPEC''L SHAPE

90179-08345-00

Unavailable

23

DAMPER, MUFFLER

36Y-14747-00-00

Unavailable

24

COLLAR

4G0-14638-00-00

Unavailable

25

BOLT, FLANGE

95814-10040-00

Unavailable

26

STAY, MUFFLER

36Y-14791-00-00

Unavailable

27

BOLT (682)

97013-08025-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

29

.. WASHER, PLATE

92990-08600-00

Unavailable
