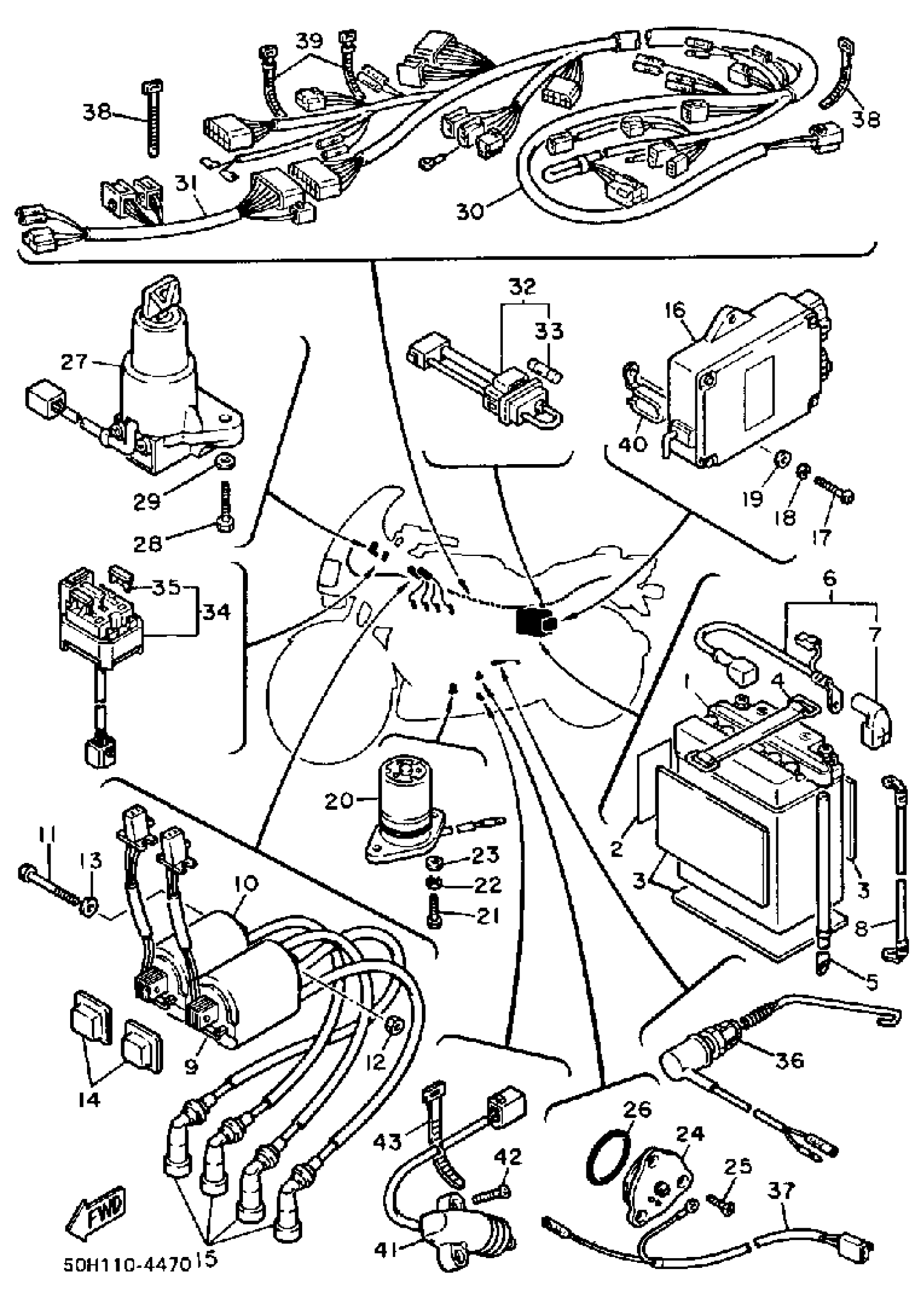

Yamaha FJ1100LC (FJ1100 CA) 1984 ELECTRICAL 2 Diagram

#

Description
Price

1

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

SEAT, BATTERY

5Y1-82122-00-00

$7.99

4

BAND, BATTERY

2T4-82131-00-00

$8.99

5

HOSE (L1500)

90445-084J0-00

$18.99

6

WIRE, PLUS LEAD

1TX-82115-00-00

Unavailable

7

. COVER, LEAD WIRE

4X7-82119-00-00

Unavailable

8

WIRE, MINUS LEAD (J14-82116-00-00)

J56-H2116-00-00

Unavailable

9

IGNITION COIL ASSY

1AA-82310-09-00

Unavailable

10

IGNITION COIL ASSY

1AA-82310-09-00

Unavailable

11

BOLT(62J)

97013-06070-00

Unavailable

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

DAMPER, IGNITION COIL

4U8-82317-00-00

Unavailable

15

PLUG CAP ASSY

3NS-82370-00-00

$37.99

16

IGNITOR UNIT ASY 1

1UX-82305-10-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

20

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

Unavailable

21

BOLT(3DM)

97024-06020-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

24

NEUTRAL SWITCH ASSY

1L9-82540-00-00

Unavailable

25

SCREW, FLAT

98707-05012-00

Unavailable

26

O-RING (371)

93210-29196-00

Unavailable

27

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

29

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

30

WIRE HARNESS ASSEMBLYASSY

47M-82590-51-00

Unavailable

31

WIRE HARNESS ASSEMBLY 2ASSEMBLY 2

36Y-82580-00-00

Unavailable

32

FUSE HOLDER ASSEMBLY

3H5-82150-00-00

Unavailable

33

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

34

FUSE BOX ASSEMBLY

36Y-82170-01-00

Unavailable

35

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

36

STOP SWITCH ASSEMBLY

36Y-82530-02-00

Unavailable

37

WIRE, SUB LEAD

36Y-82509-00-00

Unavailable

38

BAND, SWITCH CORD

437-83936-01-00

Unavailable

39

BAND, SWITCH CORD

437-83936-11-00

Unavailable

40

CLAMP(MF1)

90464-15152-00

Unavailable

41

SWITCH, SIDE STAND

3A3-82566-10-00

Unavailable

42

SCREW, FLAT

98707-05016-00

Unavailable

43

BAND

341-26397-01-00

Unavailable
