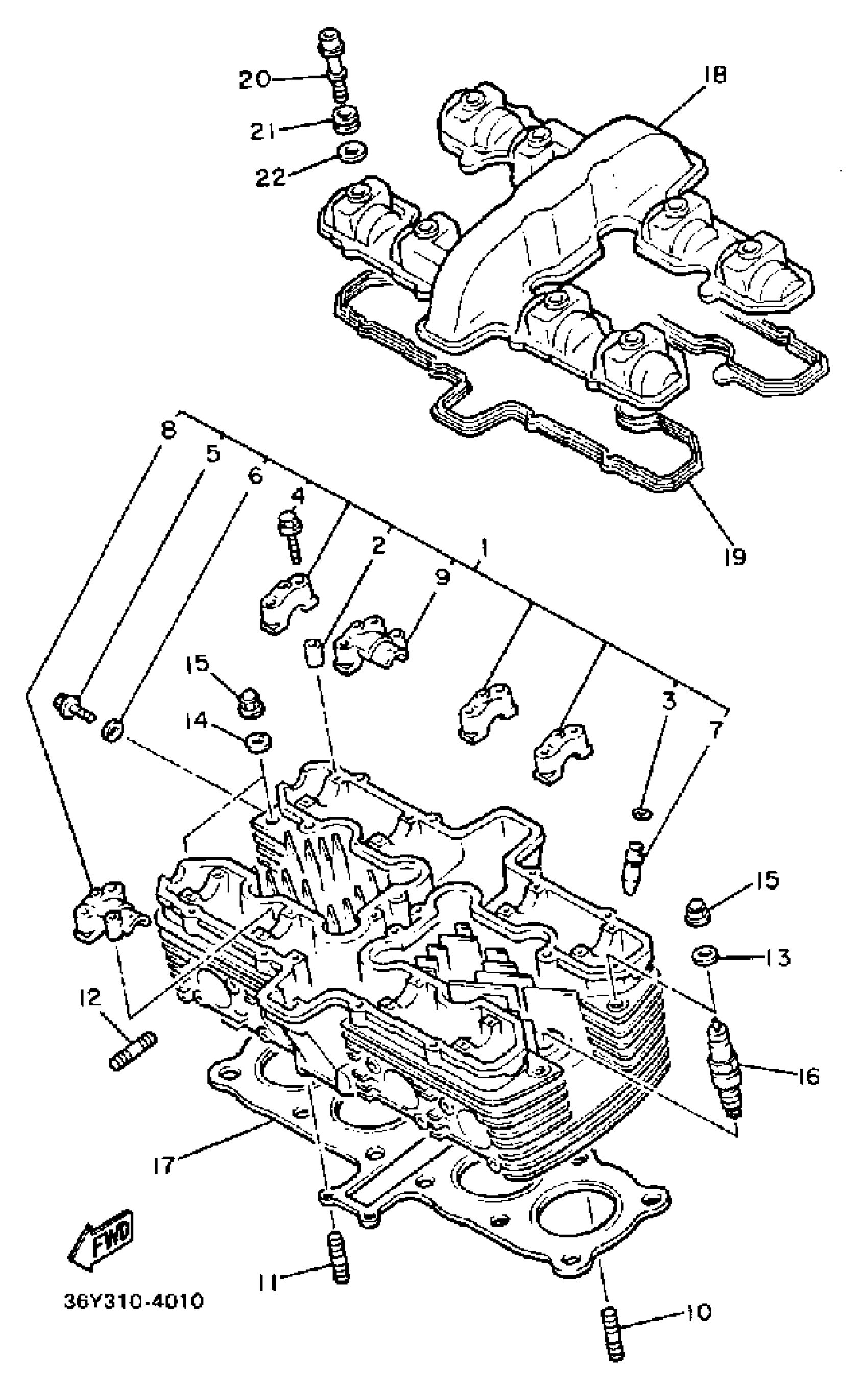

Yamaha FJ1100LC (FJ1100 CA) 1984 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

36Y-11101-05-00

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$8.49

3

CIRCLIP (22F)

93440-10109-00

$8.49

4

BOLT, WASHER BASED(36Y)

90105-06305-00

$1.54

5

SCREW

90153-06029-00

$10.49

6

GASKET 256113960000

90430-06014-00

Unavailable

7

GUIDE, INTAKE VALVE (1ST O/S)

36Y-11133-10-00

$48.99

8

CAP, CAMSHAFT 3

36Y-12193-10-00

Unavailable

9

CAP, CAMSHAFT 4

36Y-12178-10-00

Unavailable

10

BOLT, STUD 3

95617-06625-00

$8.49

11

BOLT, STUD(1FW)

90116-06466-00

$4.51

12

BOLT, STUD 3

95617-08635-00

$5.60

13

WASHER, PLATE (26H)

90201-102G9-00

$9.49

14

WASHER PLATE 341839090000

90201-10128-00

$4.82

15

NUT, CROWN

90176-10053-00

Unavailable

16

DP8EA9 NGK SPLUG 10PK

DP8-EA900-00-00

Unavailable

17

GASKET, CYLINDER HEAD 1

36Y-11181-00-00

Unavailable

18

COVER, CYLINDER.HEAD 1

36Y-11191-01-00

Unavailable

19

GASKET, HEAD COVER 1

5WM-11193-00-00

Unavailable

20

BOLT(3TJ)

90109-064F0-00

Unavailable

21

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable

22

WASHER(46X)

90209-11262-00

Unavailable
