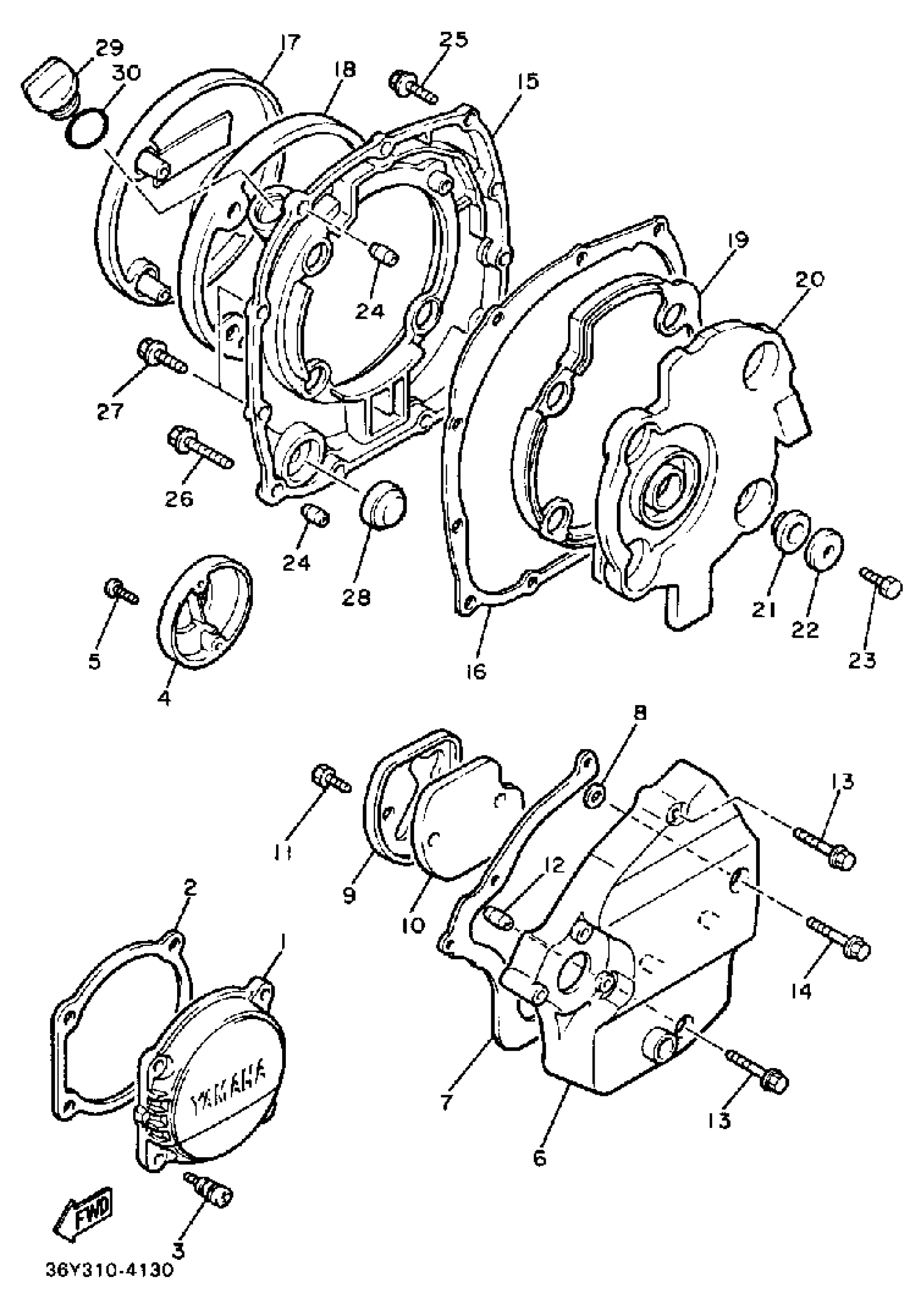

Yamaha FJ1100LC (FJ1100 CA) 1984 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, OIL PUMP

5EA-15416-20-00

Unavailable

2

RING, RUBBER

33M-15449-00-00

$45.99

3

BOLT 1

33M-15481-00-00

Unavailable

4

COVER, OIL PUMP 2

5EA-15426-20-00

$94.99

5

SCREW, BINDING

98907-05016-00

$8.49

6

COVER, CRANKCASE L

36Y-15411-02-00

Unavailable

7

GASKET, CRANKCASE COVER 1

4CR-15451-00-00

$25.99

8

GASKET

3FA-15467-00-00

$6.99

9

COVER,CAP 2

1TX-15427-00-00

Unavailable

10

DAMPER, ENGINE MOUNT 1

36Y-15316-00-00

Unavailable

11

SCREW, HEXAGON

90153-06055-00

Unavailable

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

BOLT, SMALL FLANGE

95027-06040-00

$3.28

14

BOLT, SMALL FLANGE

95027-06050-00

$2.55

15

COVER, CRANKCASE R

99999-02157-00

Unavailable

16

GASKET, CRANKCASE COVER 2

36Y-15461-10-00

Unavailable

17

COVER, CAP

36Y-15417-10-00

Unavailable

18

RING, RUBBER

36Y-15449-00-00

Unavailable

19

GROMMET

36Y-15367-00-00

Unavailable

20

BREATHER 1

36Y-15346-00-00

Unavailable

21

GROMMET

4H7-15486-00-00

Unavailable

22

WASHER (4H7)

90209-06096-00

Unavailable

23

BOLT,SOCKET

91317-06012-00

Unavailable

24

PIN, DOWEL(3VD)

99530-10114-00

$2.55

25

. BOLT, FLANGE

95027-06020-00

Unavailable

26

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

27

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

28

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

29

PLUG, OIL

2H9-15363-00-00

Unavailable

30

O-RING(1KT)

93210-27778-00

Unavailable
