CARBURETOR

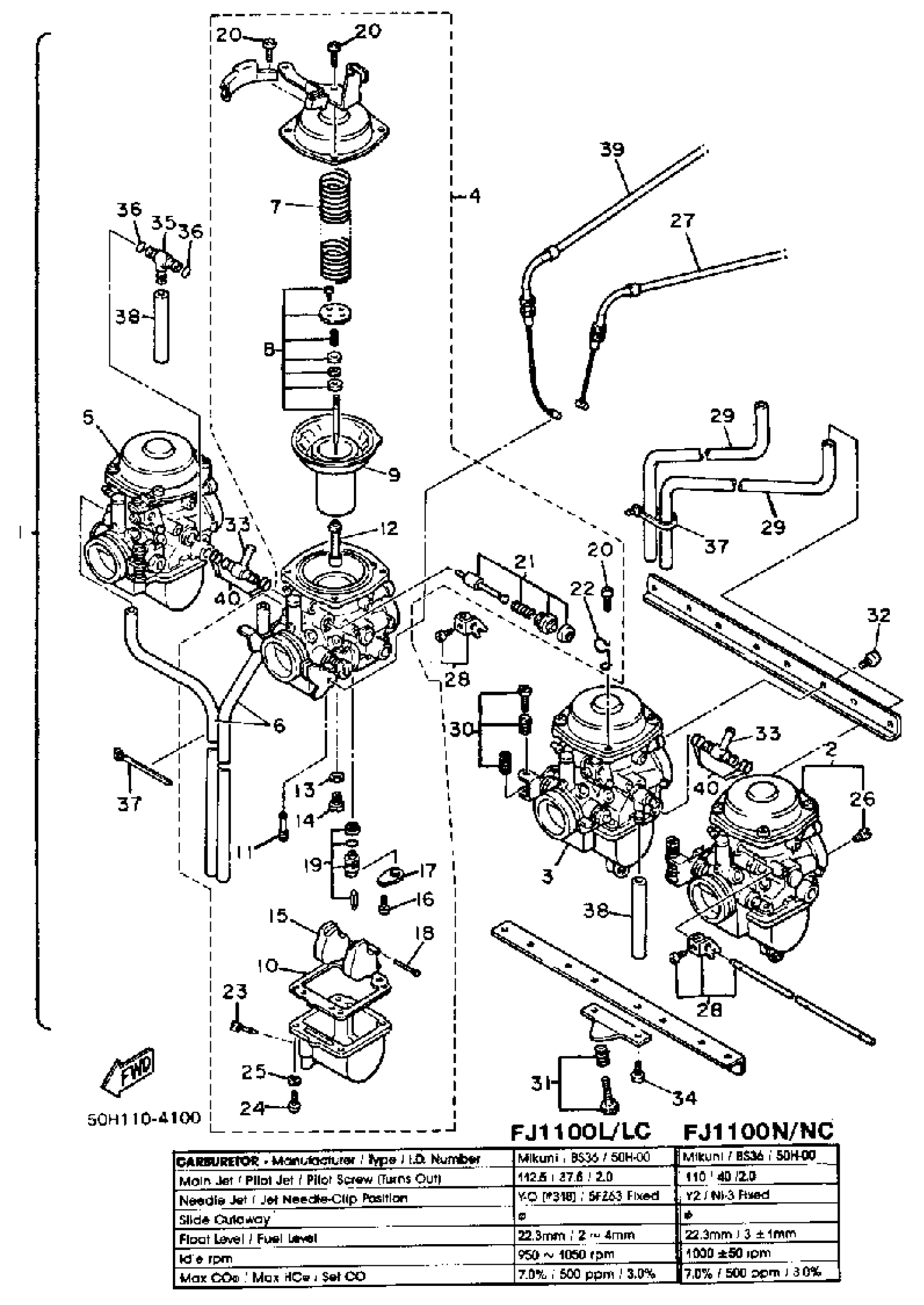

Yamaha FJ1100LC (FJ1100 CA) 1984 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(50H-14900-00-00)
Unavailable
1
UNAVAILABLE IN PRICE BOOK
(50H-14900-01-00)
Unavailable
2
CARBURETOR ASSEMBLY 1
(50H-14901-01-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(50H-14902-01-00)
Unavailable
4
CARBURETOR ASSEMBLY 3
(50H-14903-00-00)
Unavailable
4
CARBURETOR ASSEMBLY 3
(50H-14903-01-00)
Unavailable
5
CARBURETOR ASSEMBLY 4
(50H-14904-00-00)
Unavailable
5
CARBURETOR ASSEMBLY 4
(50H-14904-01-00)
Unavailable
7
.. SPRING, DIAPHRAGM
3G1-14933-00-00
Unavailable
7
SPRING, DIAPHRAGM
3Y6-14933-00-00
Unavailable
8
.. NEEDLE SET
47M-1490J-00-00
Unavailable
8
. NEEDLE SET
1TX-1490J-00-00
Unavailable
9
. DIAPHRAGM ASSEMBLY
36Y-14940-00-00
Unavailable
9
DIAPHRAGM ASSY
50H-14940-00-00
Unavailable
10
GASKET, FLOAT CHAMBER
3XW-14984-00-00
Unavailable
11
JET, PILOT (# 37.5)
4G0-14142-37-A0
Unavailable
12
.. NOZZLE, MAIN
16H-14941-90-00
Unavailable
12
NOZZLE, MAIN
50H-14941-92-00
Unavailable
13
WASHER,MAIN JET
137-14153-00-00
Unavailable
14
JET, MAIN (#110)
620-14231-22-A0
Unavailable
14
JET,MAIN #112.5
620-1423A-73-00
Unavailable
15
FLOAT
3H5-14985-00-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
. PLATE
2H0-14146-00-00
Unavailable
18
PIN, FLOAT
537-14186-00-00
Unavailable
19
NEEDLE VALVE SET
25G-14107-23-00
Unavailable
20
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
21
. STARTER SET
36Y-1410A-00-00
Unavailable
22
.. CLIP
25J-14937-00-00
Unavailable
23
PLUG, DRAIN
12R-14191-00-00
Unavailable
24
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
JET, MAIN (#155)
3G2-14231-31-00
Unavailable
26
JET, MAIN (#160)
3G2-14231-32-00
Unavailable
27
CABLE, THROTTLE 4
36Y-2631J-00-00
Unavailable
28
STARTER LEVER SET
36Y-1490L-00-00
Unavailable
29
HOSE (L1500)
90445-084J0-00
Unavailable
30
STOP SCREW SET
36Y-1490K-00-00
Unavailable
31
THROTTLE SCREW SET
36Y-14103-00-00
Unavailable
32
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
33
PIPE, STARTER CON
(36Y-14988-00-00)
Unavailable
34
SCREW, PAN
98507-06014-00
Unavailable
35
NIPPLE
17A-14251-00-00
Unavailable
36
O-RING
36Y-14147-00-00
Unavailable
37
CLIP, PIPE
35H-14139-00-00
Unavailable
38
HOSE
(50H-14987-00-00)
Unavailable
39
CABLE, THROTTLE 3
36Y-26313-00-00
Unavailable
40
O-RING
36Y-14147-00-00
Unavailable
