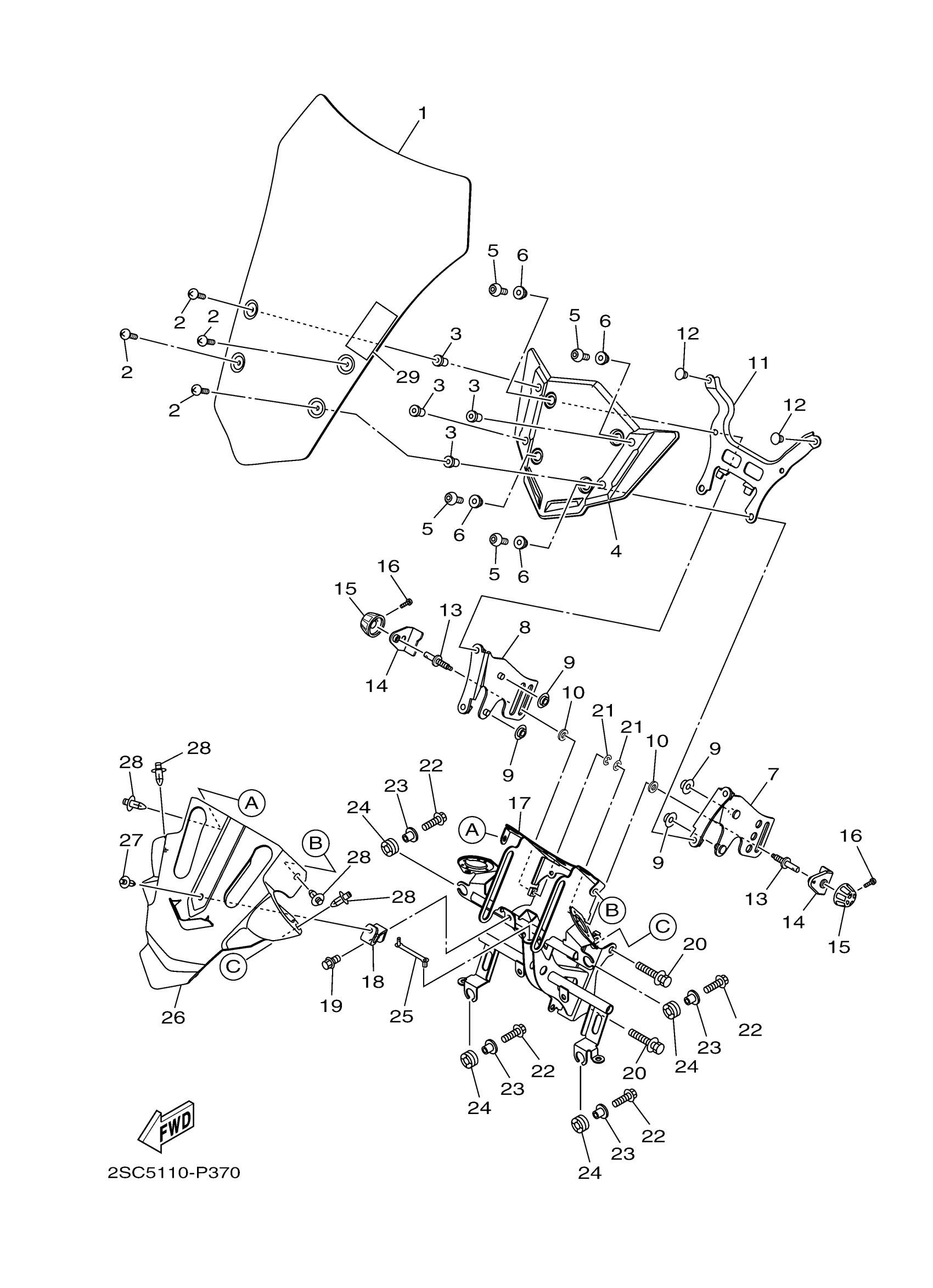

Yamaha FJ09HW (FJ09) 2SCN0 2017 WINDSHIELD Diagram

#

Description
Price

1

WINDSHIELD

2PP-28381-00-00

Unavailable

2

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

3

NUT

90179-05003-00

$5.60

4

COVER 1

2PP-84369-00-P0

$143.99

5

BOLT

90111-06029-00

$5.60

6

COLLAR

90387-06048-00

$8.49

7

STAY, SIDE 1

2PP-2831U-00-00

Unavailable

8

STAY, SIDE 1

2PP-2832U-00-00

Unavailable

9

BUSH

90386-07MA2-00

Unavailable

10

WASHER PLATE 122217250000

90202-07015-00

$8.49

11

STAY, SUPPORT 1

2PP-2831T-00-00

Unavailable

12

PLUG(7Y6)

90338-07157-00

$7.49

13

BOLT, LEG SHIELD

2PP-28331-00-00

$34.99

14

STAY, GUIDE 1

2PP-2831E-00-00

$4.68

15

KNOB

3P6-8432N-00-00

$9.99

16

SCREW, PAN HEAD(3HH)

98507-03010-00

Unavailable

17

STAY 1

2PP-28356-00-00

Unavailable

18

BRACKET 1

2PP-2836A-00-00

Unavailable

19

BOLT, FLANGE

95022-06010-00

Unavailable

20

BOLT, WITH WASHER

90119-08062-00

Unavailable

21

CIRCLIP(6L5)

99080-03600-00

Unavailable

22

BOLT, FLANGE

95817-06025-00

Unavailable

23

COLLAR 437216330000

90387-07391-00

Unavailable

24

DAMPER

3C3-83513-00-00

Unavailable

25

CLAMP

90464-09026-00

Unavailable

26

PANEL, INNER 3

2PP-2836M-00-00

Unavailable

27

RIVET

90269-05006-00

Unavailable

28

RIVET

90269-07007-00

Unavailable

29

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
