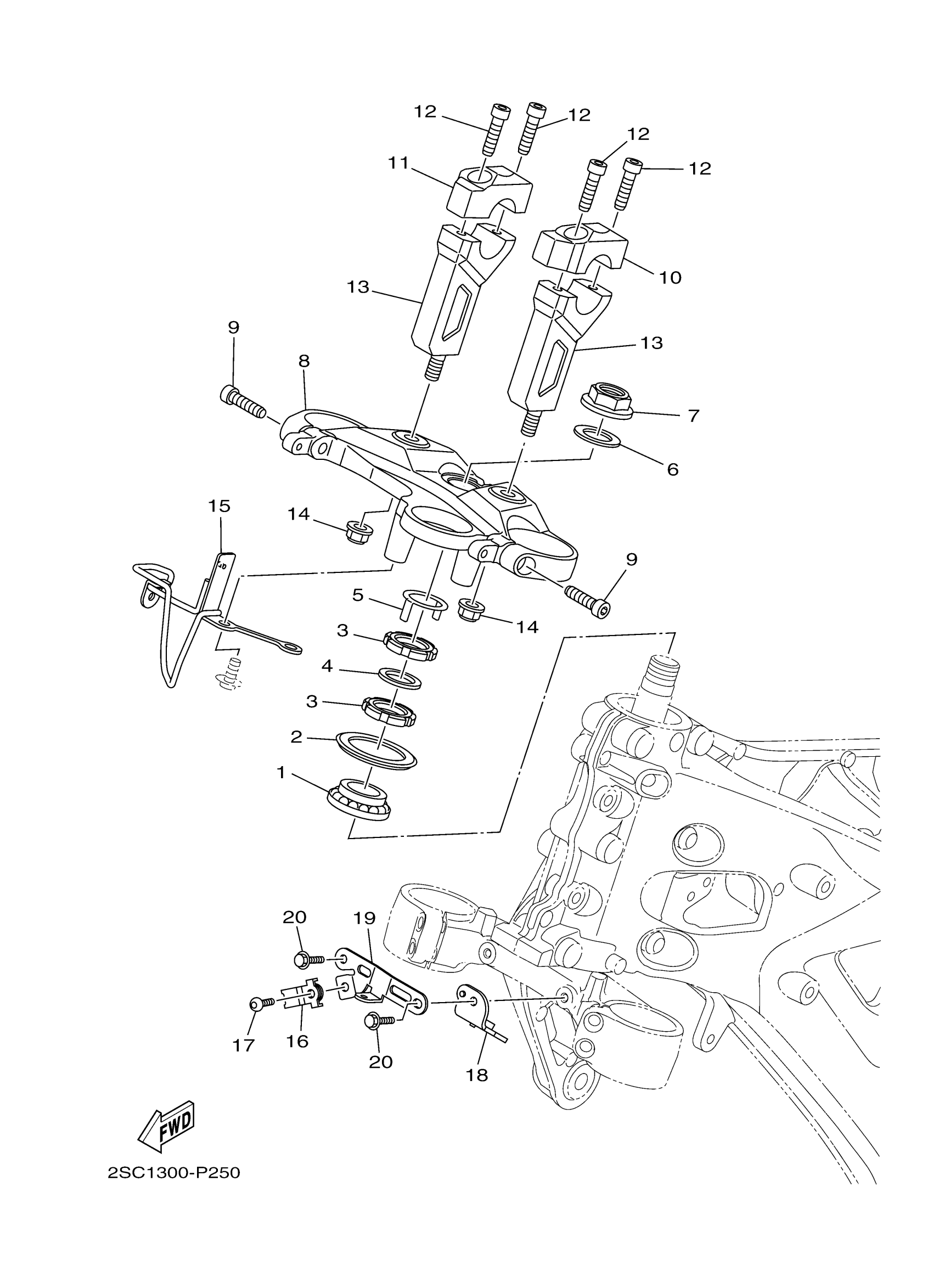

Yamaha FJ09HW (FJ09) 2SCN0 2017 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99931-00

$57.99

2

COVER, BALL RACE 1

5VX-23415-00-00

$18.49

3

NUT

90179-25004-00

$24.99

4

WASHER, PLATE (26H)

90202-26142-00

$9.49

5

WASHER, SPECIAL

26H-23418-01-00

$14.49

6

WASHER, PLATE

90201-22018-00

$5.60

7

NUT, SPECIAL

1RC-23393-00-00

$41.99

8

CROWN, HANDLE

1RC-23435-00-00

Unavailable

9

BOLT,SOCKET

91314-08030-00

$2.34

10

HOLDER, HANDLE UPP

2PP-23441-00-00

Unavailable

11

HOLDER, HANDLE UPP

2PP-2344A-00-00

Unavailable

12

BOLT,SOCKET

91314-08030-00

$2.34

13

HOLDER 1

2PP-24847-01-00

$60.99

14

NUT, S/L FLANGE

95602-10200-00

$4.82

15

GUIDE, CABLE

2PP-23389-00-00

Unavailable

16

CLAMP

90461-10008-00

Unavailable

17

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

18

BRACKET, HORN

1RC-23377-00-00

Unavailable

19

BRACKET 1

2PP-2334G-00-00

Unavailable

20

BOLT, FLANGE

95817-06016-00

Unavailable
