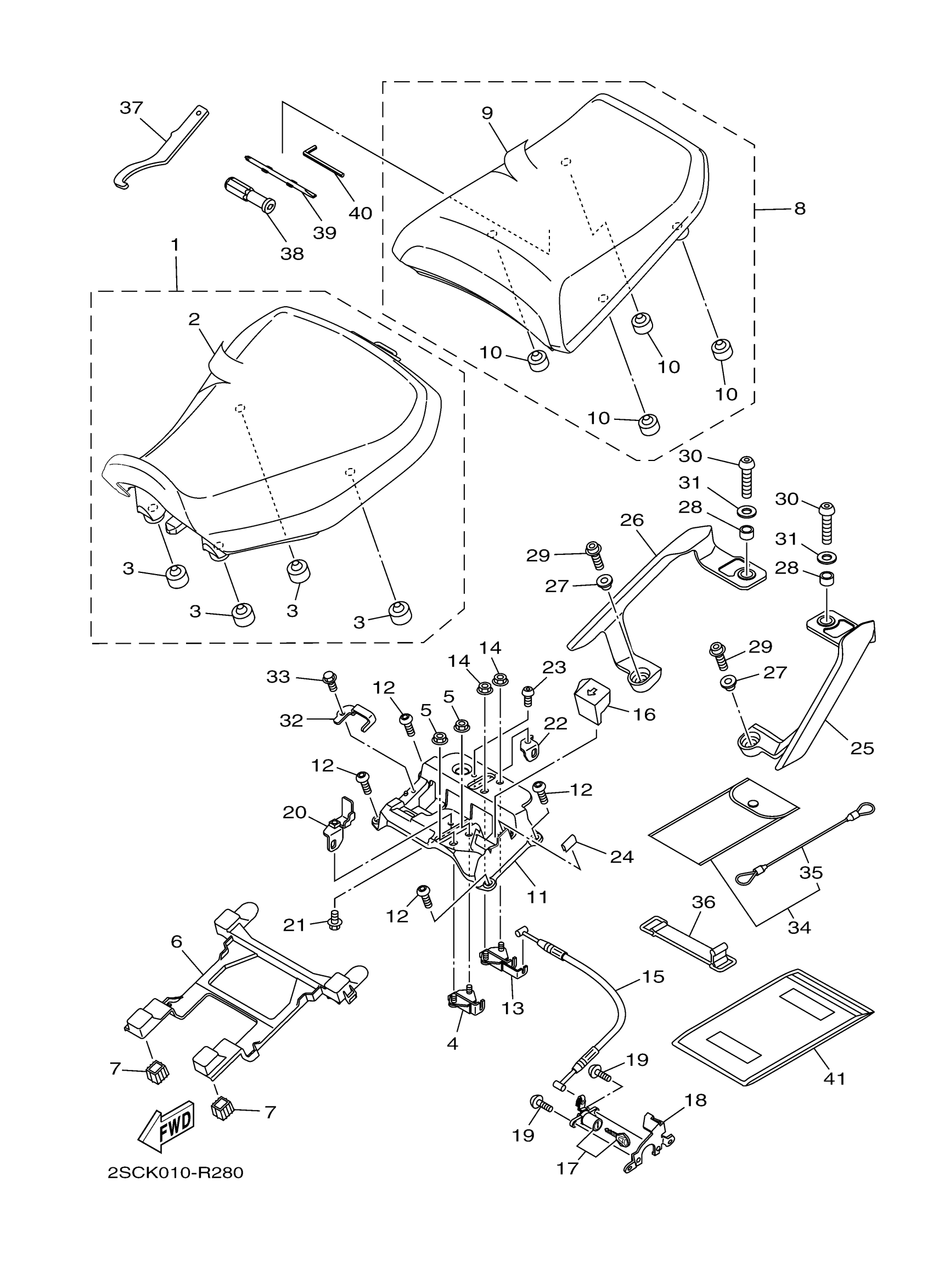

Yamaha FJ09HW (FJ09) 2SCN0 2017 SEAT Diagram
#
1
SINGLE SEAT ASSY
2PP-24710-01-00
Unavailable
2
SEAT COVER COMP.
2PP-2470F-00-00
Unavailable
9
SEAT COVER COMP. ,2
2PP-2470H-00-00
Unavailable
11
BRACKET, SEAT LOCK
2PP-2478X-01-00
Unavailable
16
CAP
2SC-2482H-00-00
Unavailable
17
SEAT LOCK ASSY
3CK-W2470-00-00
Unavailable
18
PLATE, LOCK
2PP-2479K-00-00
Unavailable
19
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
20
BRACKET, SEAT LEVER 1
2PP-2475H-00-00
Unavailable
21
BOLT, FLANGE
95817-06010-00
Unavailable
22
BRACKET, SEAT LEVER 2
2PP-2475J-00-00
Unavailable
23
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
24
MOLD, SEAT
34B-24785-00-00
Unavailable
25
ASSIST, GRIP
2PP-2474A-00-P0
Unavailable
26
ASSIST,GRIP 2
2PP-2474W-00-P0
Unavailable
27
COLLAR
90387-08016-00
Unavailable
28
COLLAR
90387-10010-00
Unavailable
29
BOLT (3LD)
90109-087F1-00
Unavailable
30
BOLT, BUTTON HEAD
92017-10040-00
Unavailable
31
WASHER, PLAIN(3BM)
92907-10200-00
Unavailable
32
BRACKET, HELMET HA
2PP-2115J-00-00
Unavailable
33
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
34
TOOL KIT
2PP-28100-01-00
Unavailable
35
HELMET HANGER ASSY
20S-21308-00-00
Unavailable
36
BAND, BATTERY
3TJ-82131-00-00
Unavailable
37
SPANNER, SPECIAL
1RC-28135-00-00
Unavailable
38
GRIP, DRIVER
2H7-28151-00-00
Unavailable
39
DRIVER
2GV-28152-00-00
Unavailable
40
WRENCH, HEXAGON 8
23P-28164-00-00
Unavailable
41
POUCH
4KG-28186-11-00
Unavailable
