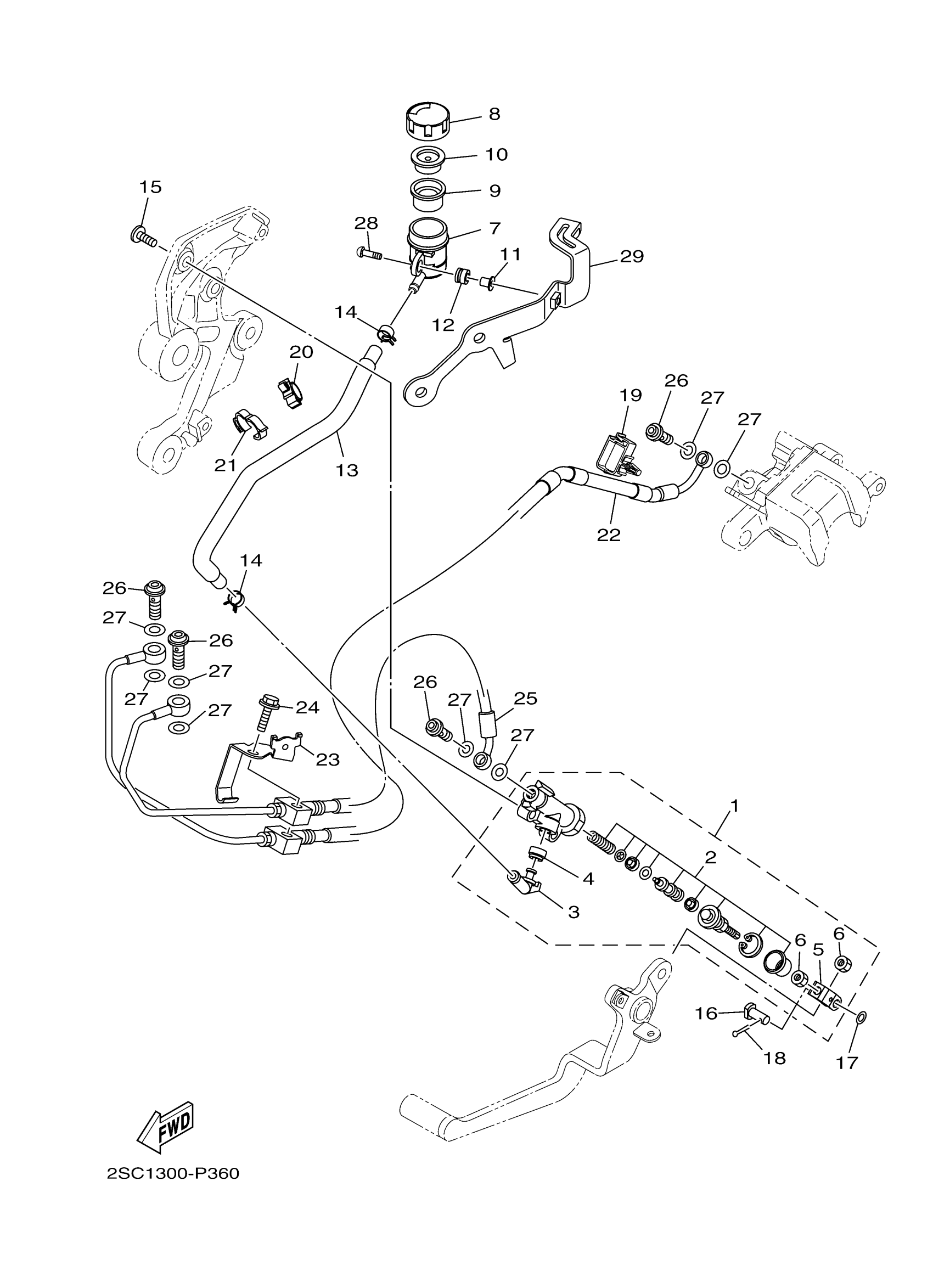

Yamaha FJ09HW (FJ09) 2SCN0 2017 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDE

56P-2583V-01-00

$133.99

2

CYLINDER KIT, MASTER

56P-25808-50-00

$103.99

3

JOINT

2D1-2582A-01-00

$5.49

4

O-RING

4BP-2585F-01-00

Unavailable

5

JOINT

4BP-27222-02-00

$29.99

6

NUT

90170-08010-00

$8.49

7

TANK, RESERVOIR

14B-25894-00-00

$63.99

8

CAP, RESERVOIR

2C0-25852-00-00

$7.99

9

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

10

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

11

COLLAR

90387-05028-00

$5.60

12

GROMMET

2C0-26326-00-00

$6.99

13

HOSE, RESERVOIR

2PP-25895-00-00

$23.99

14

CLIP

90467-120A3-00

$7.49

15

BOLT,HEX. SOCKET BUTTON

90111-08038-00

$10.49

16

PIN, CLEVIS

90240-08005-00

Unavailable

17

WASHER, PLATE

90201-08066-00

Unavailable

18

PIN, COTTER (648)

91490-20015-00

Unavailable

19

CLAMP

90464-20023-00

Unavailable

20

CLAMP

90464-18007-00

Unavailable

21

CLAMP

90464-16003-00

Unavailable

22

HOSE, BRAKE 5

2DR-2581K-01-00

Unavailable

23

BRACKET, REFLECTOR

2DR-85142-00-00

Unavailable

24

BOLT, FLANGE

90105-06091-00

Unavailable

25

HOSE, BRAKE 4

2DR-2581J-01-00

Unavailable

26

BOLT, UNION

90401-10172-00

Unavailable

27

GASKET

90430-10005-00

Unavailable

28

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

29

HOLDER, RESERVE TA

2PP-2582E-00-00

Unavailable
