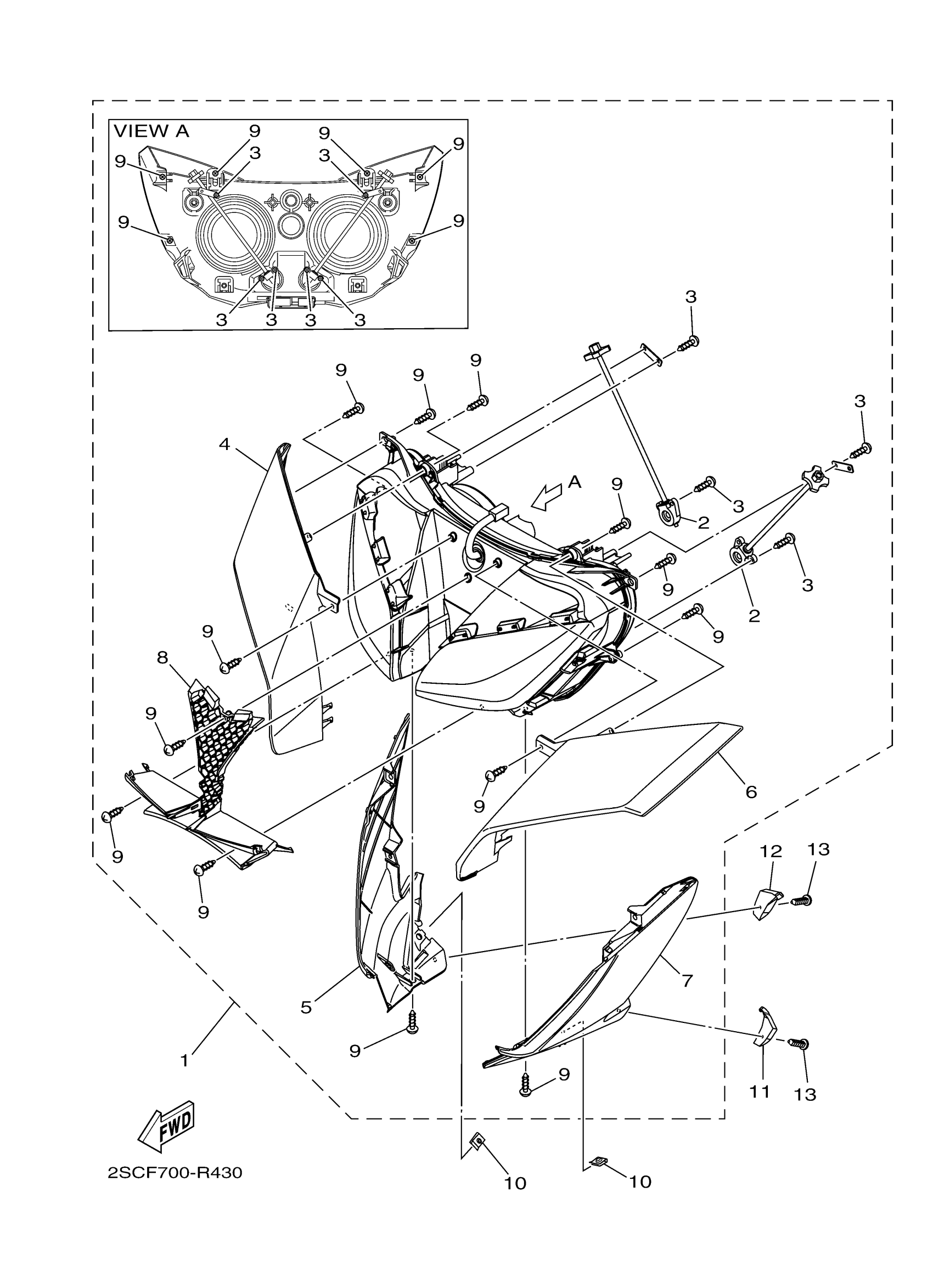

Find the part on the Headlight diagram for your 2016 Yamaha FJ09 (FJ09GS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha FJ09 (FJ09GS) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSY

2PP-84300-30-00

—
Out of stock

2

GEAR UNIT ASSY

2SC-8430M-00-00

—
Out of stock

3

SCREW

2SC-84526-00-00

1
Out of stock

4

COVER, A

2SC-84196-30-00

—
Out of stock

5

COVER, B

2SC-84544-00-00

—
Out of stock

6

COVER, C

2SC-84396-30-00

—
Out of stock

7

COVER, D

2SC-84797-00-00

1
Out of stock

8

COVER, E

2SC-84144-00-00

—
Out of stock

9

SCREW

2SC-84526-00-00

1
Out of stock

10

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

11

DAMPER, HEADLIGHT

2PP-84366-00-00

—
Out of stock

12

DAMPER, HEADLIGHT

2PP-84367-00-00

—
Out of stock

13

RIVET

90269-03002-00

1

$1.46

In stock
