2016 Yamaha FJ09 (FJ09GS) Electrical 3 Diagram

← All diagrams

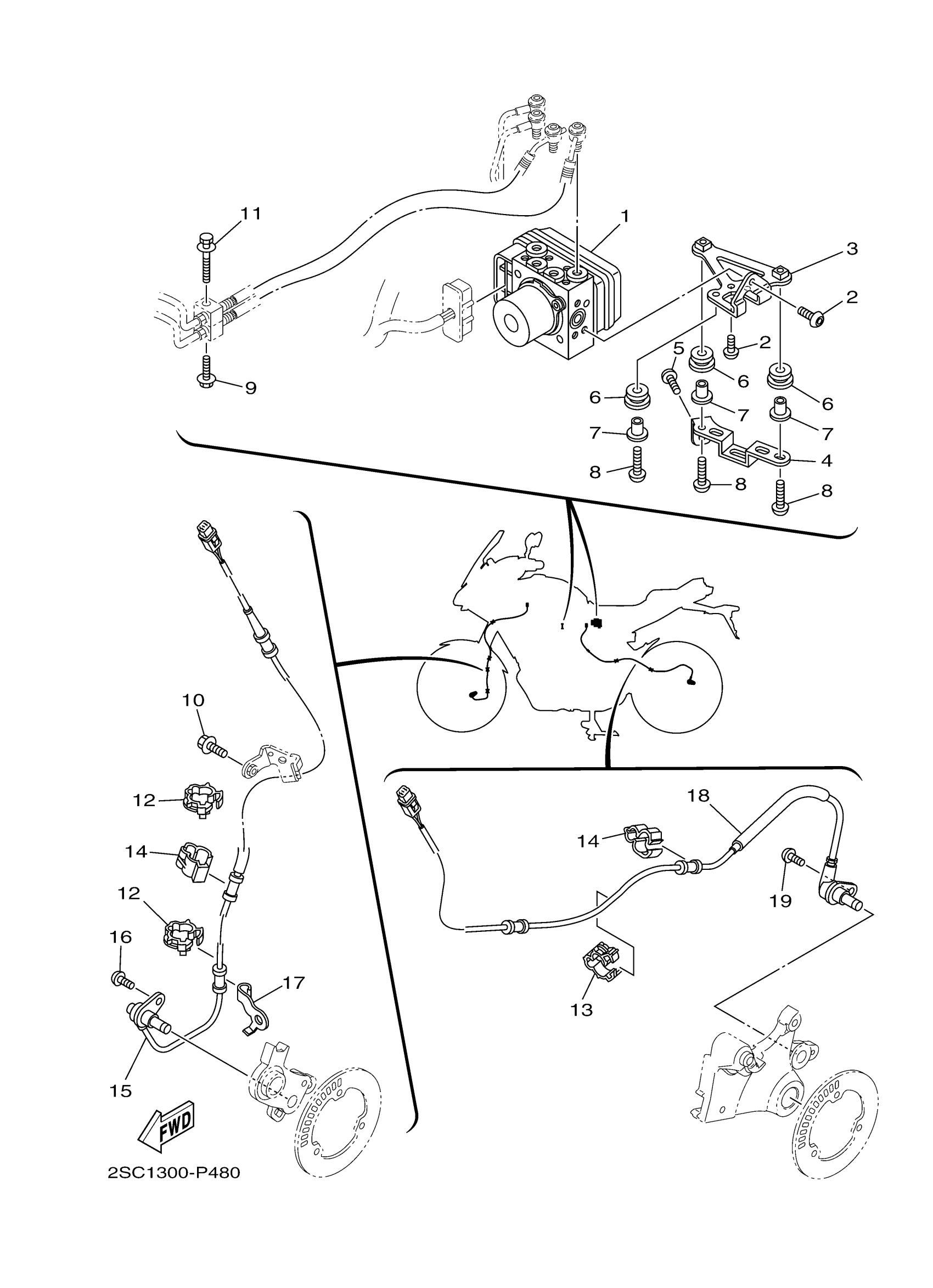

Find the part on the Electrical 3 diagram for your 2016 Yamaha FJ09 (FJ09GS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha FJ09 (FJ09GS) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HYDRAULIC UNIT ASSY

2SC-85930-05-00

1
Out of stock

2

BOLT, BUTTON HEAD

92012-06010-00

1
Out of stock

3

BRACKET, UNIT

2DR-85991-00-00

—
Out of stock

4

BRACKET

2DR-85542-00-00

—
Out of stock

5

BOLT, BUTTON HEAD

92012-06010-00

1
Out of stock

6

GROMMET(4FU)

90480-13567-00

1
Out of stock

7

COLLAR

90387-06160-00

—
Out of stock

8

BOLT, BUTTON HEAD

92012-06020-00

1
Out of stock

9

BOLT, FLANGE

90105-06148-00

1
Out of stock

10

BOLT, FLANGE

95817-06016-00

1
Out of stock

11

BOLT, WITH WASHER(6G8)

90119-06M55-00

—
Out of stock

12

CLAMP

90464-12013-00

1
Out of stock

13

CLAMP

90464-14003-00

—
Out of stock

14

CLAMP(4GL)

90464-10233-00

1
Out of stock

15

WHEEL SENSOR ASSY, FRONT

2DR-85970-01-00

—
Out of stock

16

BOLT, BUTTON HEAD(4NK)

92014-06014-00

—
Out of stock

17

HOLDER, CABLE 1

2DR-23318-00-00

—
Out of stock

18

WHEEL SENSOR ASSY, REAR

2DR-85980-02-00

—
Out of stock

19

BOLT, BUTTON HEAD(4NK)

92014-06014-00

—
Out of stock
