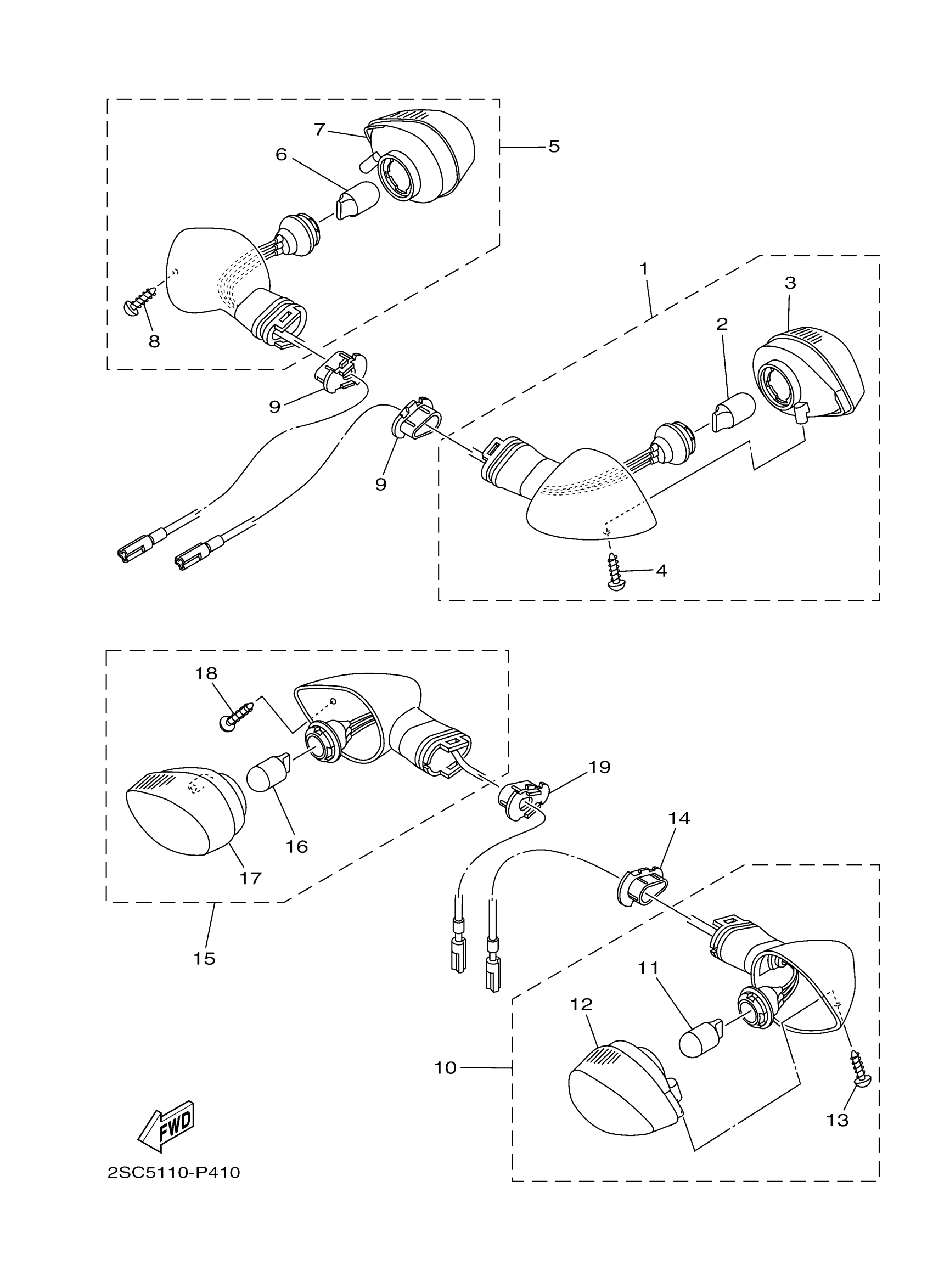

Yamaha FJ09GS (FJ09) 2SCG0 2016 FLASHER LIGHT Diagram

#

Description
Price

1

REAR FLASHER LIGHT ASSY 1

14B-83330-11-00

$55.99

2

BULB, FLASHER

5PW-83331-00-00

$14.49

3

LENS COMP

5PW-8334A-10-00

$33.99

4

.. SCREW, TAPPING

97707-04012-00

Unavailable

5

REAR FLASHER LIGHT

14B-83340-11-00

Unavailable

6

BULB, FLASHER

5PW-83331-00-00

$14.49

7

LENS COMP

5PW-8333A-10-00

$33.99

8

.. SCREW, TAPPING

97707-04012-00

Unavailable

9

STAY, FLASHER 1

5PW-83318-00-00

$7.99

10

FRONT FLASHER LIGH

32C-83310-02-00

Unavailable

11

BULB, FLASHER

5GJ-83331-00-00

$15.49

12

LENS COMP

5PW-8333A-10-00

$33.99

13

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

14

STAY, FLASHER 1

5PW-83318-00-00

$7.99

15

FRONT FLASHER LIGH

32C-83320-02-00

$48.99

16

BULB, FLASHER

5GJ-83331-00-00

$15.49

17

LENS COMP

5PW-8334A-10-00

$33.99

18

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

19

STAY, FLASHER 1

5PW-83318-00-00

$7.99
