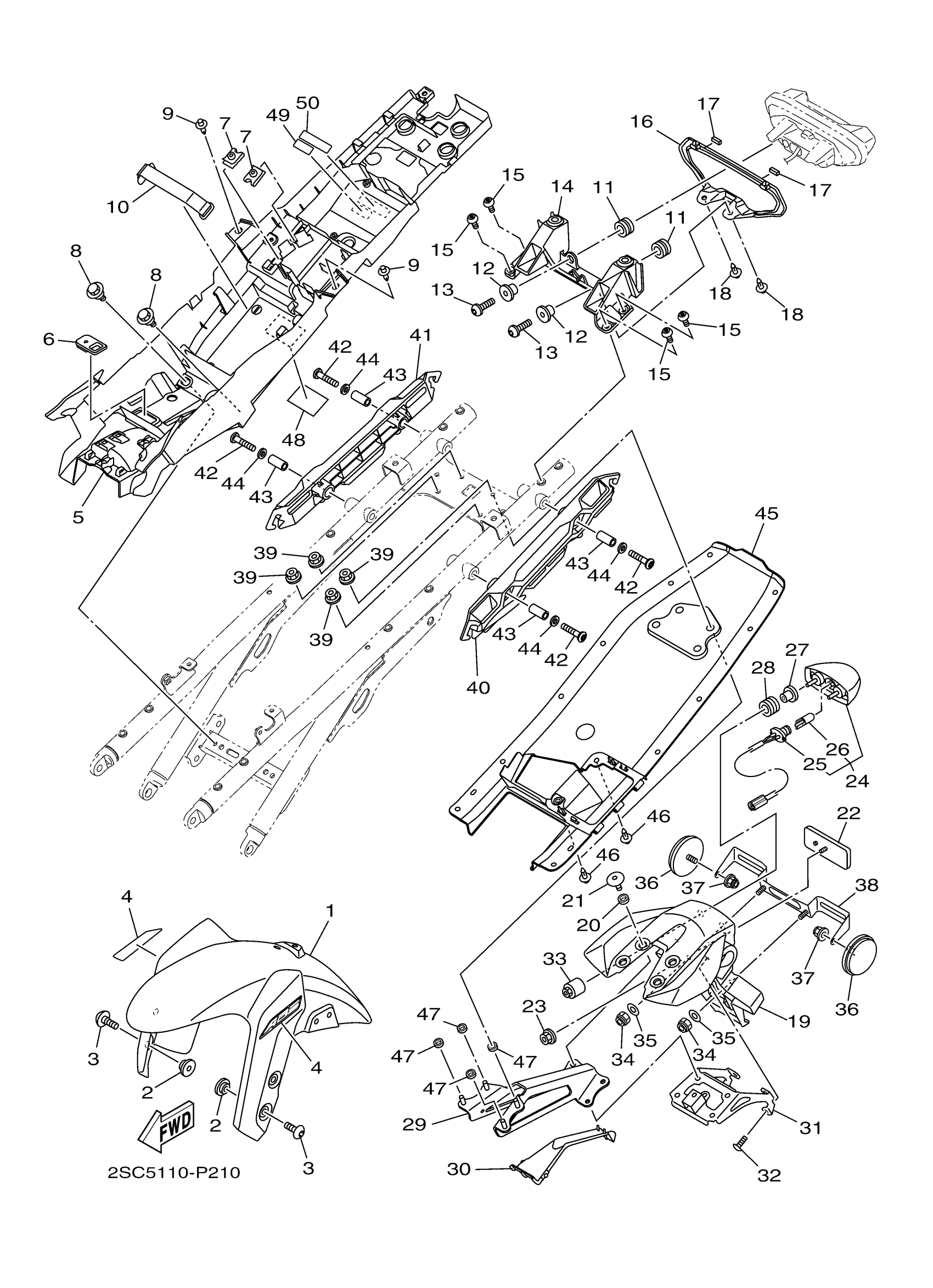

Yamaha FJ09GS (FJ09) 2SCG0 2016 FENDER Diagram
#
5
BOX, BATTERY 1
2PP-8212B-00-00
Unavailable
6
PLUG, BLIND
2DR-26199-00-00
Unavailable
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
16
COVER, REAR FENDER
2PP-2163A-00-00
Unavailable
17
DAMPER
1RC-21747-00-00
Unavailable
19
GUARD, MUD
1RC-21629-01-00
Unavailable
20
COLLAR
90387-06106-00
Unavailable
21
BOLT
90111-06061-00
Unavailable
22
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
23
NUT, S/L FLANGE
95607-05200-00
Unavailable
24
LICENCE LIGHT ASSY
1WS-84740-00-00
Unavailable
25
CORD, LICENCE LIGH
1WS-84547-00-00
Unavailable
26
BULB
1TP-84347-00-00
Unavailable
27
COLLAR
90387-05042-00
Unavailable
28
GROMMET
90480-11009-00
Unavailable
29
STAY 1
2PP-2164F-00-00
Unavailable
30
COVER, REAR FENDER
2PP-2163E-01-00
Unavailable
31
STAY, PLATE
2PP-21682-00-00
Unavailable
32
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
33
WEIGHT
1RC-2622H-00-00
Unavailable
34
NUT, SELF-LOCKING
95617-06100-00
Unavailable
35
WASHER, PLAIN (646)
92990-06600-00
Unavailable
36
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
37
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
38
BRACKET, LICENSE
1RC-84751-10-00
Unavailable
39
NUT, U FLANGE
95604-06200-00
Unavailable
40
STAY 3
2PP-2164H-00-00
Unavailable
41
STAY 4
2PP-2164J-00-00
Unavailable
42
SCREW(1KH)
90149-08220-00
Unavailable
43
COLLAR
90387-08106-00
Unavailable
44
WASHER(6TC)
92907-08200-00
Unavailable
45
COVER, REAR FENDER
2PP-21651-01-00
Unavailable
47
COLLAR
90387-06302-00
Unavailable
48
LABEL, TIRE
14B-21668-01-00
Unavailable
49
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
50
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
