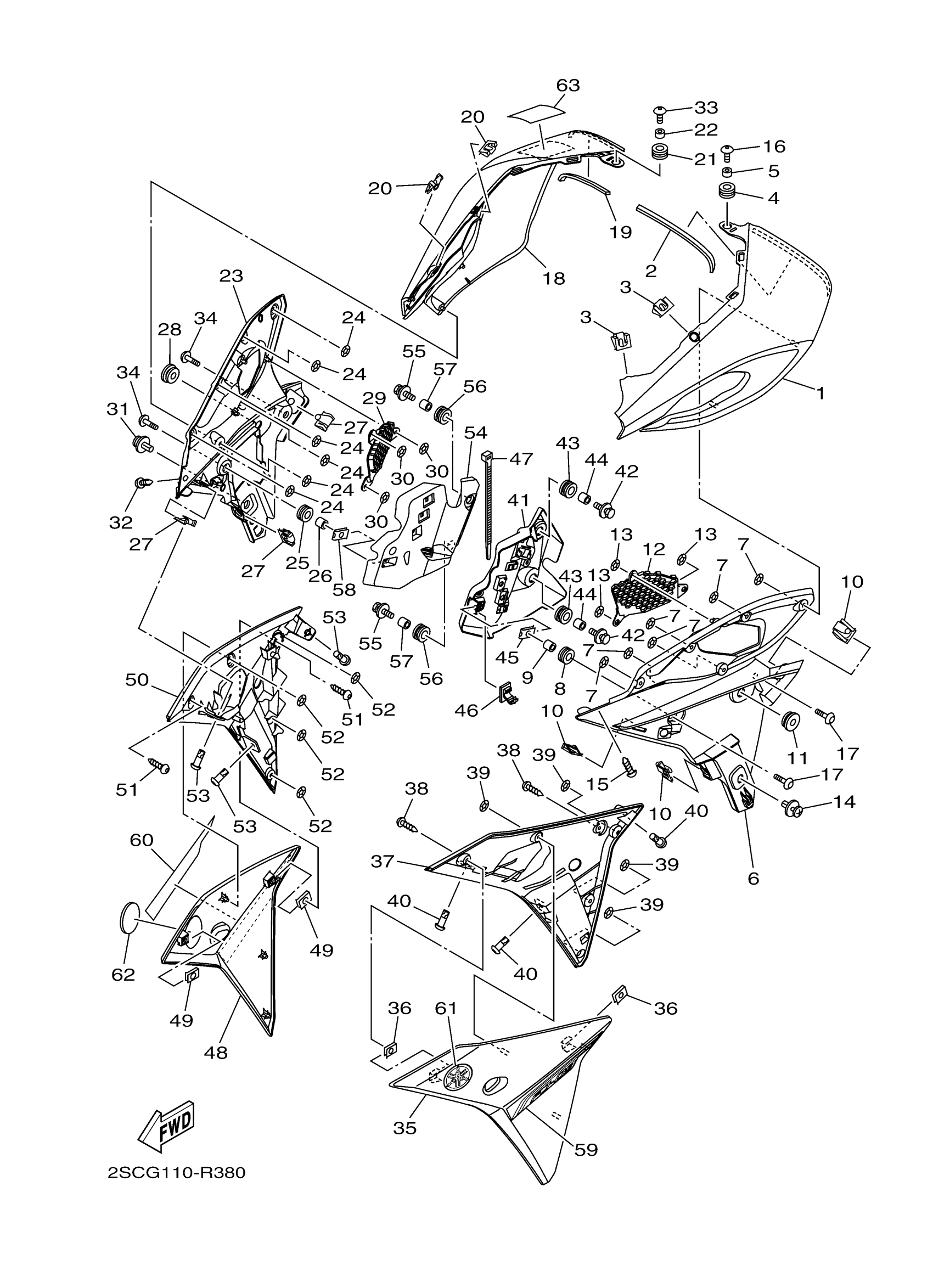

Yamaha FJ09GS (FJ09) 2SCG0 2016 COWLING Diagram
#
6
PANEL, INNER 1
2PP-2836K-00-00
Unavailable
16
BOLT
90111-05007-00
Unavailable
17
BOLT,HEX. SOCKET BUTTON
90111-05026-00
Unavailable
18
COVER 2
2PP-28229-01-P3
Unavailable
23
PANEL, INNER 2
2PP-2836L-00-00
Unavailable
29
GRILL, AIR INTAKE
2PP-2837R-00-00
Unavailable
33
BOLT
90111-05007-00
Unavailable
34
BOLT,HEX. SOCKET BUTTON
90111-05026-00
Unavailable
35
PANEL 1
2PP-2835U-00-P0
Unavailable
36
NUT, SPRING(1YT)
90183-05042-00
Unavailable
37
PANEL, CONSOLE 1
2PP-2837L-00-00
Unavailable
40
HEAD
14B-28386-00-00
Unavailable
41
BRACKET 5
2PP-2836H-01-00
Unavailable
42
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
43
GROMMET
90480-14003-00
Unavailable
44
COLLAR
90387-06057-00
Unavailable
45
NUT, SPRING
90183-050A6-00
Unavailable
46
CLAMP(3YL)
90464-25160-00
Unavailable
47
CLAMP
90465-15011-00
Unavailable
48
PANEL 2
2PP-2835V-00-P0
Unavailable
49
NUT, SPRING(1YT)
90183-05042-00
Unavailable
50
PANEL, CONSOLE 2
2PP-2837M-00-00
Unavailable
53
HEAD
14B-28386-00-00
Unavailable
54
BRACKET 6
2PP-2836J-01-00
Unavailable
55
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
56
GROMMET
90480-14003-00
Unavailable
57
COLLAR
90387-06057-00
Unavailable
58
NUT, SPRING
90183-050A6-00
Unavailable
59
GRAPHIC 1
2SC-28391-10-00
Unavailable
60
GRAPHIC 2
2SC-28392-10-00
Unavailable
61
EMBLEM
1RC-2413B-02-00
Unavailable
62
EMBLEM
1RC-2413B-02-00
Unavailable
63
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
